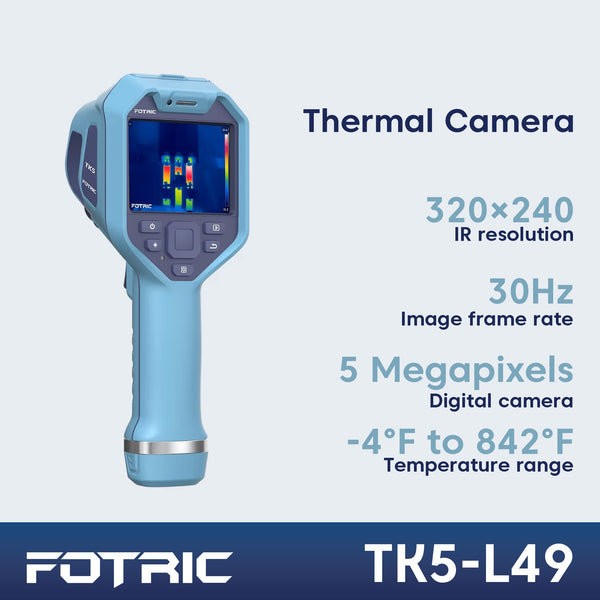

FOTRIC TK5 Thermal Imaging Camera
The FOTRIC TK5 is a professional handheld thermal camera designed to help technicians, inspectors, and advanced DIY users quickly locate electrical faults, equipment overheating, building energy loss, and other hidden temperature-related problems.
True 320 × 240 Thermal Imaging with 40mK SensitivityThe TK5 captures detailed thermal images with 76,800 native infrared pixels. Its 40mK thermal sensitivity reveals temperature differences as small as 0.04°C, while the 12μm detector and 30Hz frame rate deliver clear, smooth thermal imaging for real-time inspections.
Wide Field of View for Faster InspectionsA 49° × 37° field of view captures more of the target in a single image, making it easier to inspect electrical panels, building surfaces, mechanical rooms, HVAC equipment, and photovoltaic systems. The 2.67 mrad spatial resolution provides an effective balance between coverage and detail.
Built for Electrical, HVAC, Building, Solar, and Industrial InspectionsIdentify abnormal heat patterns in electrical panels, wiring, connections, motors, bearings, and other operating equipment. Inspect HVAC performance, insulation gaps, moisture-related thermal patterns, and areas of energy loss. The TK5 can also help detect temperature irregularities in photovoltaic modules, industrial machinery, floor-heating systems, and household appliances.
Advanced On-Device Measurement and AnalysisPerform detailed analysis directly on the camera using up to 20 spot, 10 line, and 10 area measurements. Adjustable emissivity, ambient temperature, reflected temperature, and IR-window transmission settings help improve measurement reliability across different materials and inspection environments.
Multiple Image Modes for Faster Problem LocationChoose from Infrared, T-DEF Fusion, Picture-in-Picture, and Digital Camera modes. T-DEF combines the 5MP visible image with the thermal image and supports transparency adjustment from 0% to 100%, helping users match thermal abnormalities with the correct physical component.
T-TWB Technology for Clearer Thermal ImagesT-TWB automatically optimizes the thermal color scale based on the scene’s temperature distribution. Six color palettes and customizable temperature alarms make abnormal heat patterns easier to recognize and interpret during inspections.
Rugged, Portable, and Ready for Field WorkThe TK5 features IP54 protection and 2-meter drop resistance tested to IEC 60068-2-32. Its 3.5-inch IPS touchscreen and 5MP visible camera support clear viewing and documentation in different working environments. Weighing only 0.72 kg (1.59 lb), it is easy to carry throughout the workday.
Replaceable Battery, Professional Reporting, and 1-Year WarrantyThe removable 5000mAh lithium-ion battery provides more than 4 hours of continuous operation and supports USB-C charging, reaching a full charge in approximately 2.5 hours. Save radiometric JPG images to the included 32GB TF card and use FOTRIC AnalyzIR software for advanced analysis, documentation, and professional report generation. The complete unit is backed by a 1-year warranty.
€829,99
FOTRIC EU Official Store
