FOTRIC TD2e Acoustic Imager

Regular price: €1.039,99
Sale price: €1.039,99
Regular price

✓ Prices include local EU VAT Free EU shipping

Limited-Time Offer

Up to 20% OFF

Automatically applied at checkout No code needed

Package:

Standard Professional Kit

Product variants:

Quantity:

Free Shipping

30-Day Return Policy

1-Year Warranty

24/7 Customer Support

Visualize Sound and Locate Problems Faster

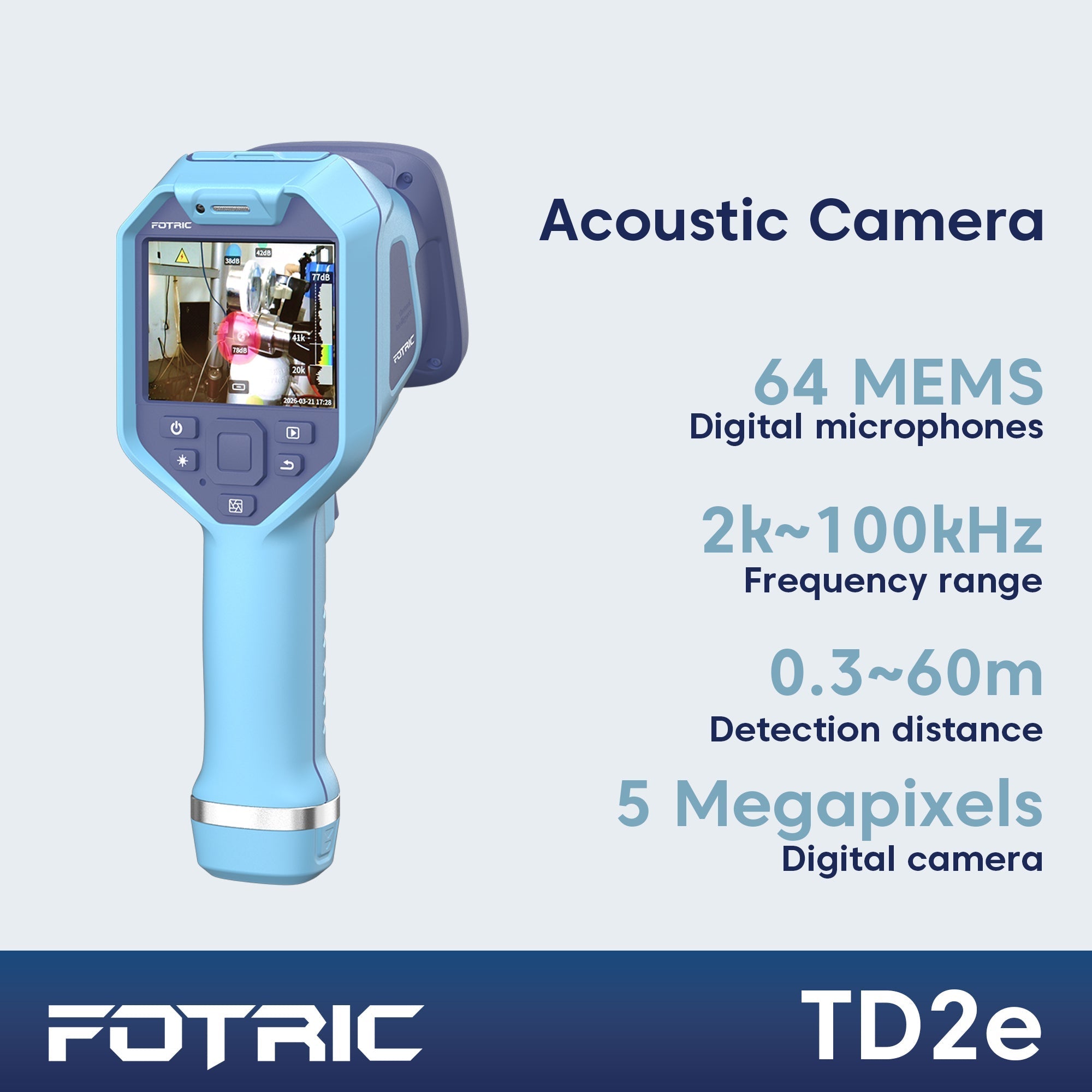

The FOTRIC TD2e features a 64-MEMS microphone array and advanced beamforming technology. It captures audible and ultrasonic signals from 2 kHz to 100 kHz and overlays the sound source on a 5MP visible image, helping you locate leaks and unusual noises from 0.3 to 60 meters away.

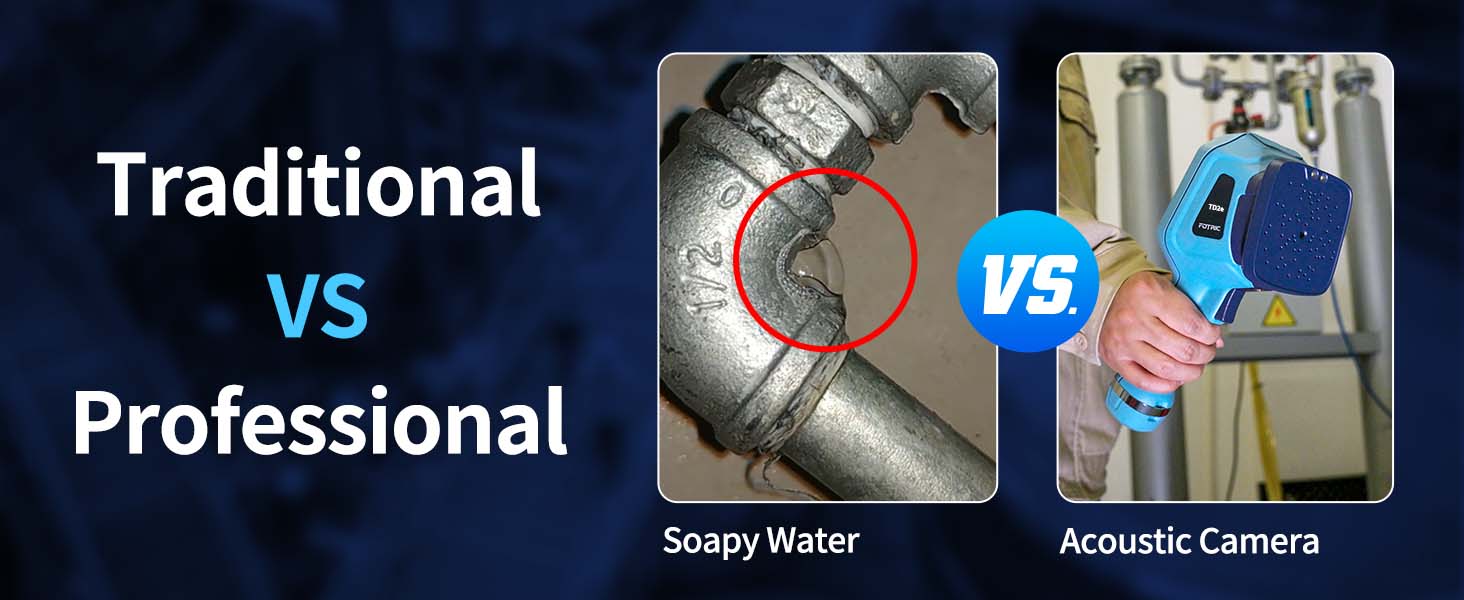

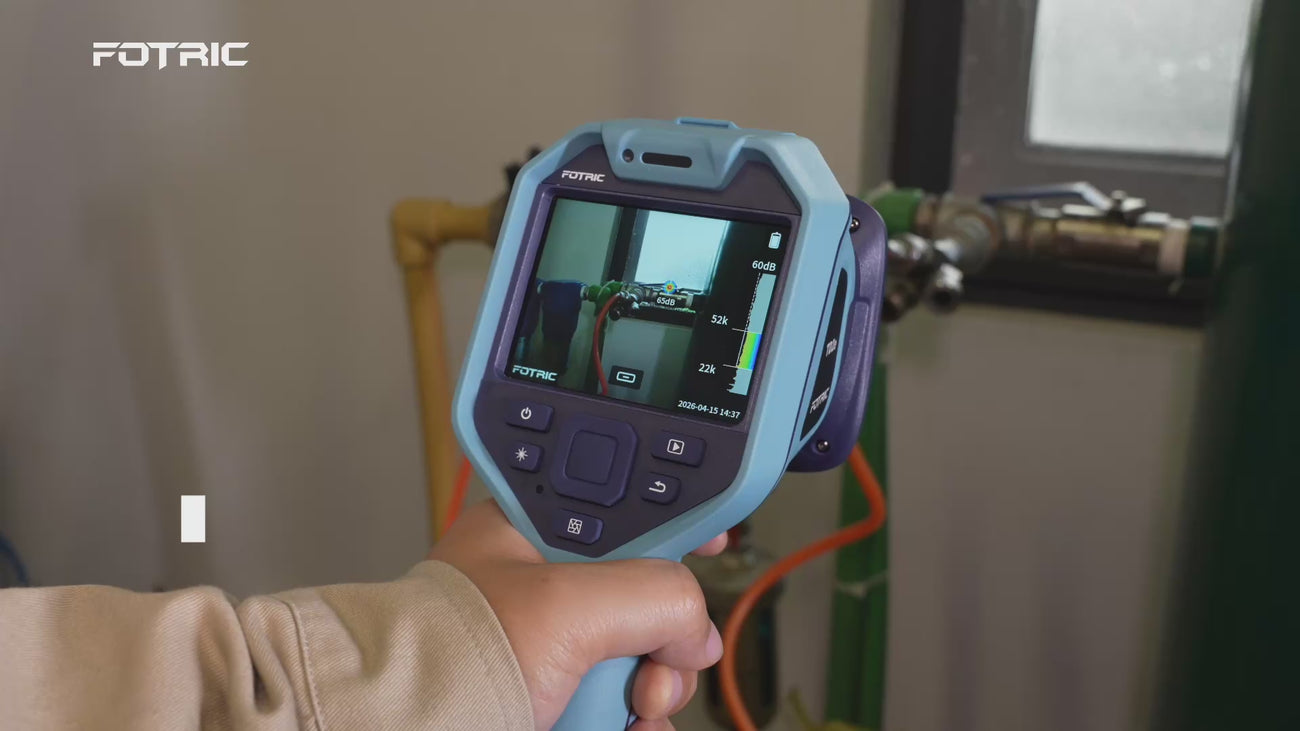

Quickly Detect Air and Vacuum Leaks
Easily inspect compressed-air lines, vacuum systems, pneumatic valves, cylinders, fittings, and connectors. The TD2e helps identify potential leaks faster, reducing energy waste, inspection time, and unexpected operating costs.
Find Unusual Noises in Multiple Applications
Locate abnormal sounds from vehicles, home appliances, HVAC systems, bearings, motors, loose connections, and other mechanical components. It is suitable for home and DIY diagnostics, automotive troubleshooting, professional maintenance, and small-business inspections.
Clear Acoustic Imaging in Noisy Environments

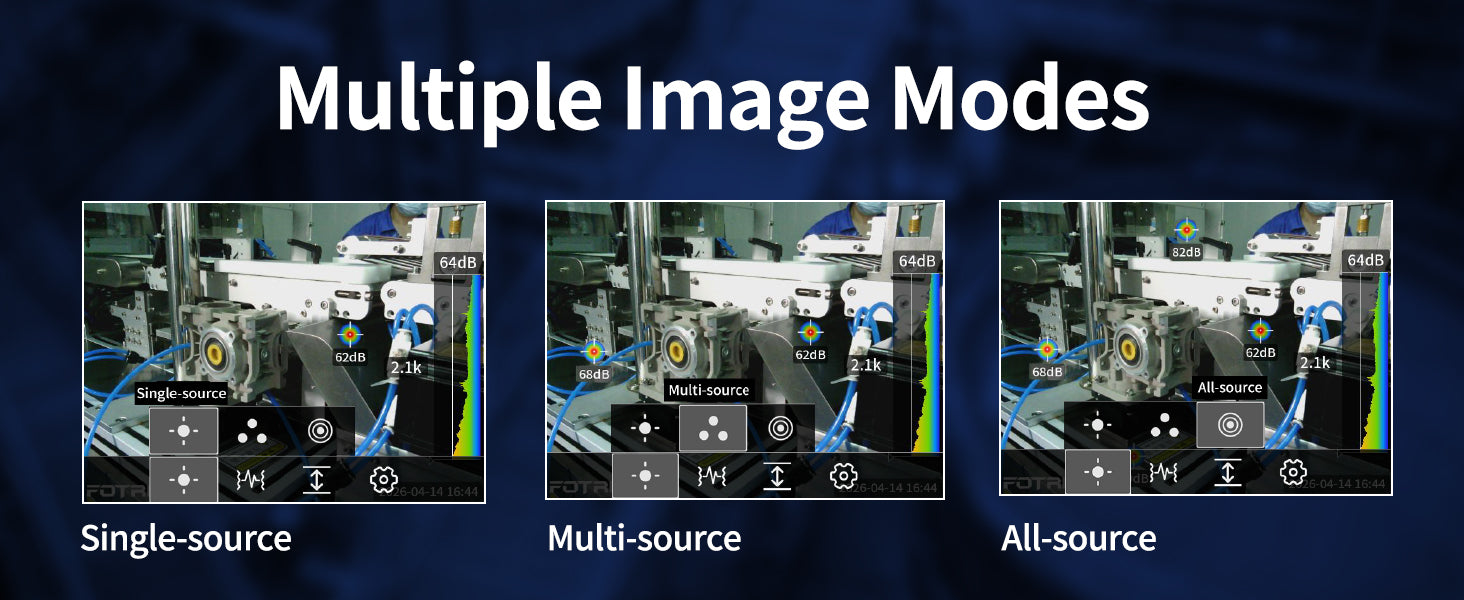

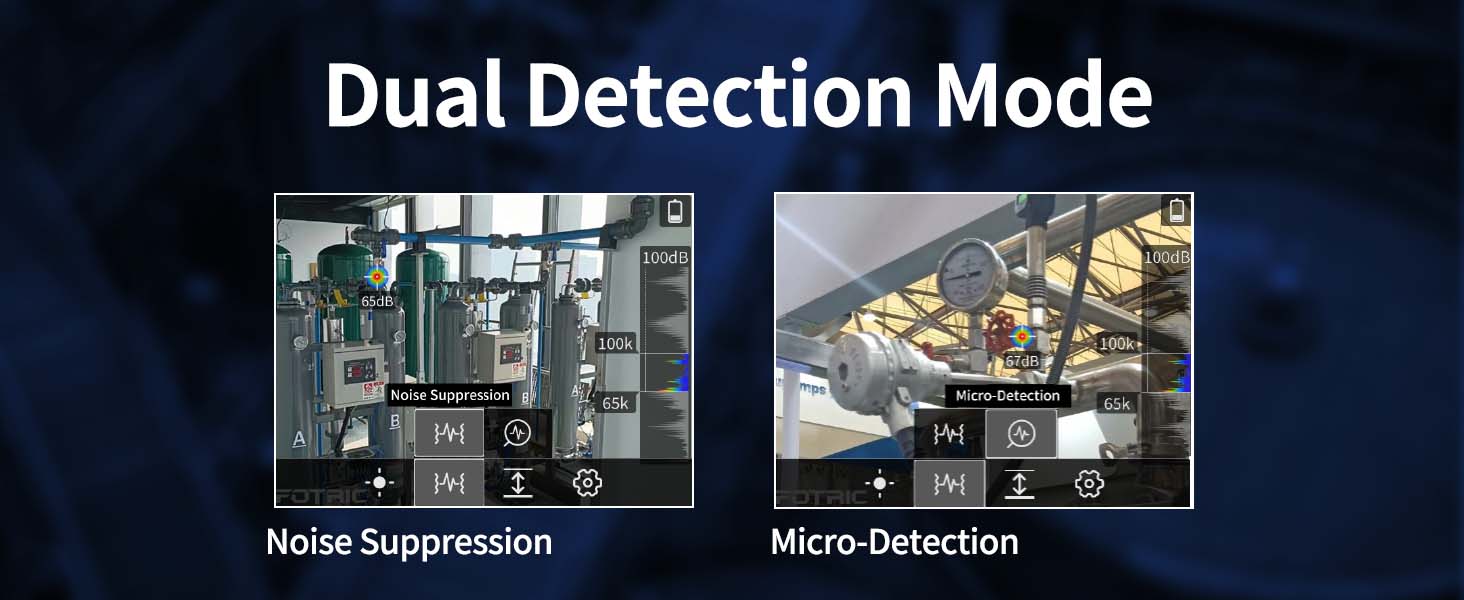

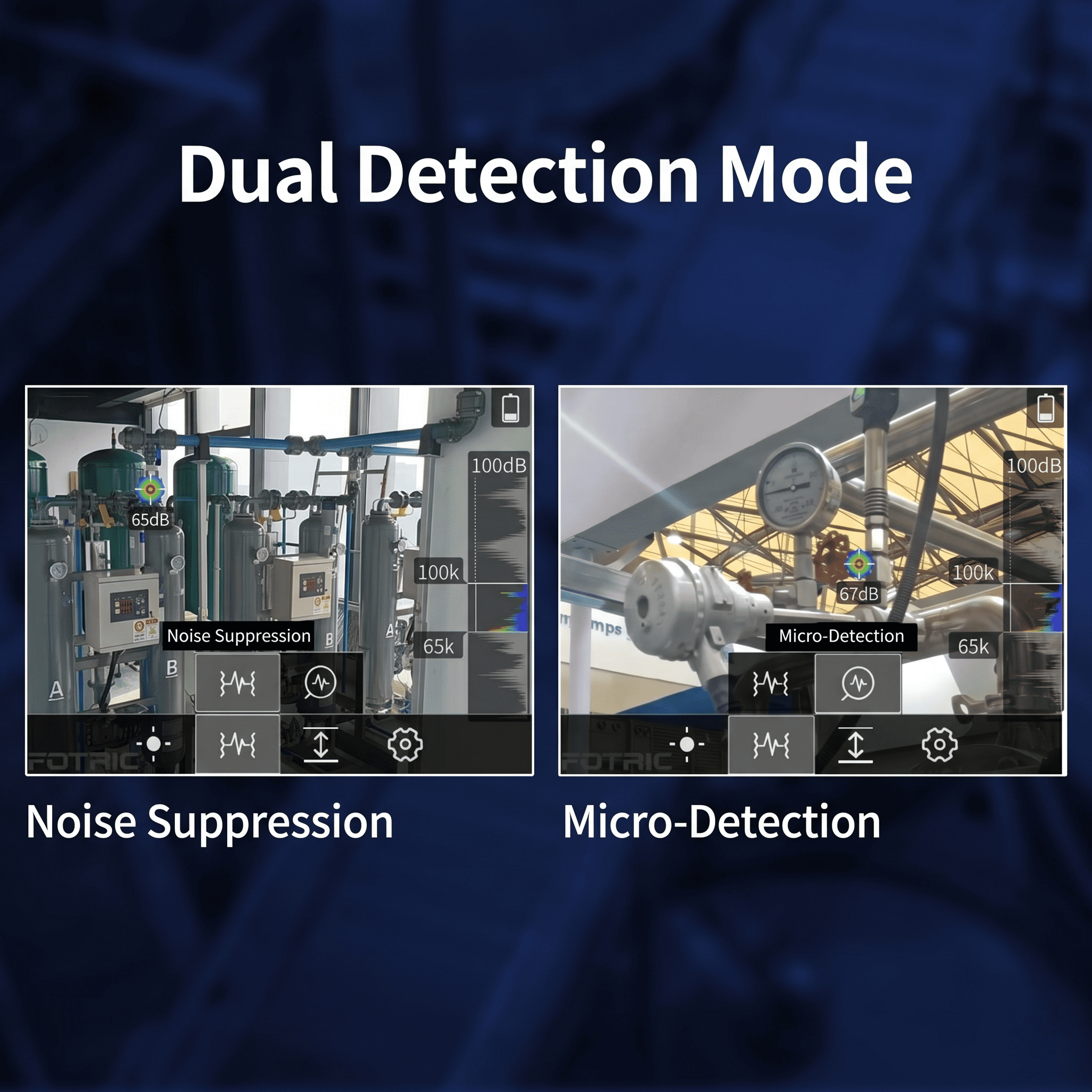

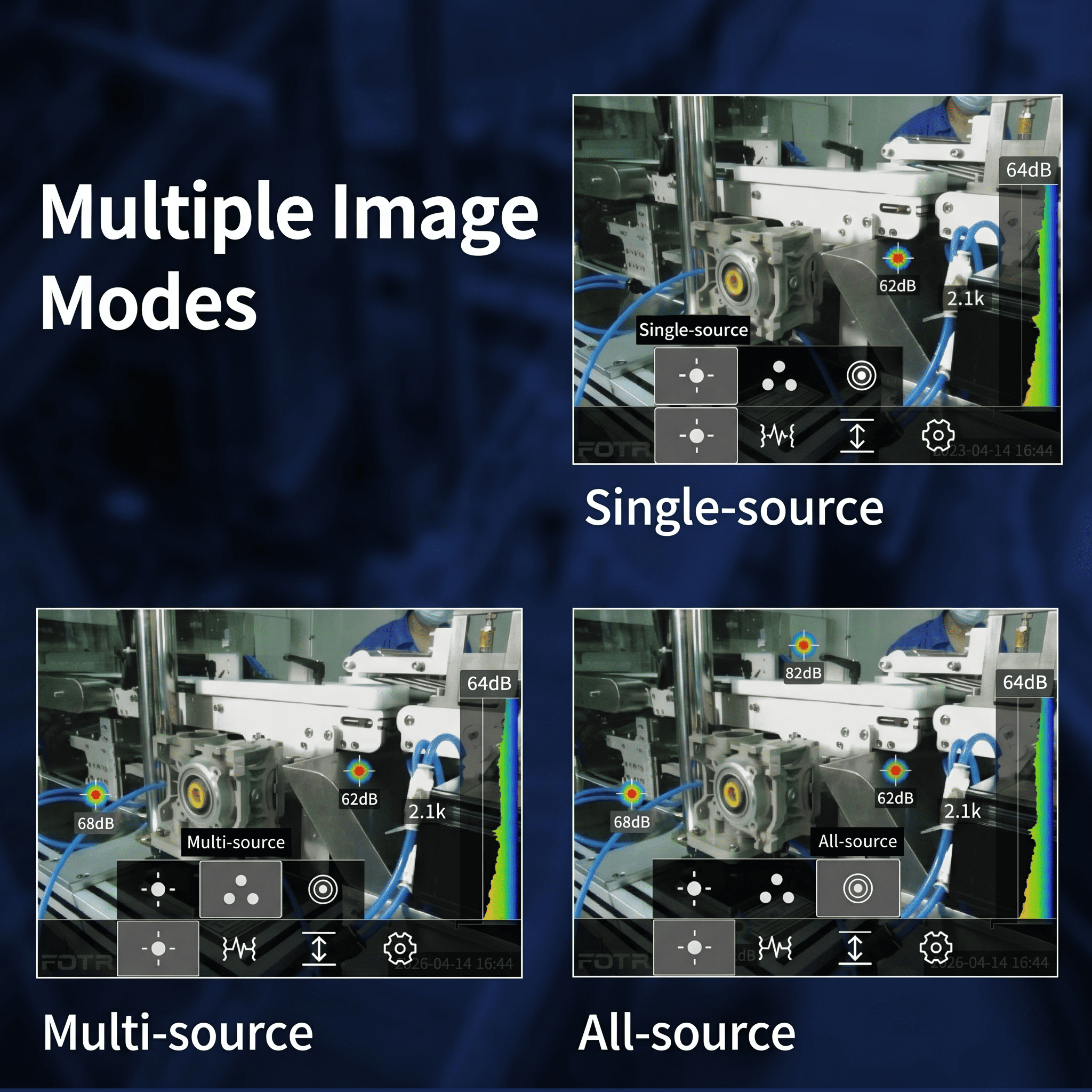

Adaptive noise reduction and micro-detection modes provide stable acoustic imaging in demanding environments. Single-source, multi-source, and full-source display modes allow you to select the best view for each inspection.

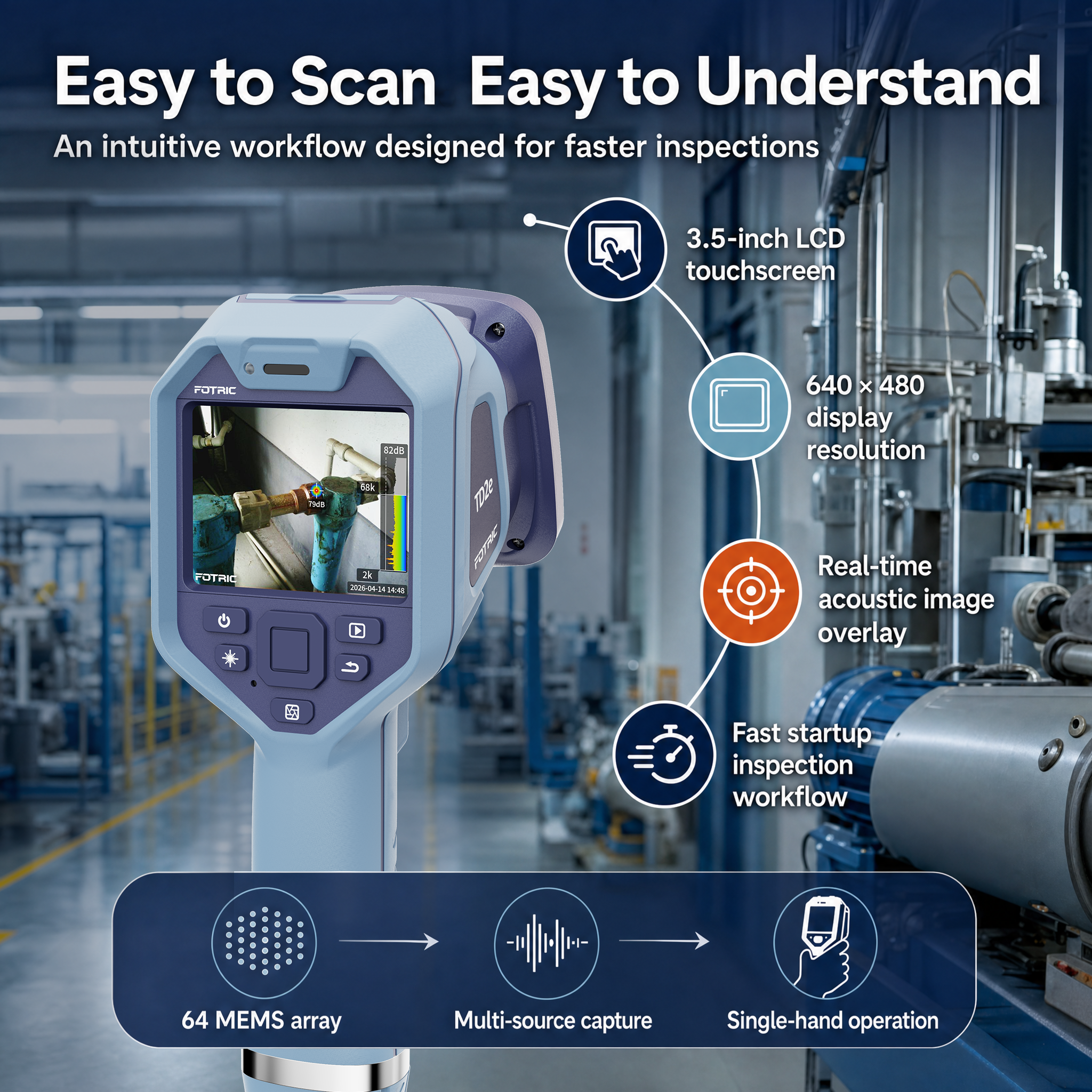

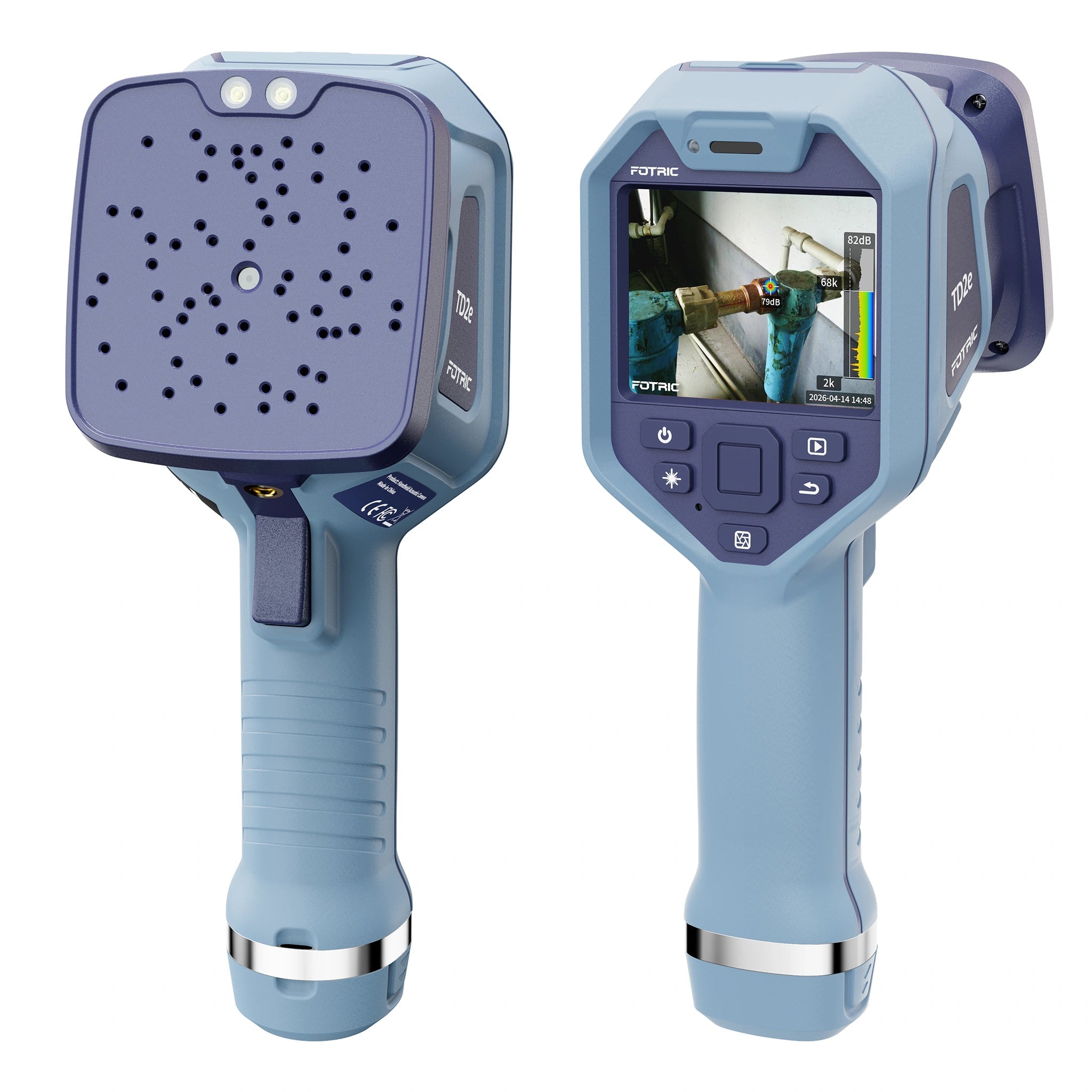

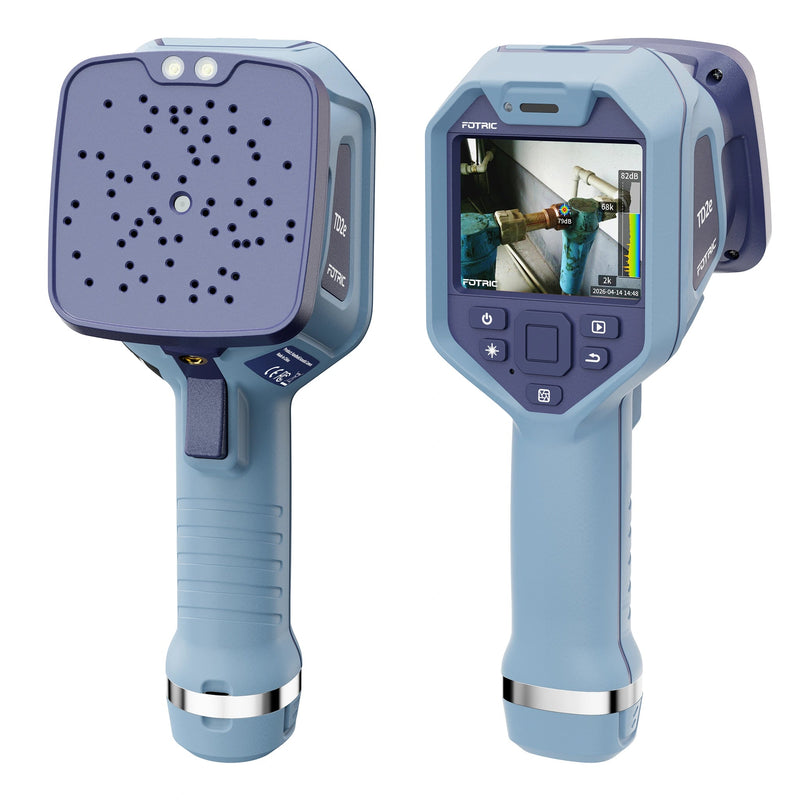

Portable and Built for Field Use

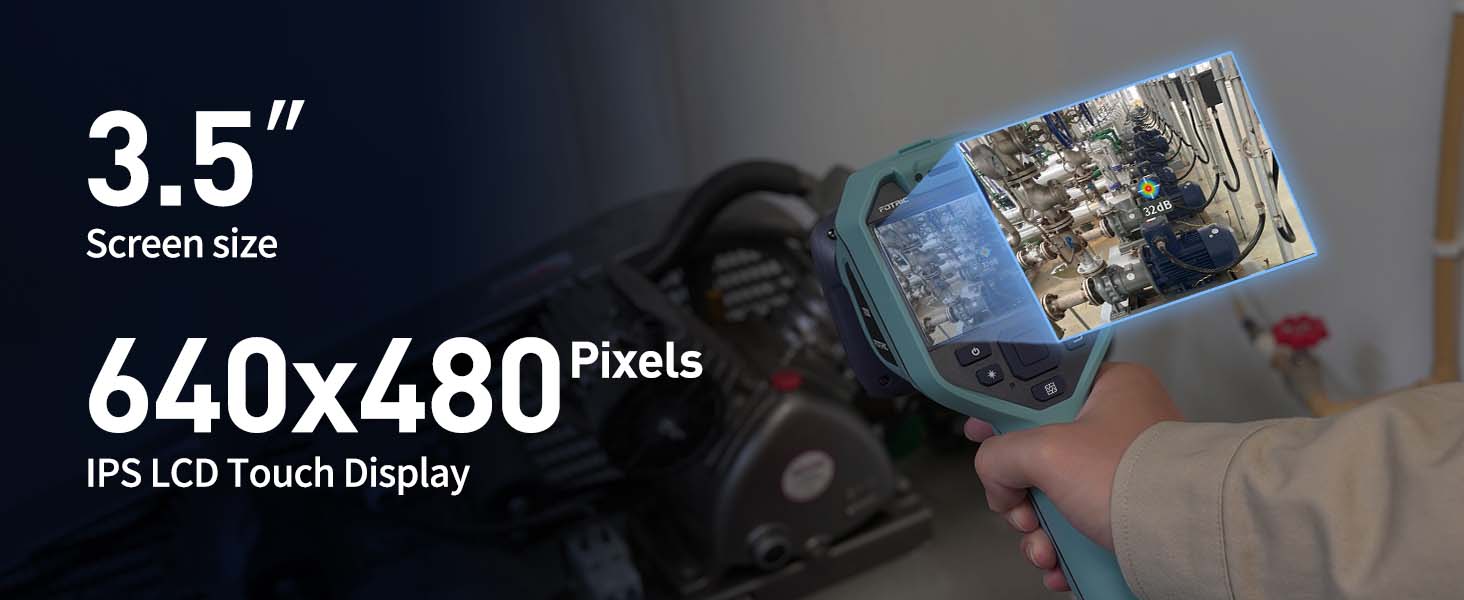

The 3.5-inch IPS touchscreen features a 640 × 480 resolution and protective glass for clear, intuitive operation. Weighing only 720 g, the TD2e is IP54-rated and tested for drops of up to 2 meters.
Replaceable Battery for Longer Inspections
A replaceable 5000mAh rechargeable battery provides more than 4 hours of continuous operation. The standard package includes one battery, while the complete kit includes two batteries for extended field use.

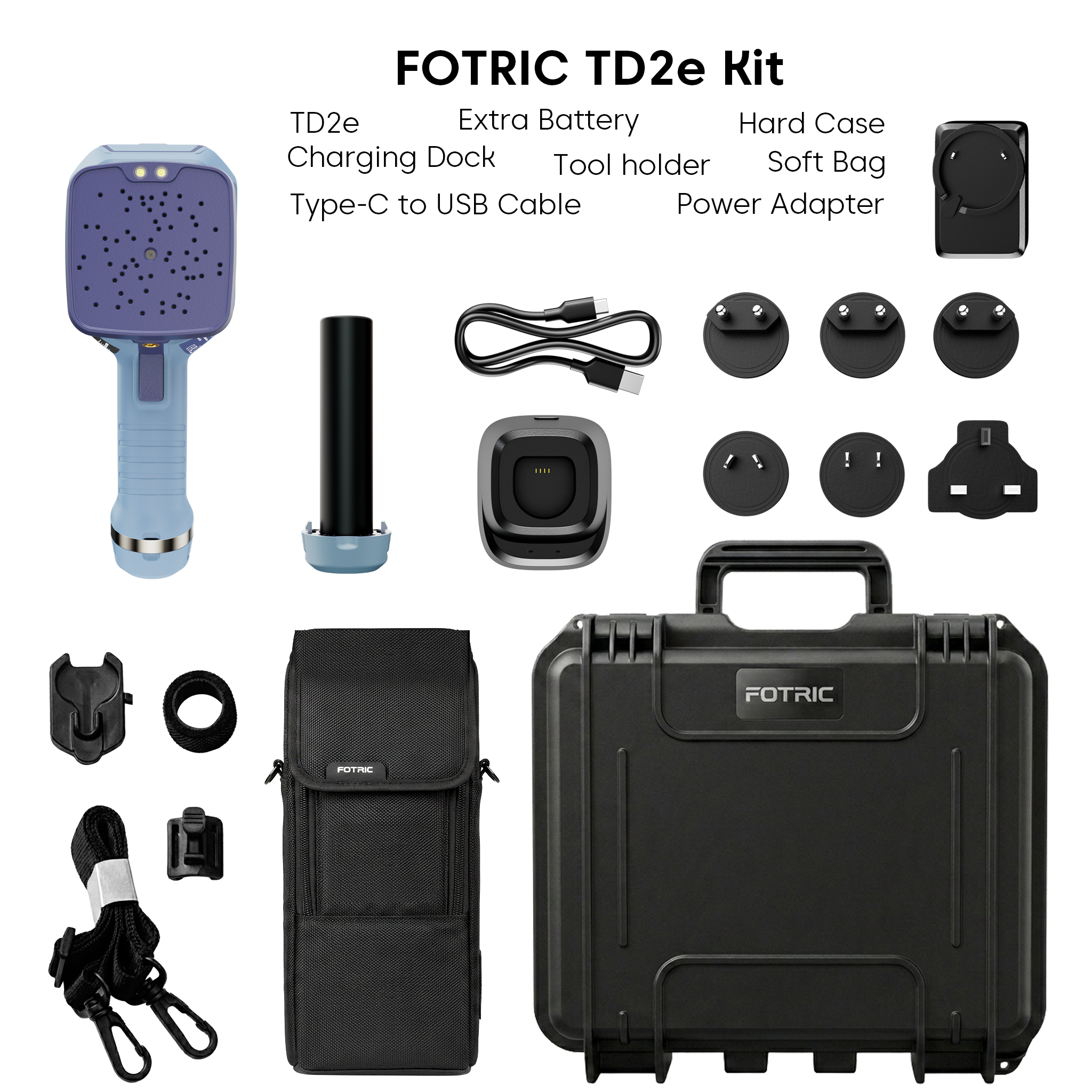

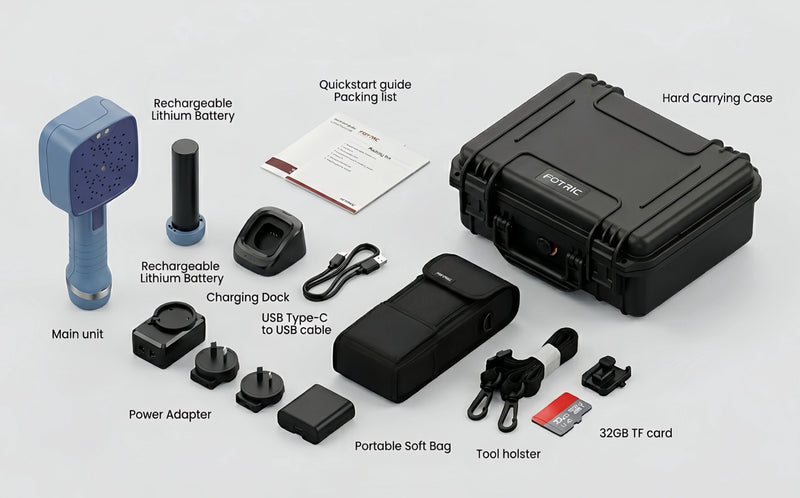

Complete Kit Includes (Full Kit Version Only)
1 × FOTRIC TD2e Acoustic Imaging Camera, 2 × rechargeable lithium batteries, 1 × charging dock, 1 × power adapter, 1 × USB Type-C to USB cable, 1 × 32GB TF card, 1 × tool kit, 1 × Quick Start Guide, 1 × packing list, 1 × portable soft pouch, and 1 × hard carrying case.

FOTRIC TD2e Acoustic Imager

€1.039,99

Description Specifications FAQs Reviews

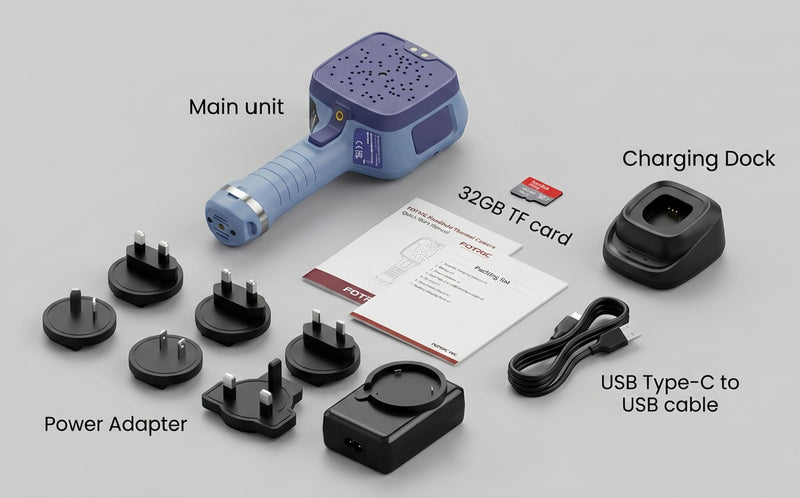

Everything You Need, Right Out of the Box

What's Included

TD2e Acoustic Imaging Camera
Rechargeable Lithium Battery
Charging Dock
Power Adapter
USB Type-C to USB Cable
32GB TF Card
Tool Holster
Quick Start Guide
Packing List

What's Included

TD2e Acoustic Imaging Camera
Rechargeable Lithium Batteries (2x)
Charging Dock
Power Adapter
USB Type-C to USB Cable
32GB TF Card
Tool Holster
Portable Soft Bag
Hard Carrying Case
Quick Start Guide
Packing List
18-Month Extended Warranty

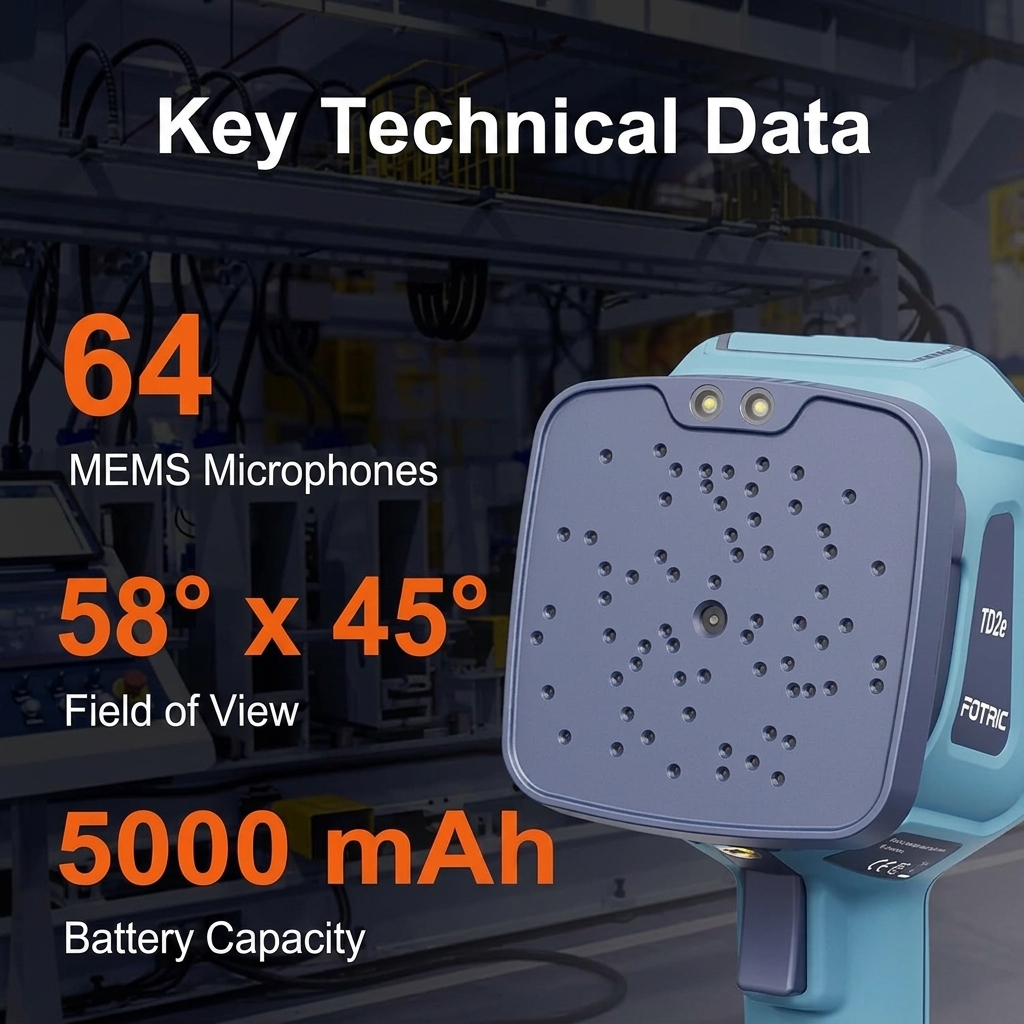

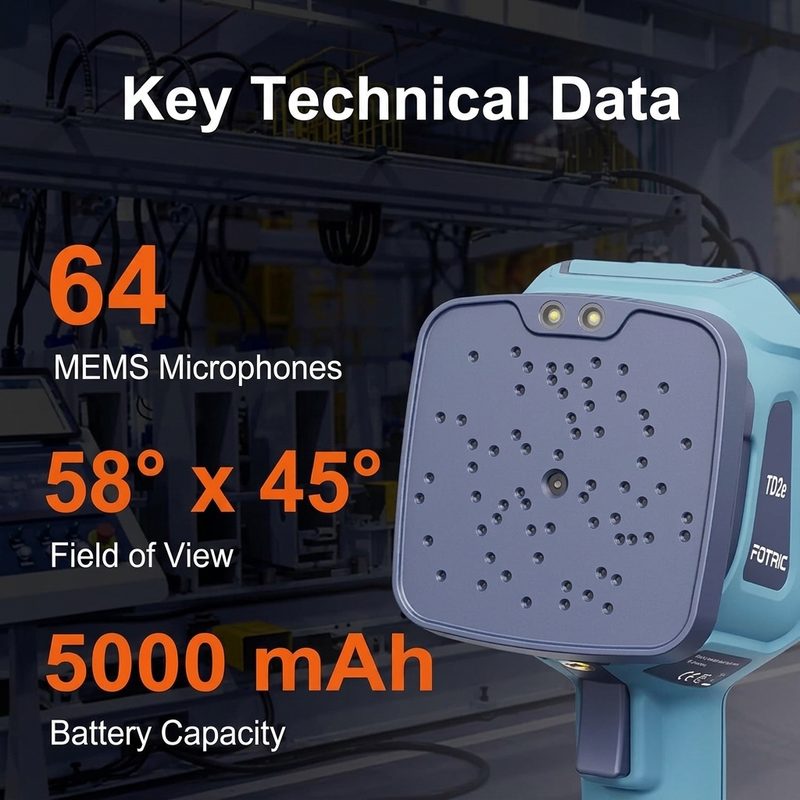

Technical Specifications

Microphone channels

64 MEMS Digital Microphones

Frequency range

2 kHz – 100 kHz

Sound sampling rate

200 kHz

Weight

720g

Acoustic image FOV

58° × 45°

Working distance

0.3 – 60 m

Display

3.5" IPS LCD touchscreen, 640 × 480

Digital camera

5 MP industrial-grade

Image modes

Single-source, Multi-source, All-source

Detection modes

Noise Suppression, Micro Detection

Battery type

3.6 V, 5000 mAh rechargeable Li-ion, field-replaceable

Battery life

≥ 3 hours per battery

Protection rating

IP54 (IEC 60529)

Data storage

32 GB TF card

Protection rating

IP54 (IEC 60529)

FAQ

Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.

View All Support Resources

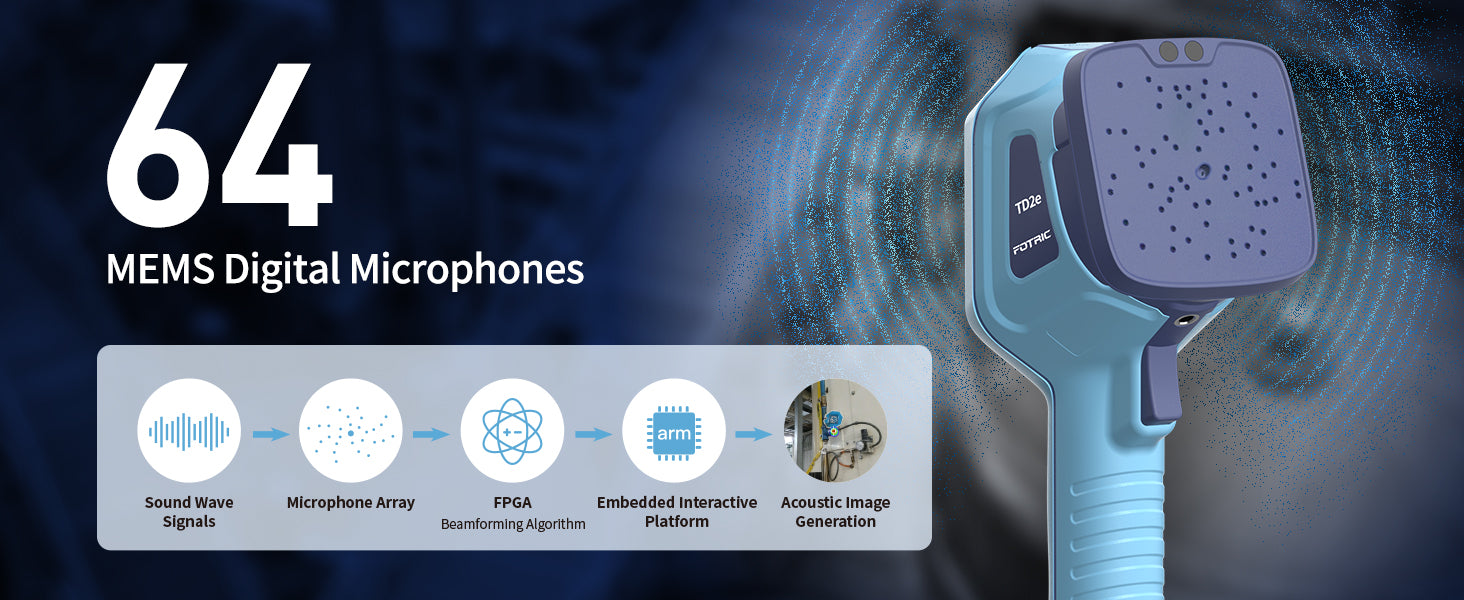

How does the TD2e acoustic imaging camera work?

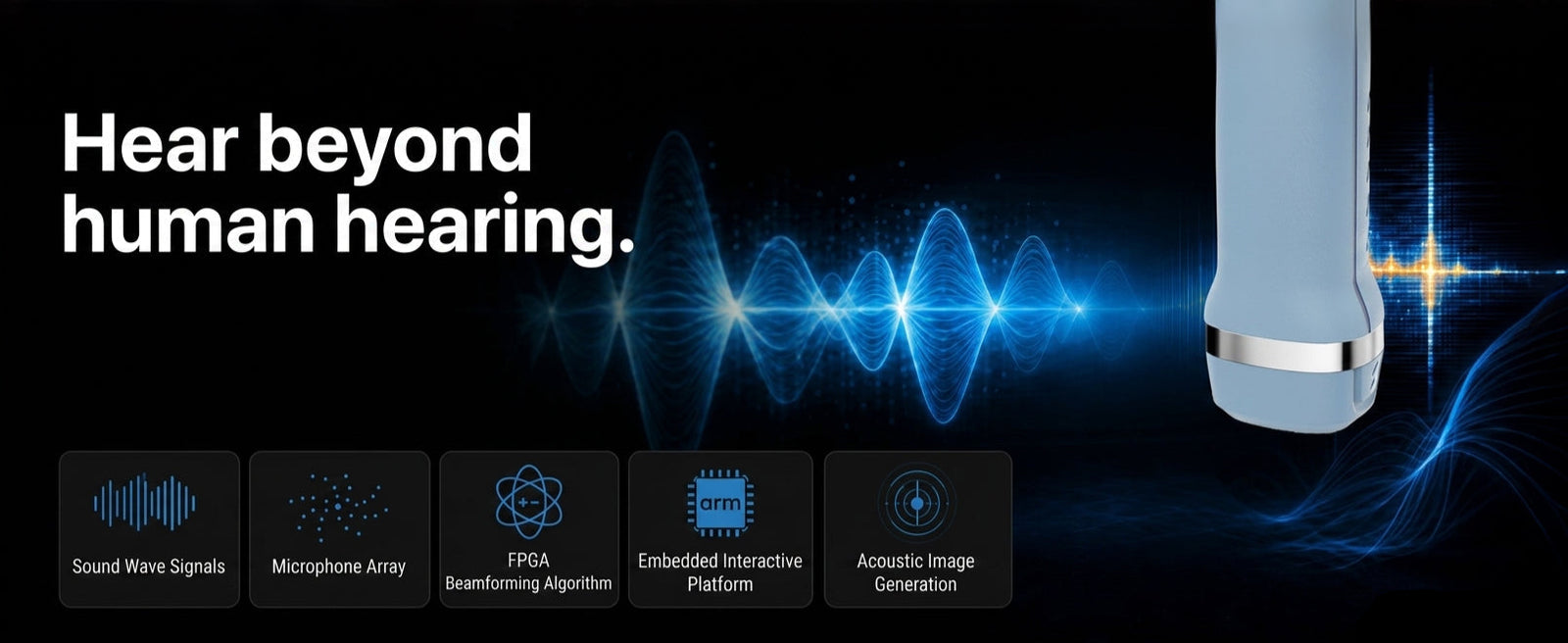

The TD2e uses an array of 64 MEMS microphones to capture sound from multiple directions simultaneously. A beamforming algorithm focuses on sound sources from specific directions, filtering out environmental noise. The device then displays the sound source location as a colorful heatmap overlaid on the live camera image, allowing you to "see" where sounds are coming from — including ultrasonic sounds beyond human hearing.

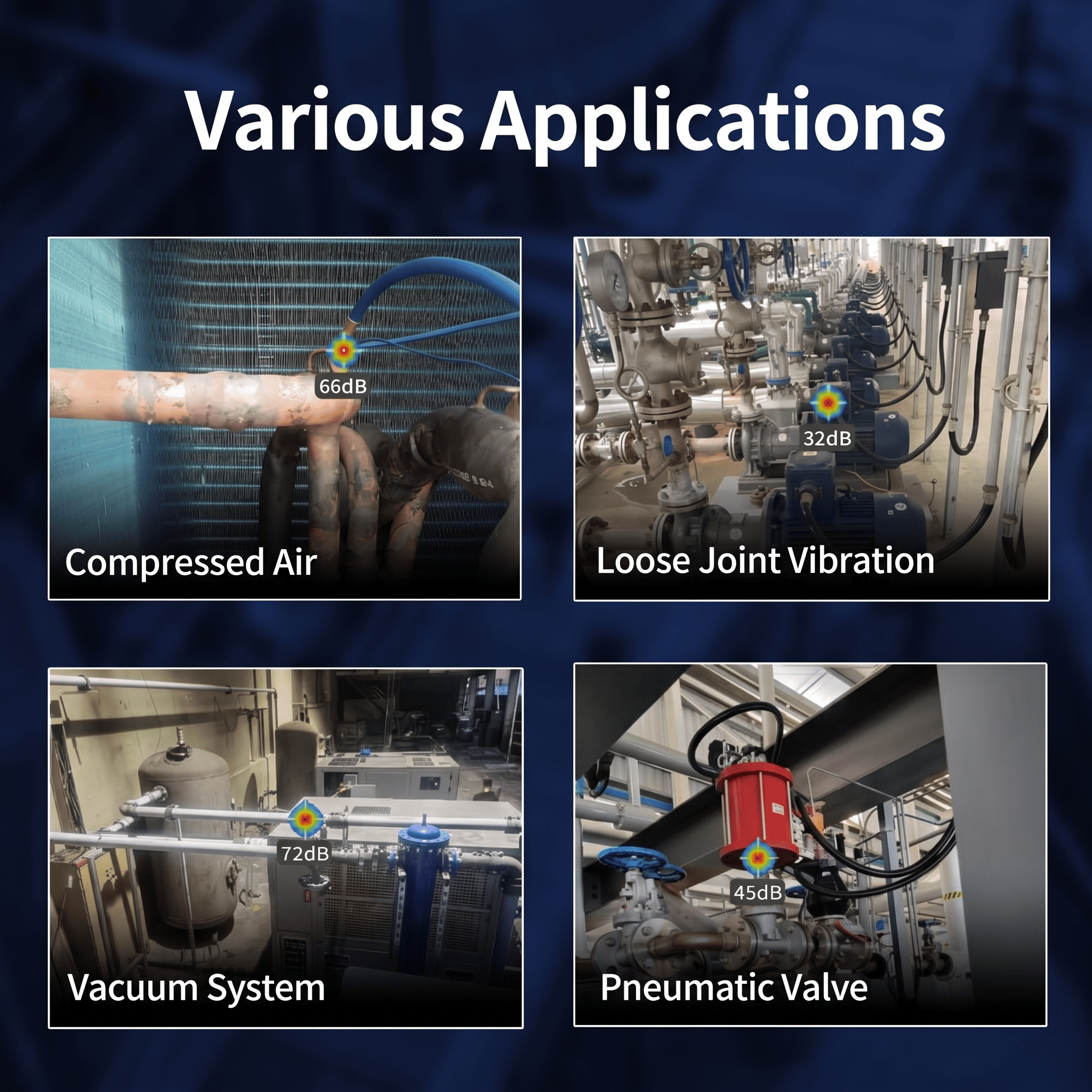

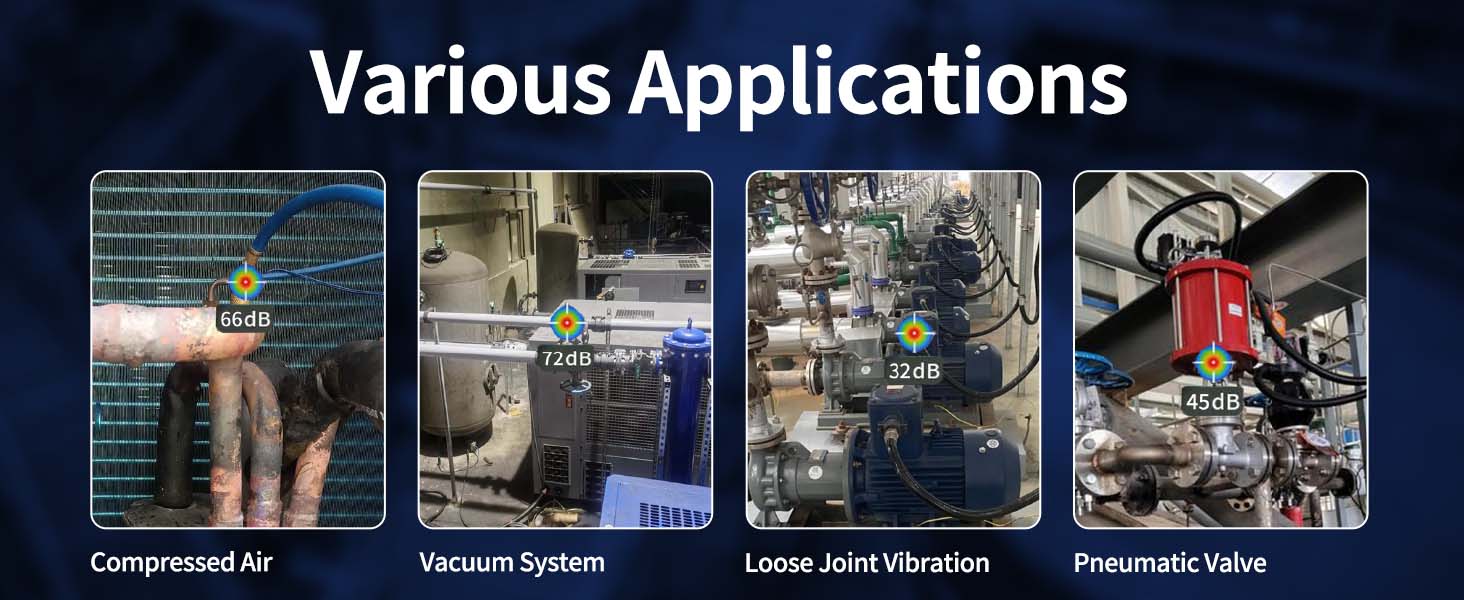

What kind of leaks and faults can the TD2e detect?

The TD2e can detect:

Compressed air system leaks — including pneumatic valves, cylinders, and fittings
Gas leaks — pressurized gas escaping from pipelines
Vacuum system leaks — negative pressure leaks
Loose joint vibration — abnormal high-frequency sounds from loose components during operation

Its 2kHz to 100kHz frequency range covers both audible and ultrasonic signals produced by these faults.

What is the detection range of the TD2e?

The effective detection range is 0.3m to 60m.

Sounds closer than 0.3m may still be detected, but near-field effects can reduce positioning accuracy. Under certain conditions, sound sources with very high sound pressure levels may be detected beyond 60m.

Can the TD2e work in noisy industrial environments?

Yes. The TD2e is designed for industrial use. In noisy environments, use Noise Suppression Mode to filter out background noise and maintain stable acoustic imaging. You can also adjust the frequency range to focus on the target sound's frequency.

What's the difference between TD2e Standard and TD2e Kit?

The TD2e Kit includes everything in the Standard version, plus additional accessories for extended field use.The TD2e Kit includes everything in the Standard version, plus additional accessories for extended field use.

How long does the battery last?

≥3 hours of continuous operating time per battery. Actual operating time depends on environmental and usage conditions.

The TD2e Kit includes 2 batteries, allowing for full-day inspections with hot-swapping.
