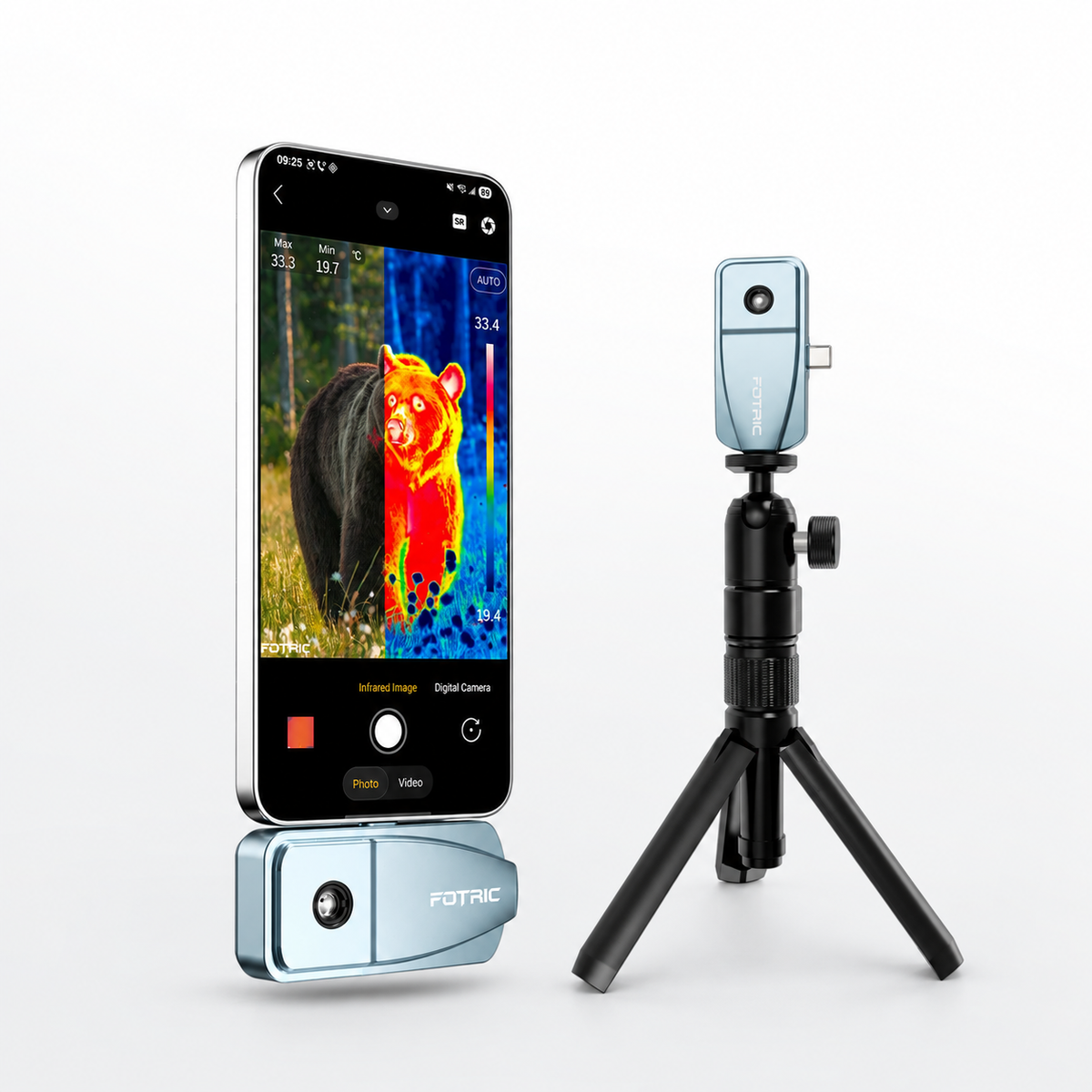

FOTRIC Manisen Thermal Camping Camera
- Regular price
- €379,00
- Sale price
- €379,00
- Regular price
-
✓ Prices include local EU VAT
Free EU shipping
TP320AOFF
Description
Tech Specs Show More Show Less
- Device Compatibility
- Android 12+ · USB-C Not compatible with iOS
- Thermal Resolution
- 320 × 240 native Super Resolution: up to 640 × 480
- Temperature Range
- -20°C to 550°C -4°F to 1022°F
- Measurement Accuracy
- ±2°C or ±2% ±3.6°F · Whichever is greater
- Sensitivity & Frame Rate
- <35 mK NETD 25 Hz imaging
- Field of View
- 60° × 45°
- Focus & Imaging Distance
- Focus-free Minimum imaging distance: 0.2 m
- Weight & Dimensions
- 40 g (1.4 oz) 71 × 33 × 15.5 mm
- Power & Protection
- USB-C phone power No separate battery or charging IP40 protection 1 m drop resistance
What's Included Show More Show Less
- TP320A Thermal Camera
- Phone Clamp
- USB-C Cable Kit
- Complete Mounting Kit (Tripod, Extension Rod, Phone Holder, Ball Head)
- Carrying Case
- Quick Start Guide
- FOTRIC Genie App — Free Download
FOTRIC Manisen Thermal Camping Camera
Checkout price
€329,00
€379,00
Save €50
Five ways to work
AS FLEXIBLE AS YOUR IMAGINATION
Configure your setup to match your task — not the other way around.
PHONE DIRECT
HANDHELD
MAGNETIC
TRIPOD
TELESCOPIC POLE
Which model is right for you?
Swipe to compare more models
|
You're viewing
 FOTRIC Manisen Thermal Camping Camera
View options
|
 FOTRIC TP320A
View product
|
 FOTRIC Therm5
View product
|
 FOTRIC TK5
View product
|
 FOTRIC TK6
View product
|

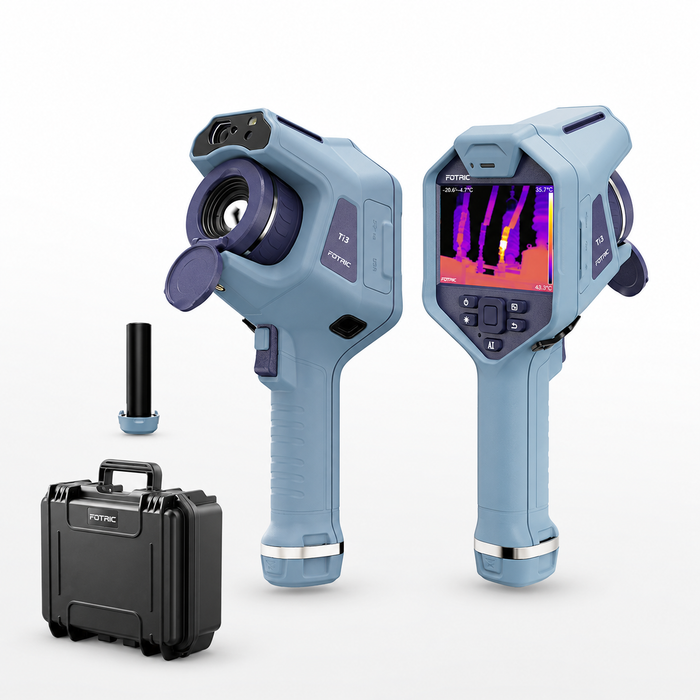

 FOTRIC Ti3
View product
|

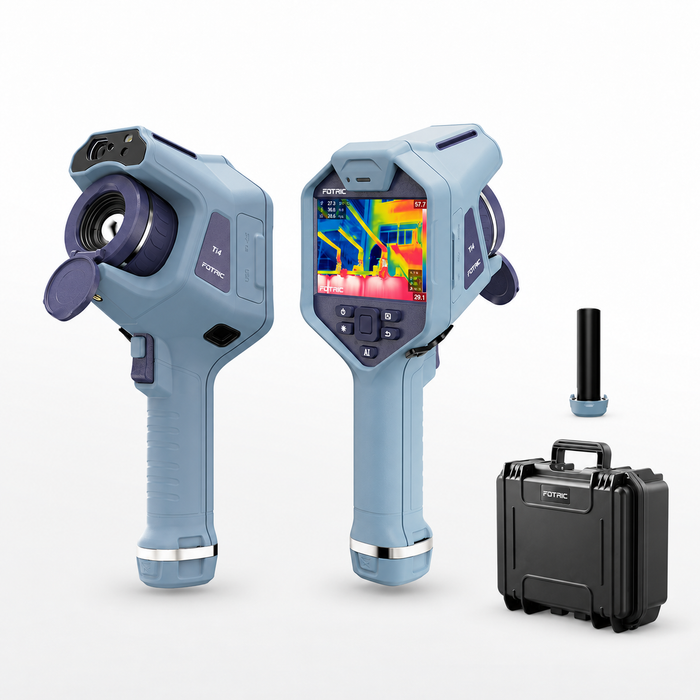

 FOTRIC Ti4
View product
|
|
|---|---|---|---|---|---|---|---|
| Best for | |||||||
| Price | €379,00 EUR | €379,99 EUR | €529,99 EUR | €829,99 EUR | €899,99 EUR | €2.549,99 EUR | €2.999,99 EUR |
| IR Resolution | 320 × 240 | 320 × 240 | 320 × 240 | 320 × 240 | 384 × 288 | 160 × 120 | 320 × 240 |
| Object Temperature Range | −20°C to 550°C (−4°F to 1022°F) | −20°C to 550°C (−4°F to 1022°F) | −4°F to 842°F | −4°F to 842°F | −4°F to 1022°F | −4°F to 1202°F | −4°F to 1202°F |
| Field of View (FOV) | 60° × 45° | 60° × 45° | 50° × 38° | 49° × 37° | 25° × 19° | 25° × 19° | 44° × 33° |
| Thermal Sensitivity (NETD) | <35 mK @ 30°C | <35 mK @ 30°C | 30 mK | 40 mK | 40 mK | 50 mK | 40 mK |
| Focus Mode | Focus-free | Focus-free | Focus-free | Focus-free | Manual | TurboFocus | TurboFocus |
| Display Size | Uses phone screen | Uses phone screen | 3.2" | 3.5" | 3.5" | 5" | 5" |
| Digital Camera | Via phone | Via phone | 2 MP | 5 MP | 5 MP | 8 MP | 8 MP |
Everything You Need, Right Out of the Box
Plug in. Open the app. You're ready.
What's Included
- TP320A Thermal Camera
- Phone Clamp
- USB-C Cable Kit
- Complete Mounting Kit (Tripod, Extension Rod, Phone Holder, Ball Head)
- Carrying Case
- Quick Start Guide
- FOTRIC Genie App — Free Download
Technical Specifications
Infrared Resolution
320×240 (76,800 temperature pixels)
Super Resolution
640 × 480
Thermal Sensitivity
< 35 mK
Spectral Range
8 – 14 μm
Image Frame Rate
25 Hz
Field of View
60° × 45°
Minimum Imaging Distance
0.2 m
Focus Mode
Focus free
Temperature Range
-20 – 550℃
Measurement Accuracy
±2℃ (3.6℉) or ±2%, whichever is greater
Image Mode
Thermal, Thermal + visible light
Protection Level
IP40 (IEC 60529)
Drop Resistance
1 m
Dimensions
71 × 33 × 15.5 mm
Weight
40 g
PRODUCT MANUAL
FOTRIC Manisen User Guide
Quick start · Safety notes · Full specifications
View User Guide
Google Play
Frequently Asked Questions
Frequently Asked Questions
Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.
View All Support ResourcesWhat is the infrared resolution? Does it support super resolution?
The infrared resolution is 320×240. It supports Super Resolution which enhances the image to 640×480 for greater detail.
What is the temperature measurement range and accuracy?
- Temperature range: -20°C to 550°C (-4°F to 1022°F)
- Temperature span:-20-150°C/50-550°C (manually switchable)
- Accuracy: ±2°C or ±2%, whichever is greater (at 15~35°C ambient, target >0°C, calibrated at 1m)Temperature range: -20°C to 550°C (-4°F to 1022°F)
- Temperature span:-20-150°C/50-550°C (manually switchable)
- Accuracy: ±2°C or ±2%, whichever is greater (at 15~35°C ambient, target >0°C, calibrated at 1m)
What smartphones are compatible with the TP320A? Does it work with iOS/iPhones?
The TP320A is designed exclusively for Android devices and does not support Apple iPhones. For seamless plug-and-play operation, your smartphone must run Android 12 or above and have the OTG (On-The-Go) function enabled in the settings.
Can I use PC software to analyze images?
Yes. The TP320A supports Analyz IR Professional Thermal Imaging Analysis Software for in-depth post-inspection analysis and report generation.
Does the TP320A have its own battery? Does it drain my phone?
The TP320A does not have its own battery. It is powered by the phone via USB Type-C with a typical power consumption of only 0.5W, so the impact on your phone's battery is minimal.
No charging or boot-up time is needed — simply plug it in and start using it.
What can the TP320A be used for?
- Home inspection — check floor heating, air conditioning, detect air leaks around doors and windows
- Equipment inspection — identify hot spots in electrical cabinets, monitor motor temperatures, check HVAC systems
- Outdoor exploration — observe animal activity at night, detect residual heat sources, monitor environmental temperature differences
