FOTRIC TK5 Thermal Imaging Camera
€829,99
FOTRIC TK5 Thermal Imaging Camera
- Regular price
- €829,99
- Sale price
- €829,99
- Regular price
-
✓ Prices include local EU VAT
Free EU shipping
Limited-Time Offer
Up to 20% OFF
Automatically applied at checkout
No code needed

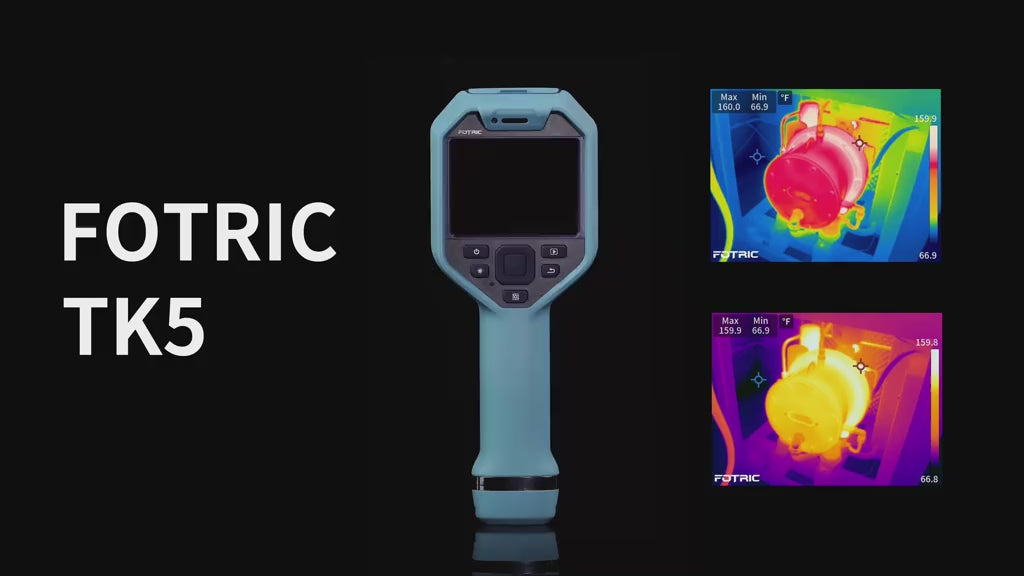

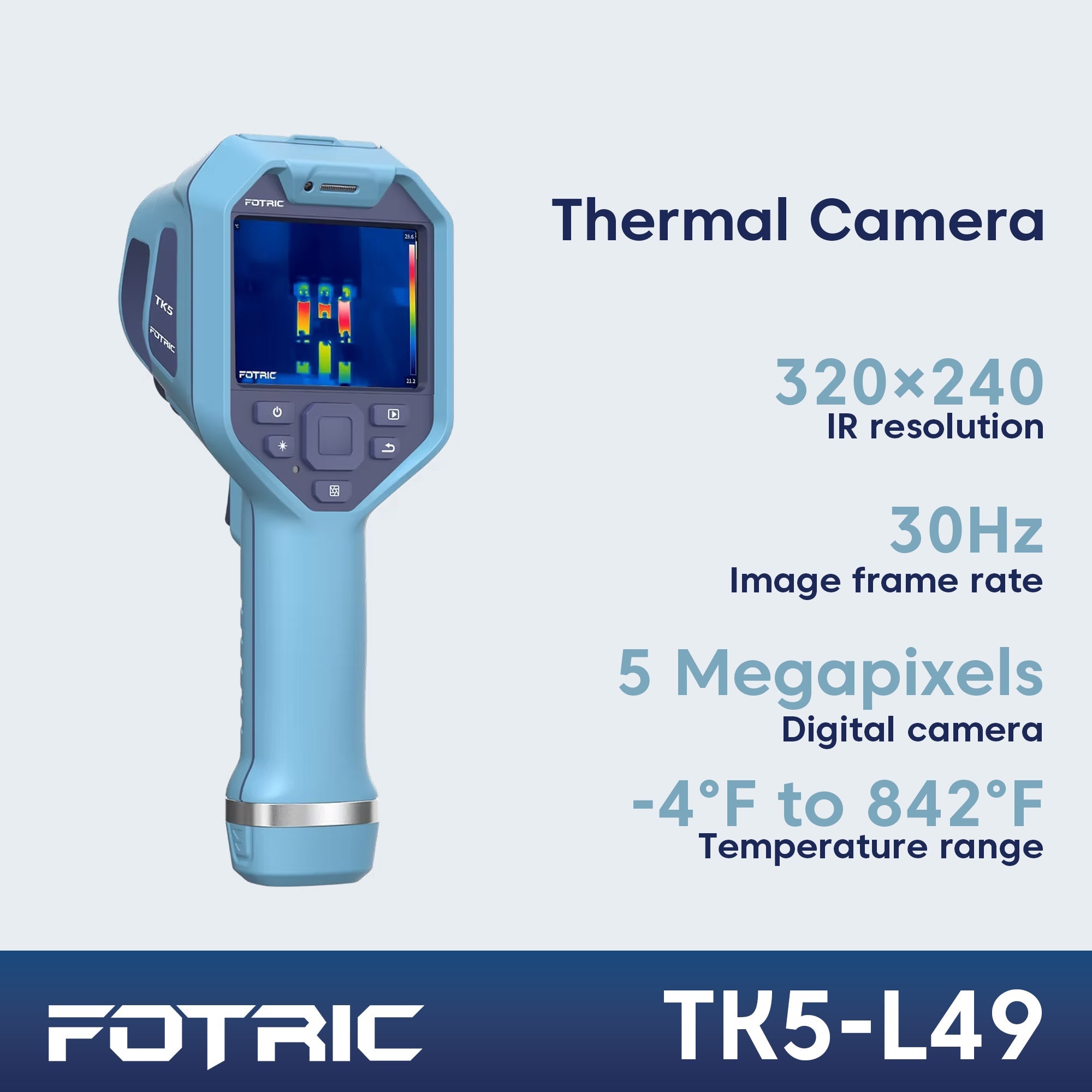

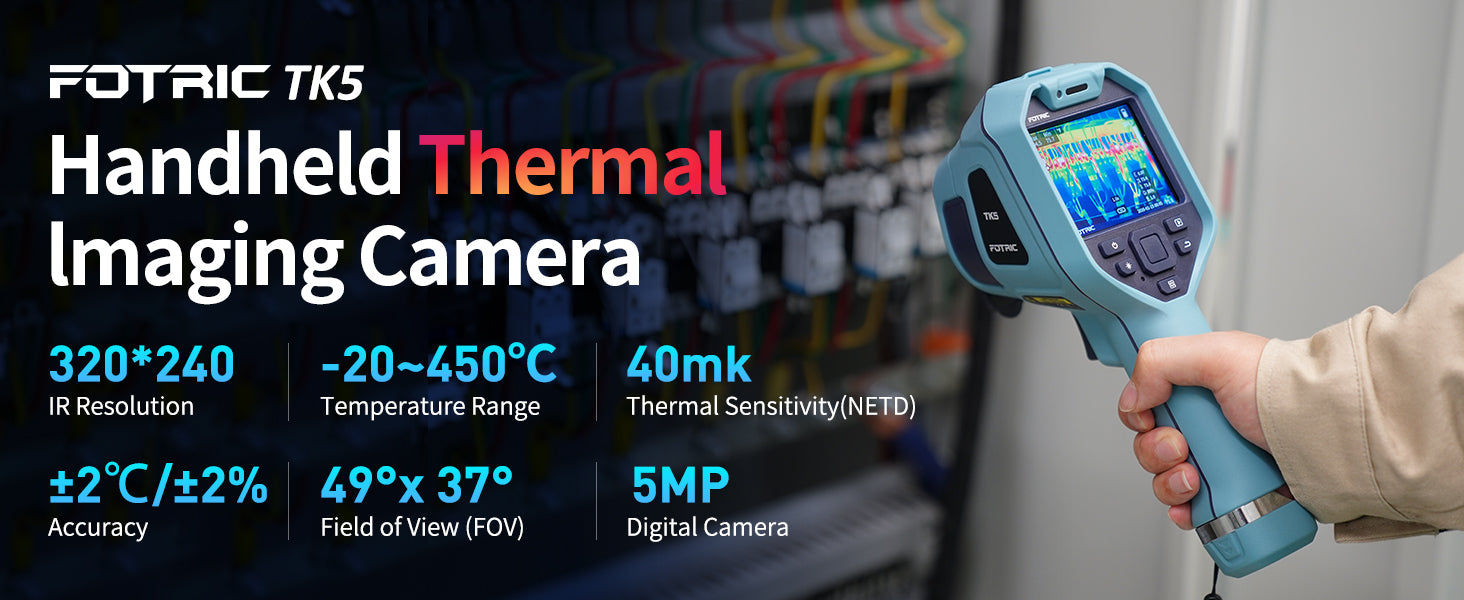

The FOTRIC TK5 is a professional handheld thermal camera designed to help technicians, inspectors, and advanced DIY users quickly locate electrical faults, equipment overheating, building energy loss, and other hidden temperature-related problems.
-

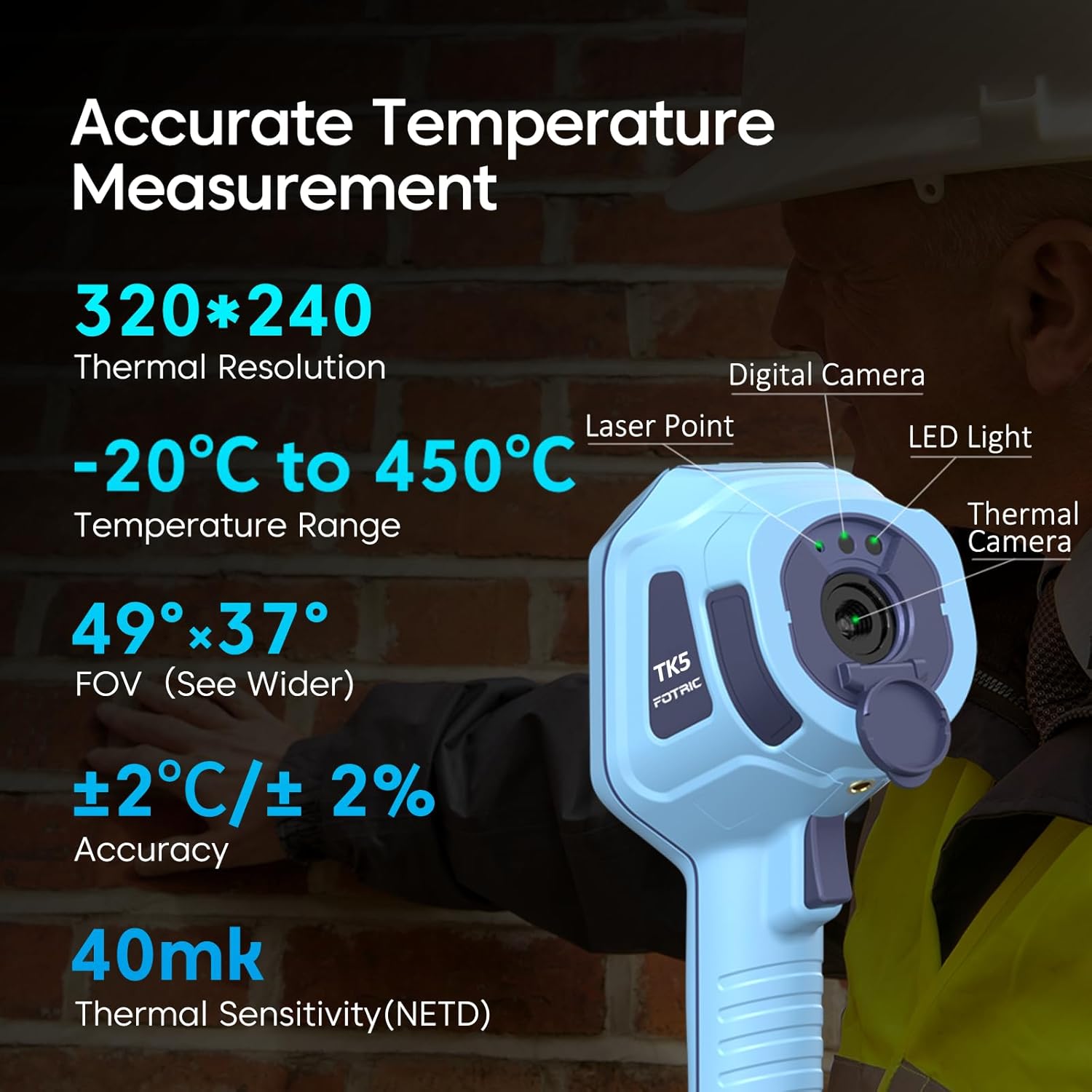

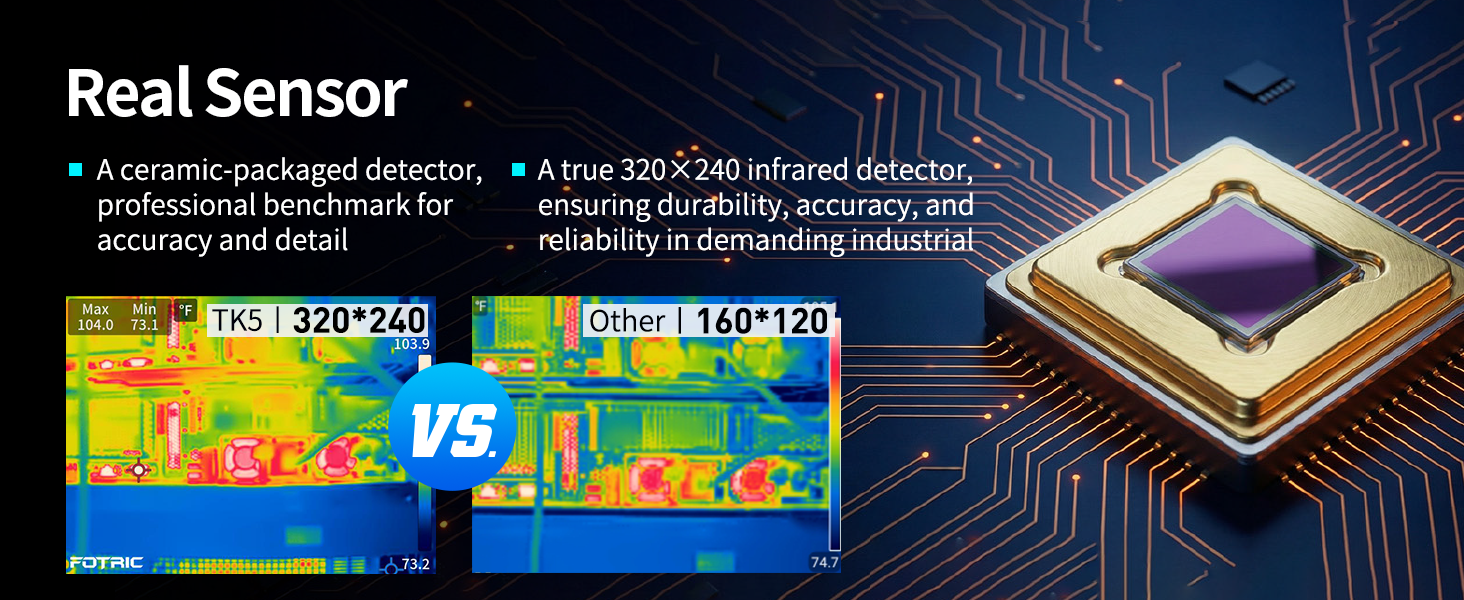

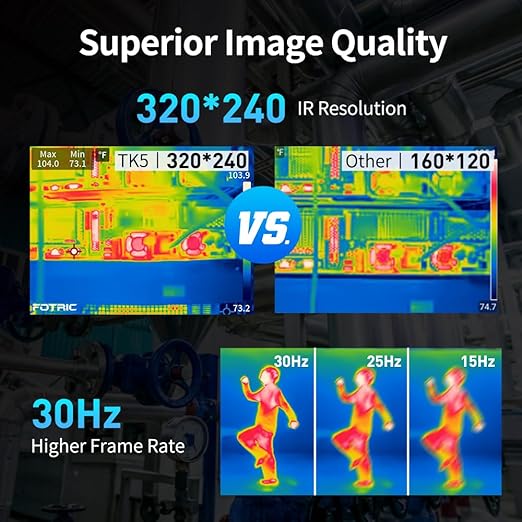

True 320 × 240 Thermal Imaging with 40mK Sensitivity
The TK5 captures detailed thermal images with 76,800 native infrared pixels. Its 40mK thermal sensitivity reveals temperature differences as small as 0.04°C, while the 12μm detector and 30Hz frame rate deliver clear, smooth thermal imaging for real-time inspections. -
Wide Field of View for Faster Inspections
A 49° × 37° field of view captures more of the target in a single image, making it easier to inspect electrical panels, building surfaces, mechanical rooms, HVAC equipment, and photovoltaic systems. The 2.67 mrad spatial resolution provides an effective balance between coverage and detail. -

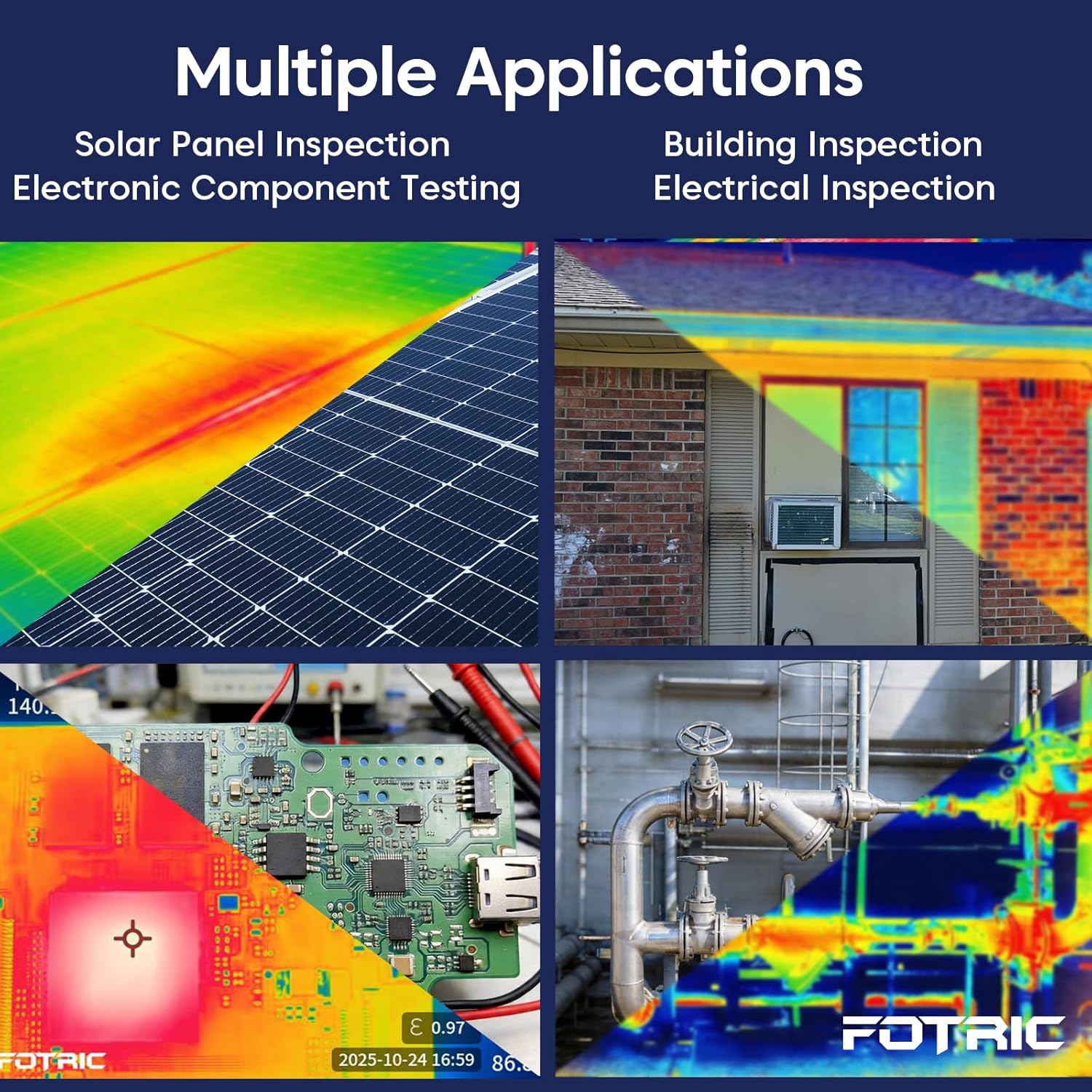

Built for Electrical, HVAC, Building, Solar, and Industrial Inspections
Identify abnormal heat patterns in electrical panels, wiring, connections, motors, bearings, and other operating equipment. Inspect HVAC performance, insulation gaps, moisture-related thermal patterns, and areas of energy loss. The TK5 can also help detect temperature irregularities in photovoltaic modules, industrial machinery, floor-heating systems, and household appliances. -
Advanced On-Device Measurement and Analysis

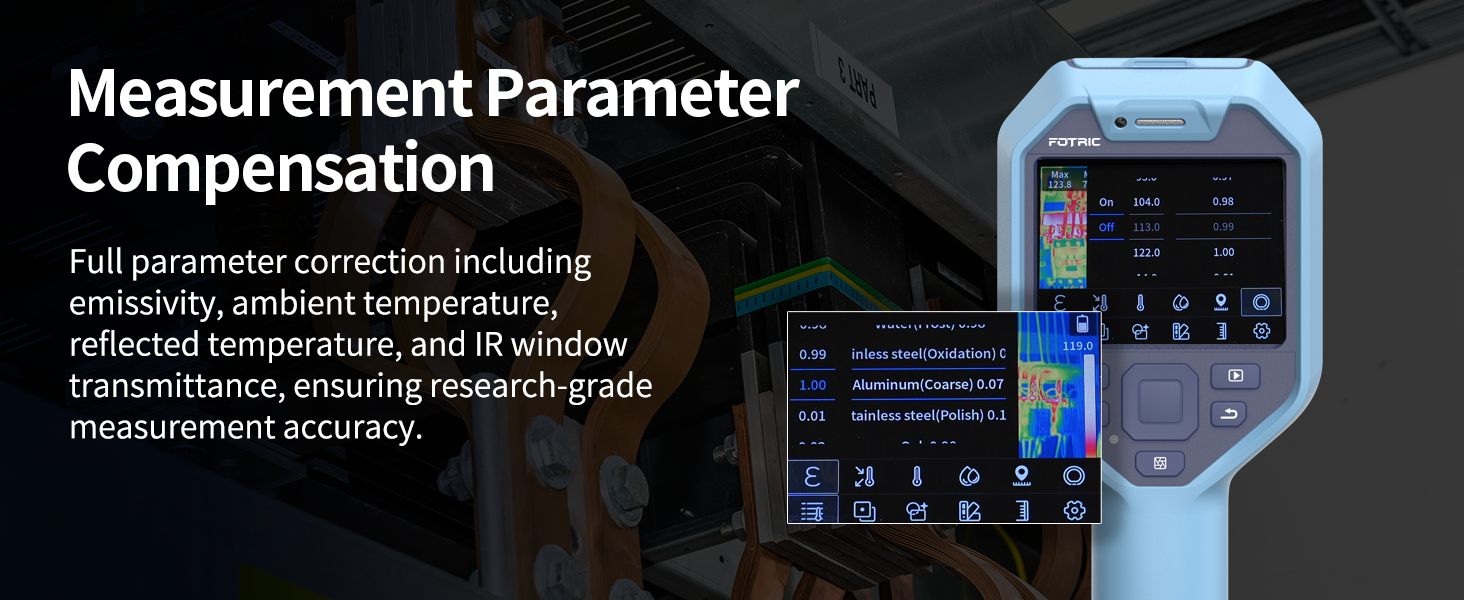

Perform detailed analysis directly on the camera using up to 20 spot, 10 line, and 10 area measurements. Adjustable emissivity, ambient temperature, reflected temperature, and IR-window transmission settings help improve measurement reliability across different materials and inspection environments. -

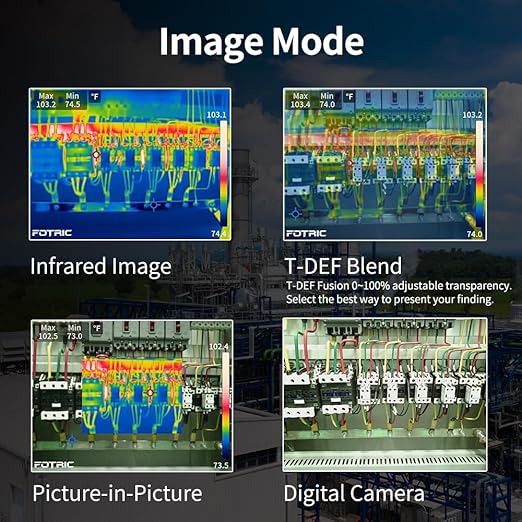

Multiple Image Modes for Faster Problem Location

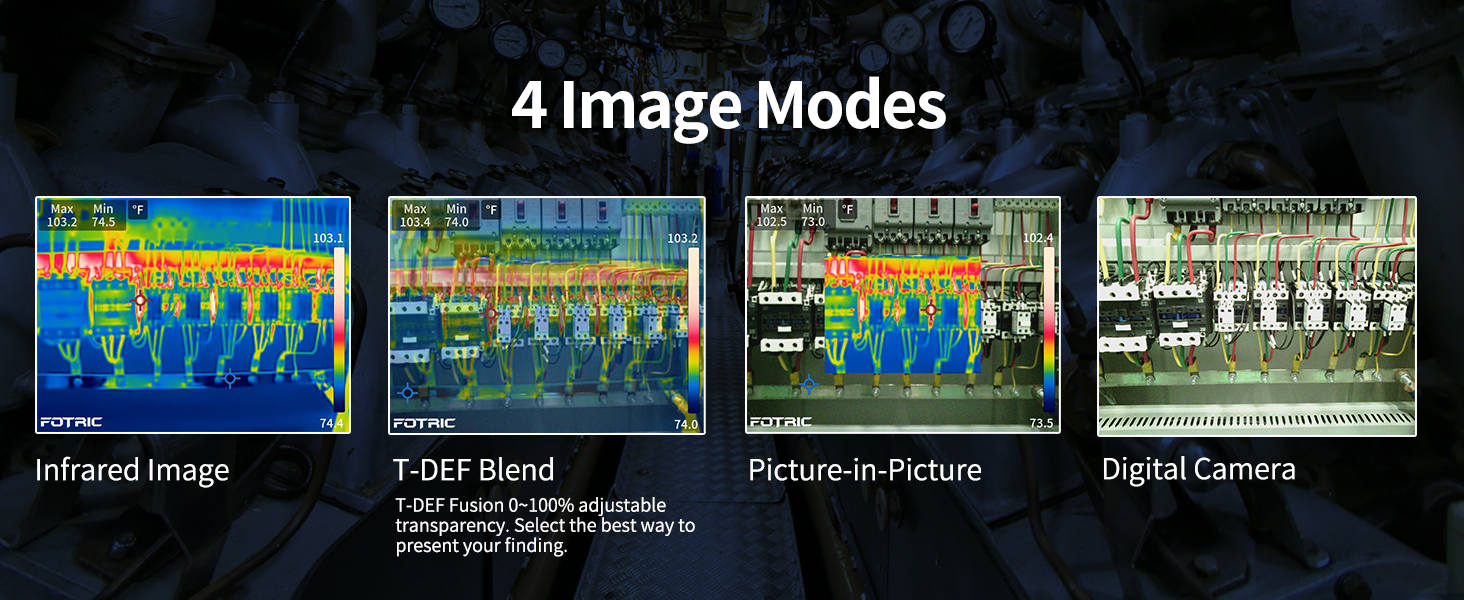

Choose from Infrared, T-DEF Fusion, Picture-in-Picture, and Digital Camera modes. T-DEF combines the 5MP visible image with the thermal image and supports transparency adjustment from 0% to 100%, helping users match thermal abnormalities with the correct physical component. -
T-TWB Technology for Clearer Thermal Images

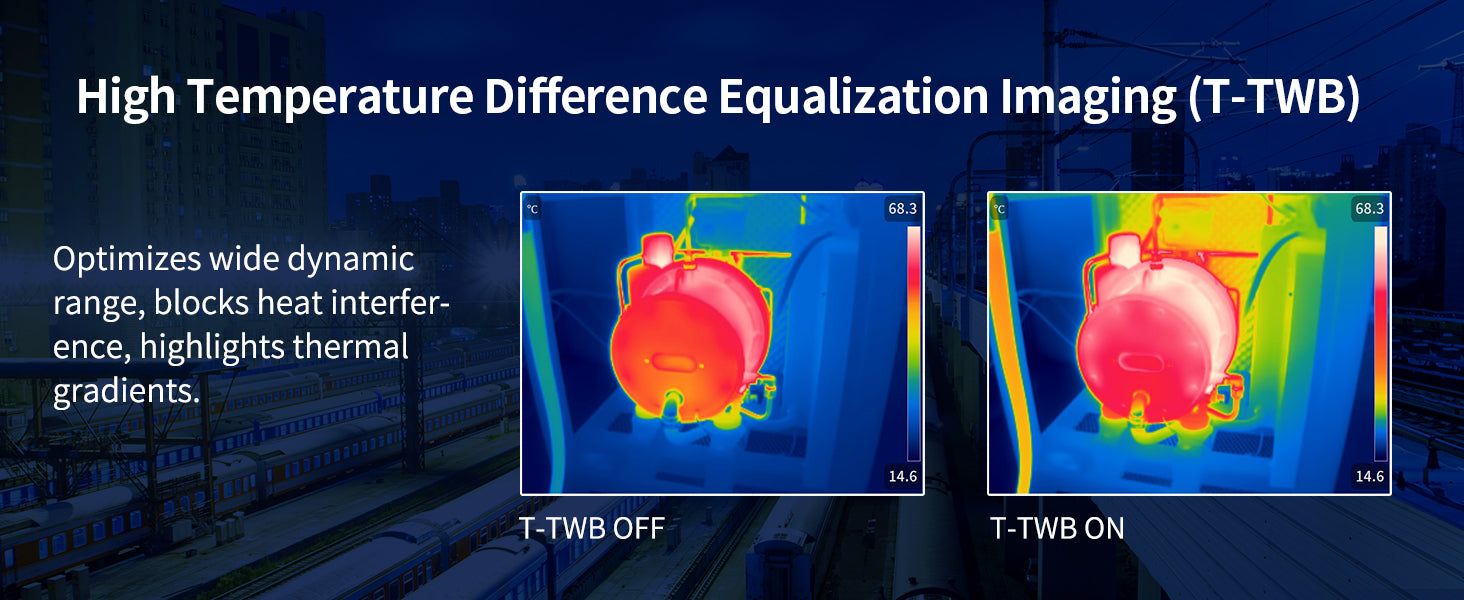

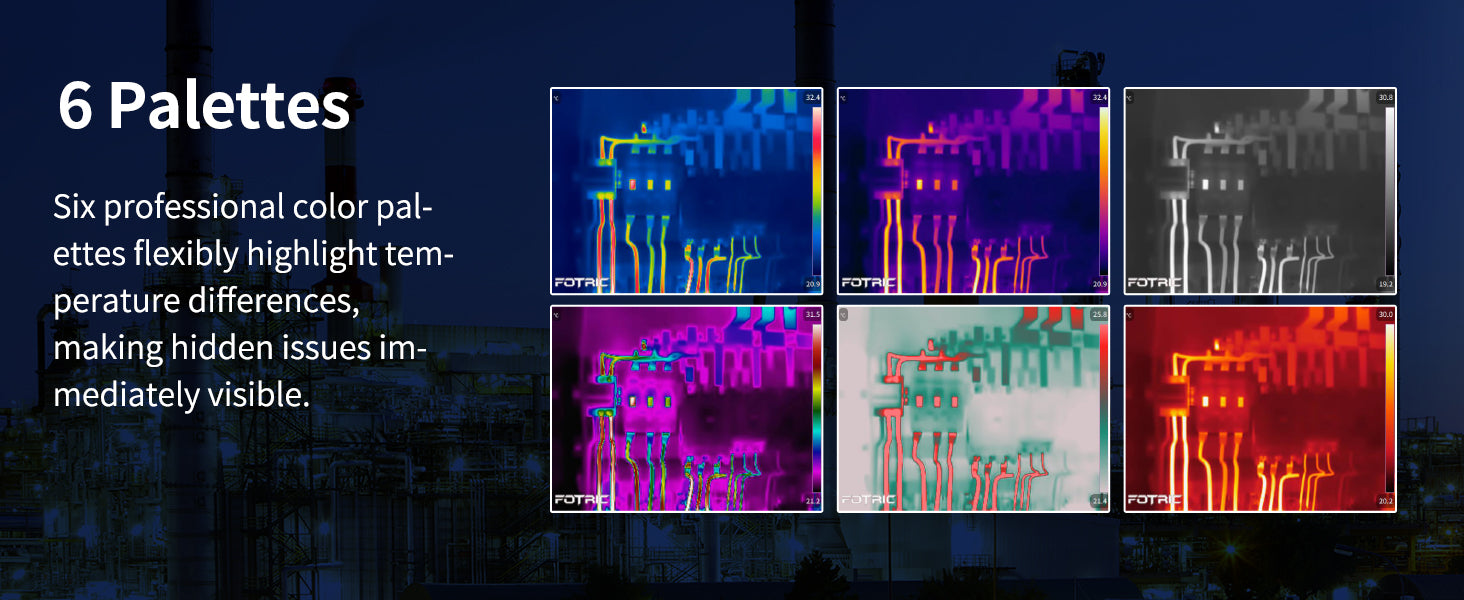

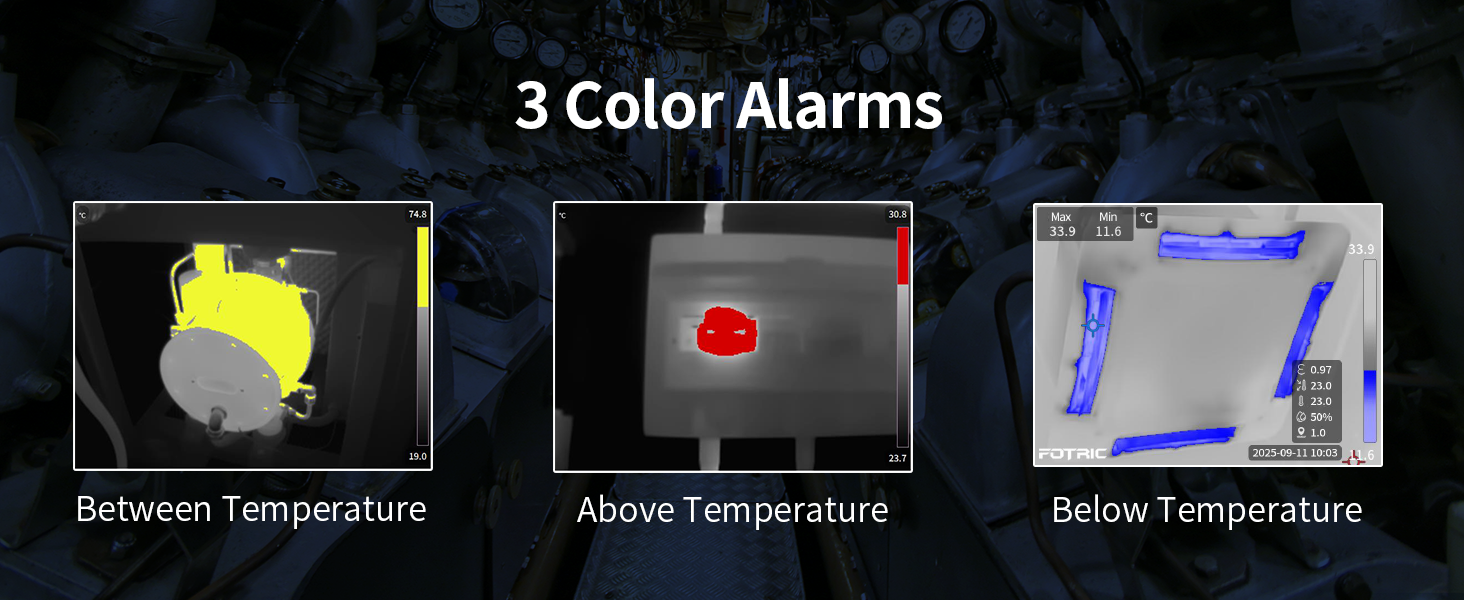

T-TWB automatically optimizes the thermal color scale based on the scene’s temperature distribution. Six color palettes and customizable temperature alarms make abnormal heat patterns easier to recognize and interpret during inspections. -
Rugged, Portable, and Ready for Field Work

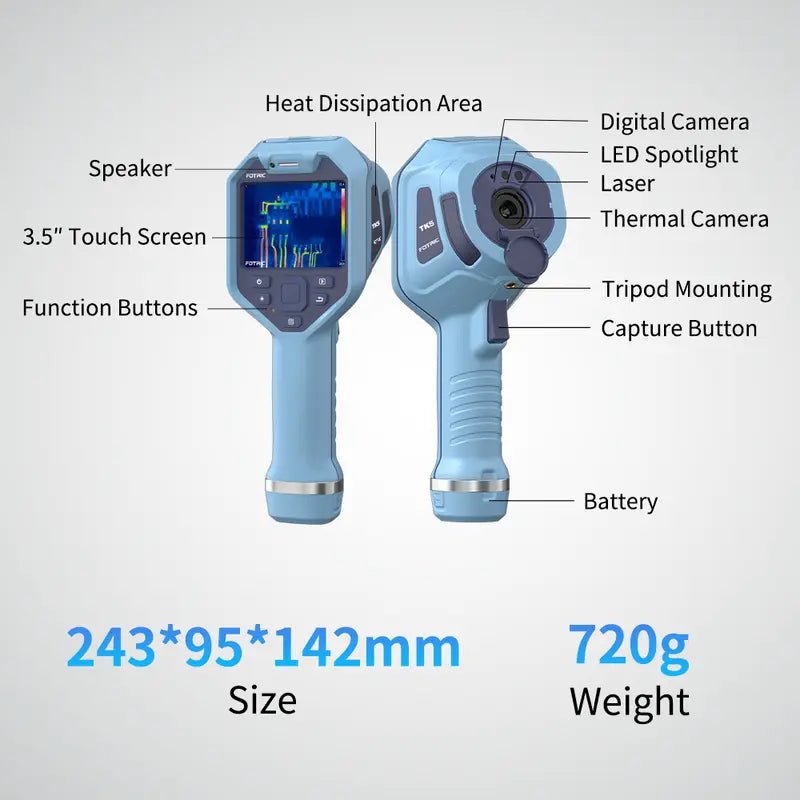

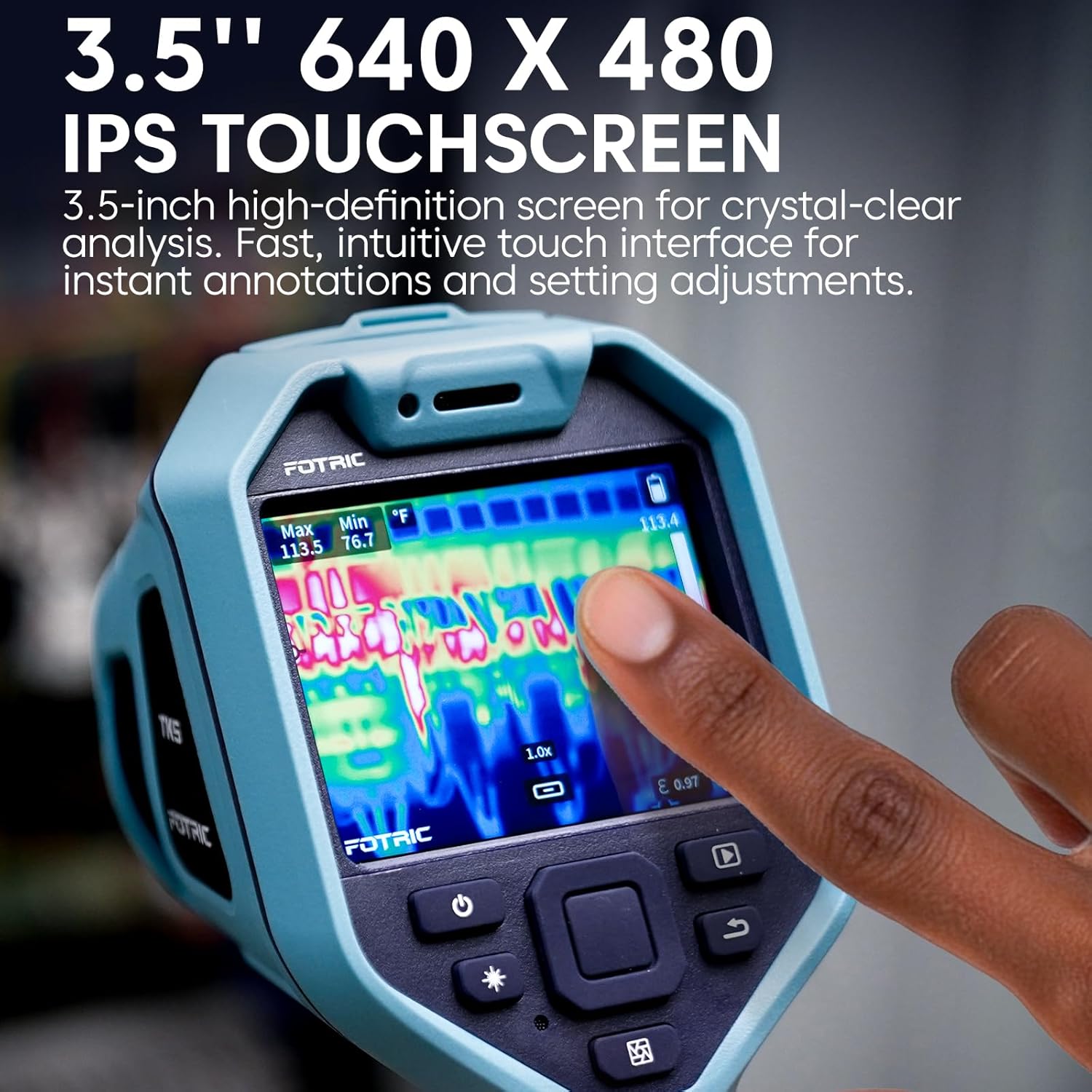

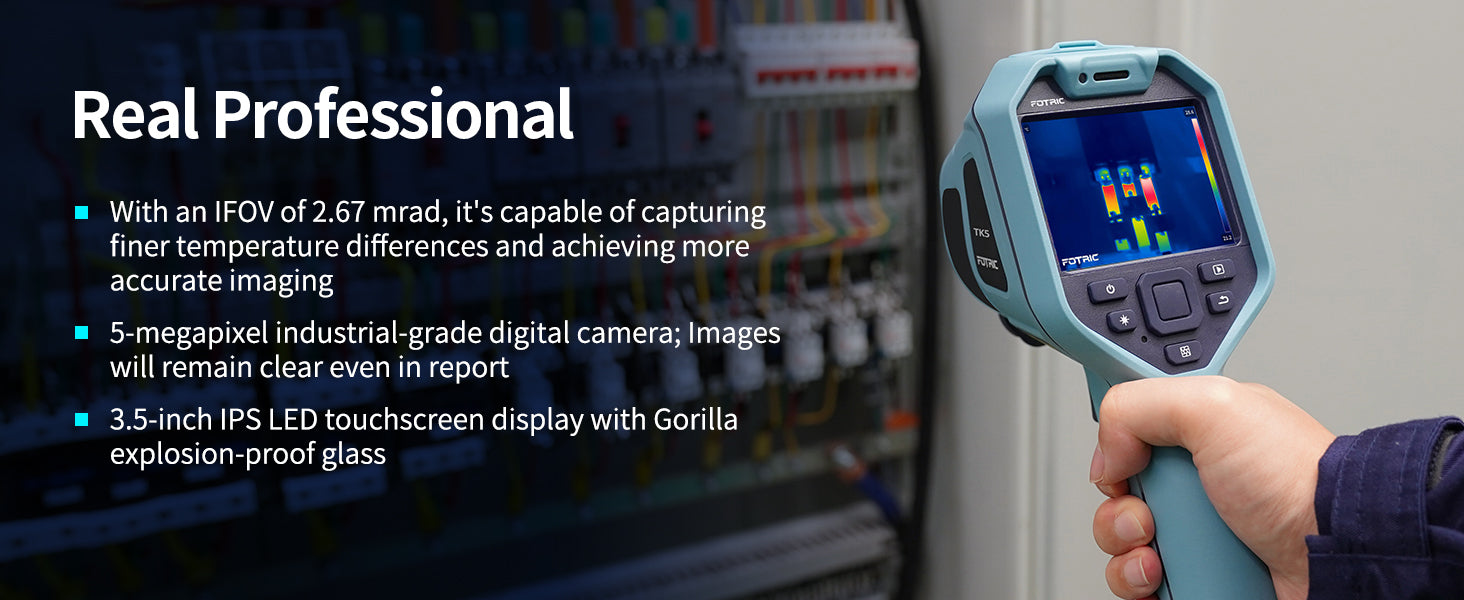

The TK5 features IP54 protection and 2-meter drop resistance tested to IEC 60068-2-32. Its 3.5-inch IPS touchscreen and 5MP visible camera support clear viewing and documentation in different working environments. Weighing only 0.72 kg (1.59 lb), it is easy to carry throughout the workday. -
Replaceable Battery, Professional Reporting, and 1-Year Warranty

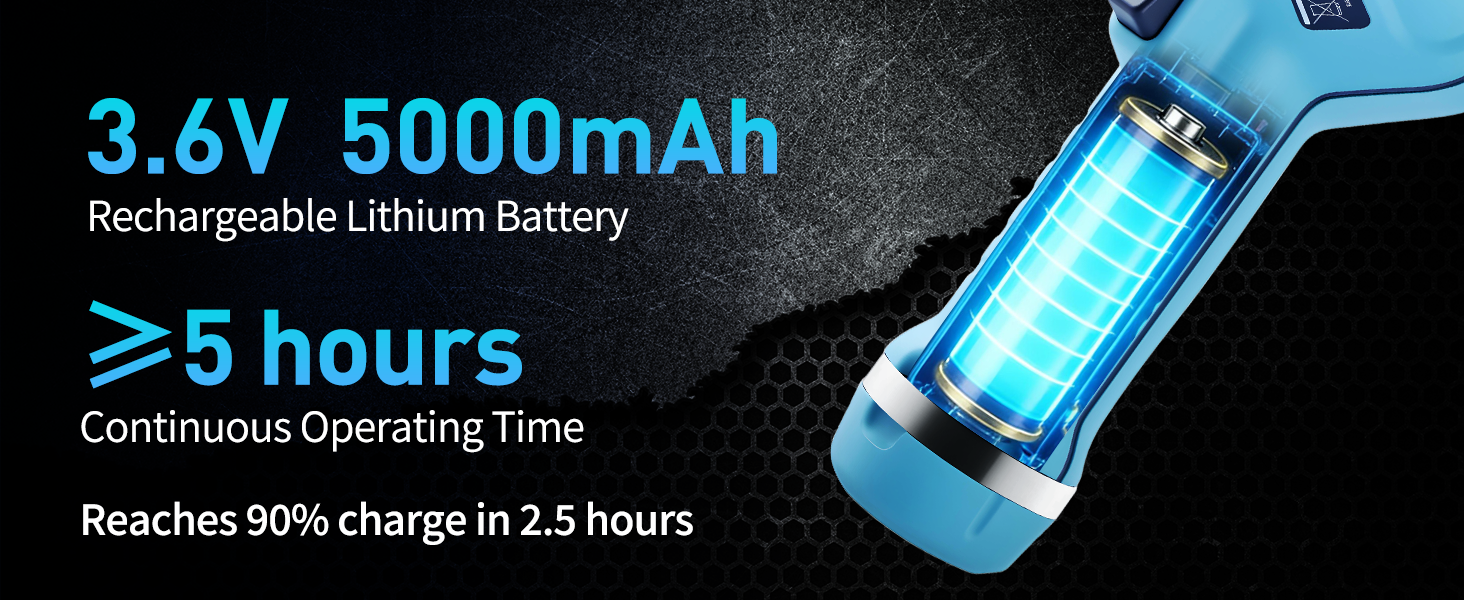

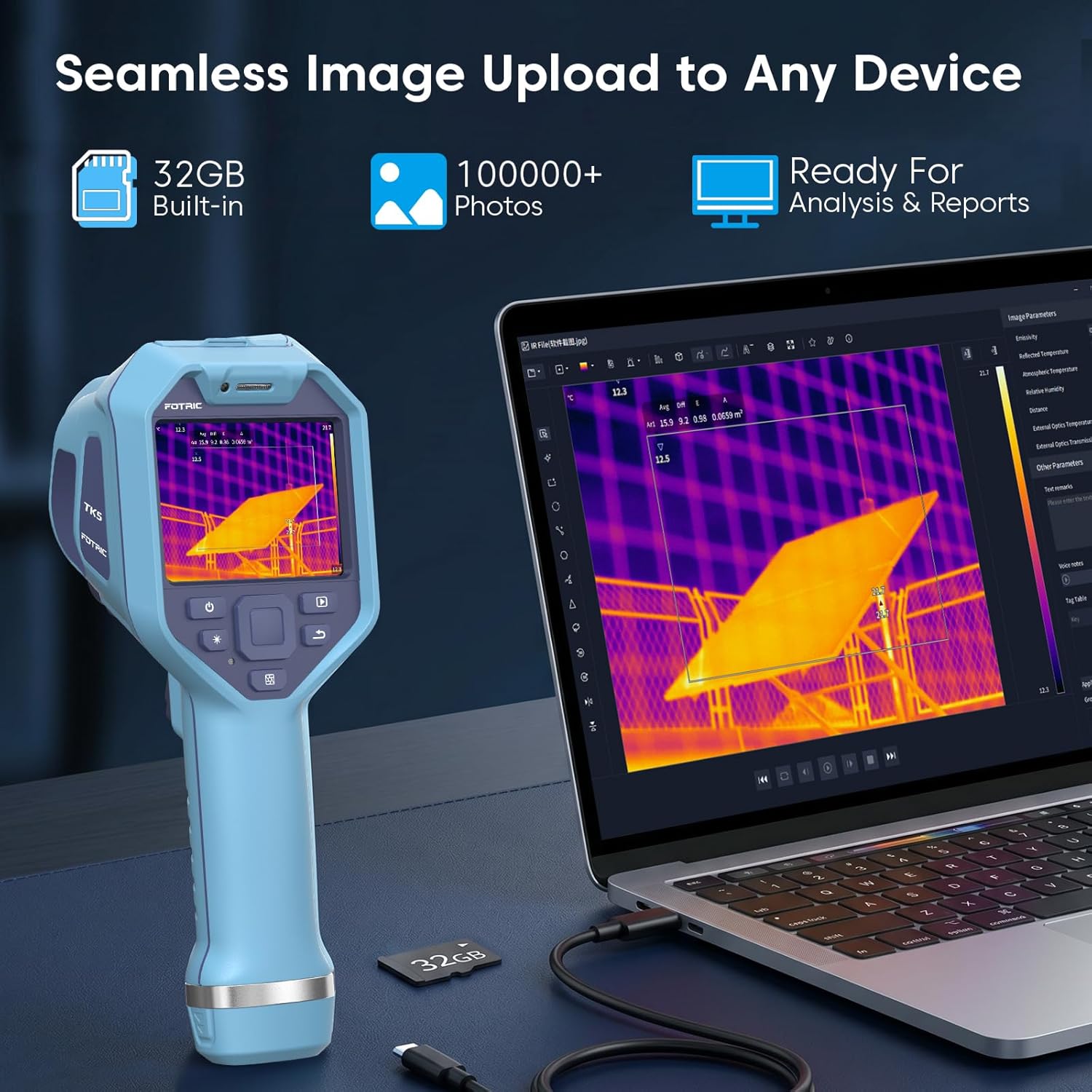

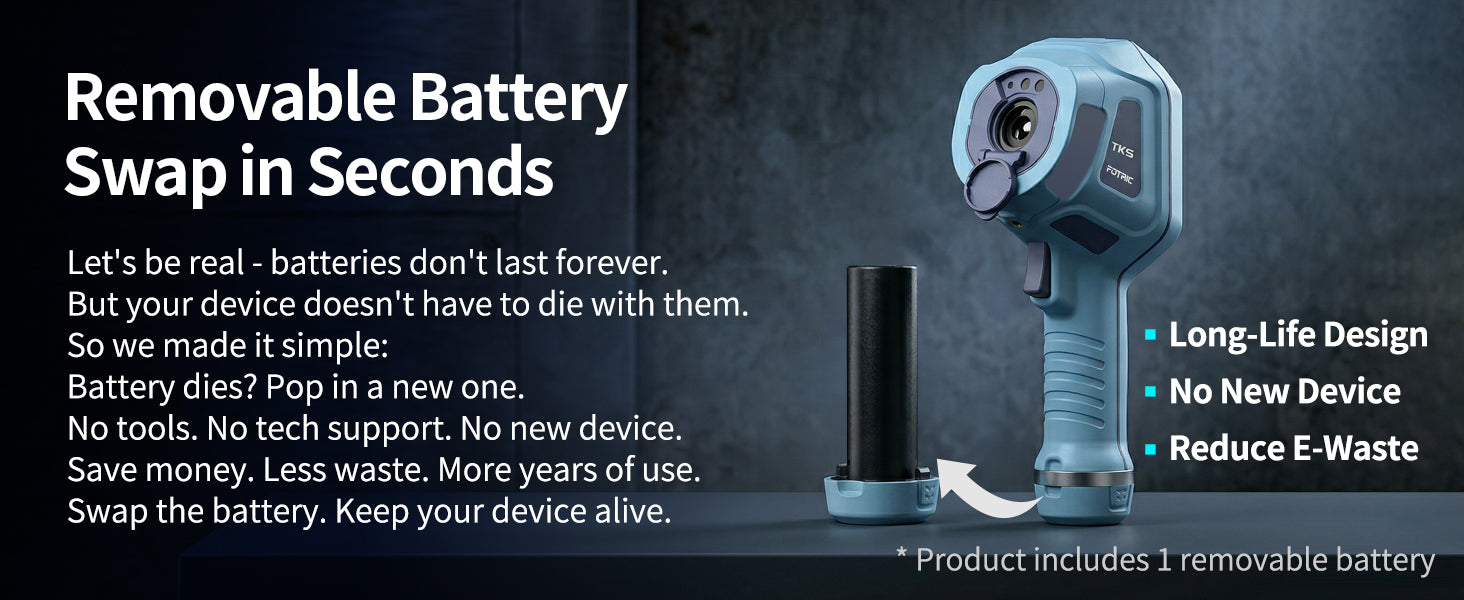

The removable 5000mAh lithium-ion battery provides more than 4 hours of continuous operation and supports USB-C charging, reaching a full charge in approximately 2.5 hours. Save radiometric JPG images to the included 32GB TF card and use FOTRIC AnalyzIR software for advanced analysis, documentation, and professional report generation. The complete unit is backed by a 1-year warranty.
Everything You Need, Right Out of the Box

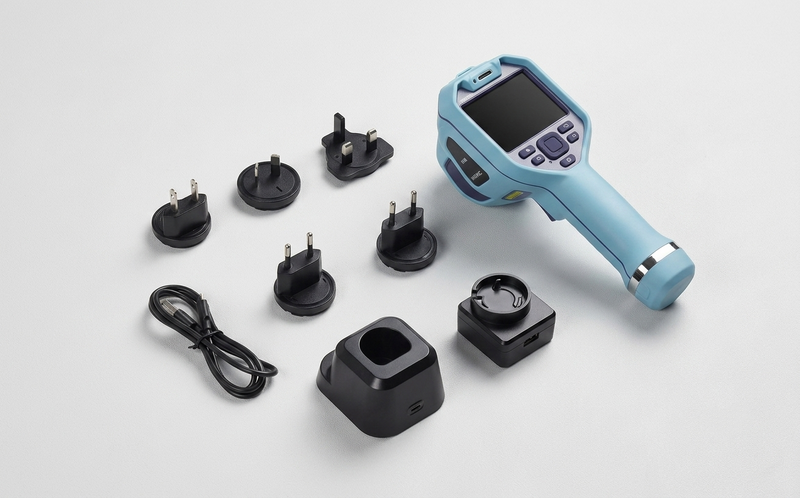

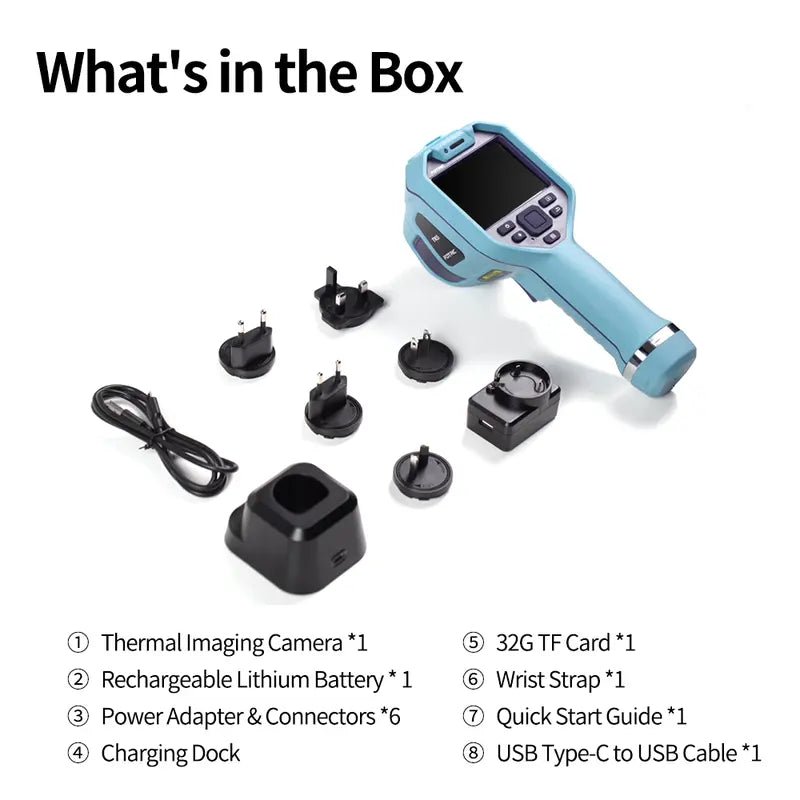

What's Included
- TK5 Thermal Imaging Camera
- Rechargeable Lithium Battery
- Power Adapter & Connectors (6 types)
- Charging Dock
- 32 GB TF Card
- Wrist Strap
- USB Type-C to USB Cable
- Quick Start Guide
Technical Specifications
IR Resolution
320×240
IR Detector Type
Uncooled FPA microbolometer, ceramic package
Detector Pitch
12 μm
Spectral Range
8 – 14 μm
Thermal Sensitivity (NETD)
≤ 40 mK @ 30°C
Field of View (FOV)
49° × 37°
Image Frame Rate
30 Hz
Focus Mode
Focus free
Temperature Range
-20°C – 450°C (-4°F – 842°F)
Measurement Accuracy
±2℃ (3.6℉) or ±2%, whichever is greater
Display

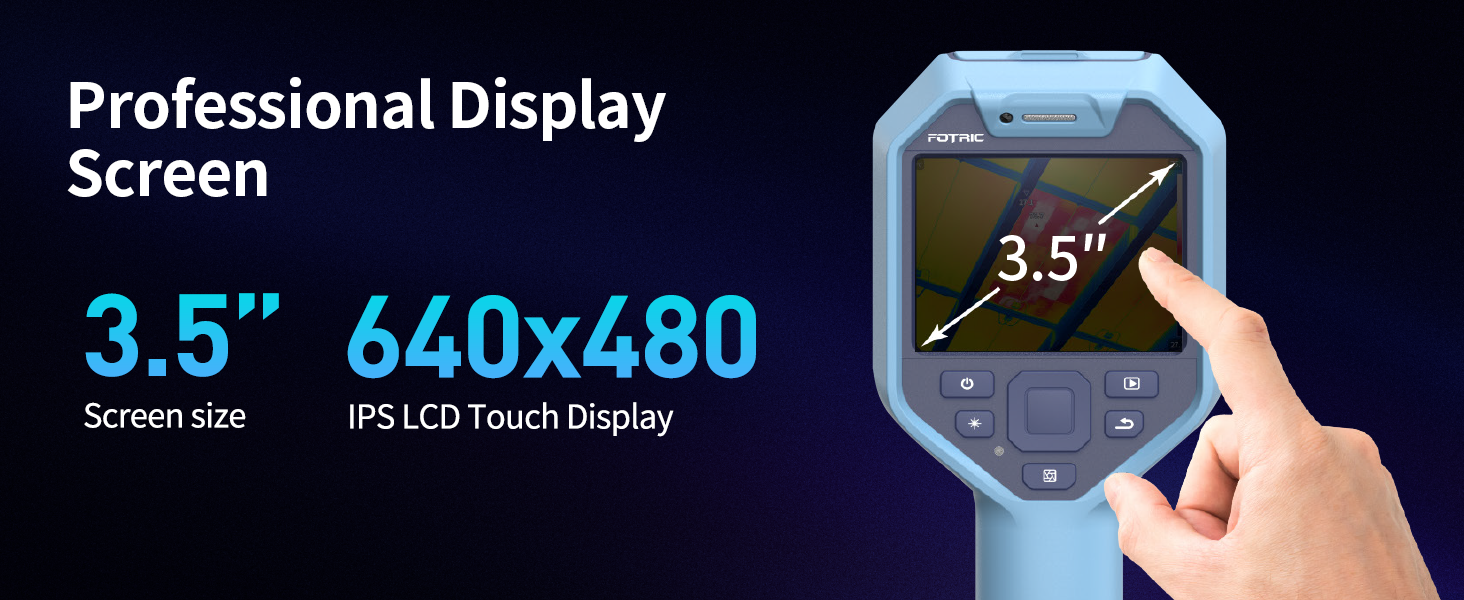

3.5" IPS LCD touchscreen
Image Modes
Infrared, T-DEF Fusion, Picture-in-Picture, Digital Camera
Battery
3.6 V, 5000 mAh Li-ion, ≥ 4 hours
Protection Rating
IP54, 2 m drop resistance
Weight
720 g
FAQ
FAQ
Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.
View All Support ResourcesIs 320×240 resolution enough, or should I pay more for higher resolution?
For most field inspections it's the professional sweet spot. 76,800 real pixels — each a genuine temperature reading, unlike budget cameras that interpolate fake pixels. Combined with 40 mK sensitivity and a 12 μm detector, it catches temperature differences as small as 0.04°C. Need more? The TK6/TK7/TK8 are there. But for daily electrical, HVAC, and building work, 320×240 gets it done.
What can I actually inspect with it?
- Electrical — panels, breakers, connections. Auto hot/cold spot tracker flags issues instantly.
- HVAC — duct leaks, coil performance, compressor checks. Covers -20°C to 450°C.
- Building — missing insulation, moisture intrusion, thermal bridging. Picture-in-Picture mode documents exactly where each issue is.
- Mechanical — motors, pumps, bearings, steam traps. Catch abnormal heat before it becomes downtime.
Do I need thermography training?
No. The TK5 is focus-free — sharp from 0.4 m to infinity, no focus ring needed. For pros, it still has adjustable emissivity, color alarms, and T-DEF fusion for report-ready images when you need them.
How accurate is it?
±2°C or ±2%, the professional standard. All images save as radiometric JPEGs — every pixel stores temperature data. Open them later in the free AnalyzIR® software and re-measure anything without going back to site.
Will it survive being dropped or used in dusty, wet conditions?
The TK5 is IP54-rated against dust ingress and water splashes, and has been tested to withstand 2-meter drops onto concrete. In real-world terms:
- Work in a dusty factory or an attic full of insulation? Dust won't get inside.
- Light rain on a roof inspection? Splashes are fine.
- Drop it off a ladder? It's designed to survive.
At 0.72 kg (1.59 lbs), it's light enough to carry all day and balanced well enough to operate one-handed while holding a ladder with the other.
How long does the battery last?

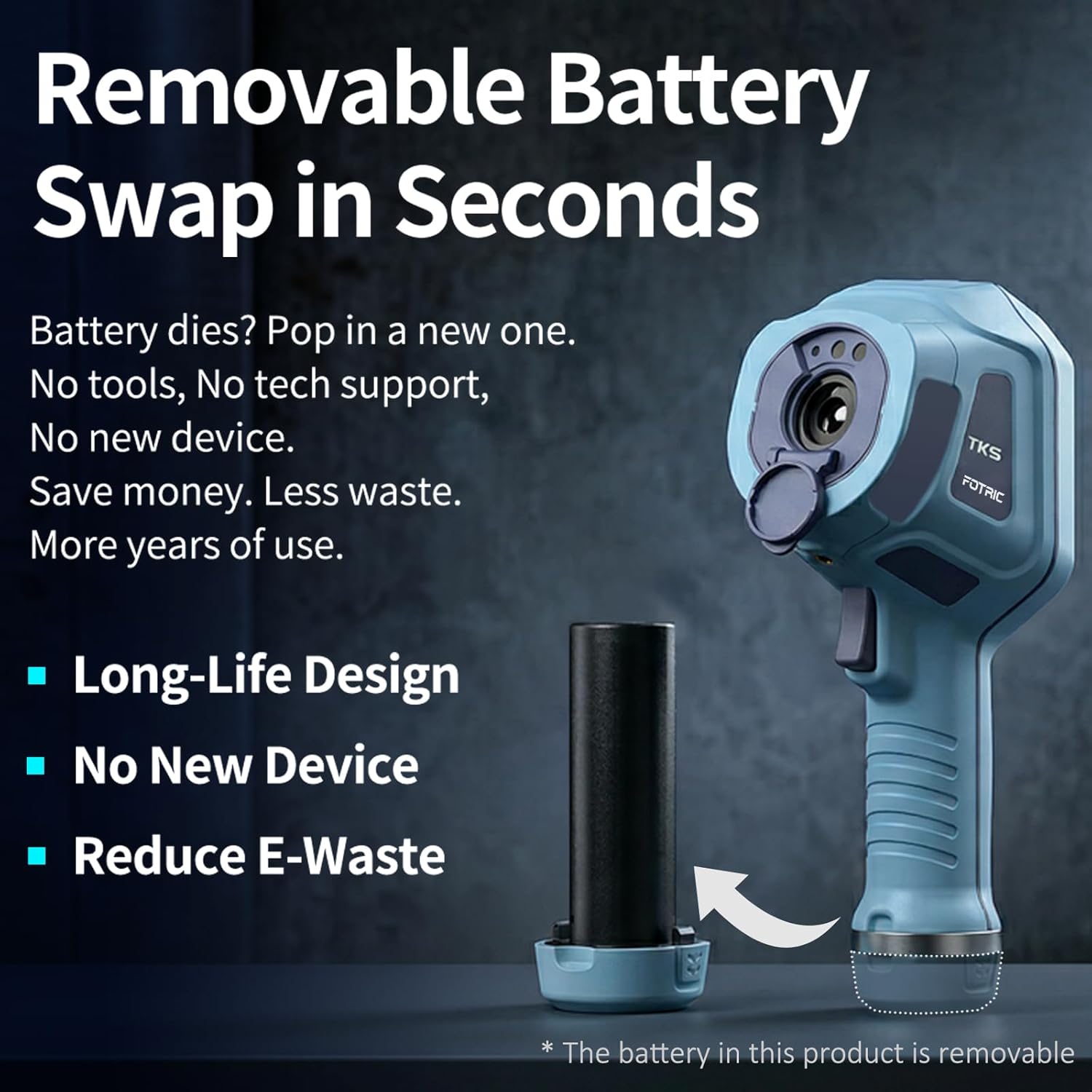

4+ hours per charge. The battery is field-replaceable — pop it open, swap in a spare, keep working. USB-C fast charging gets you a full recharge in 2.5 hours. One spare battery covers a full workday.
How is this different from the cheaper thermal cameras I see online?
The thermal camera market has two very different tiers, and the gap matters:
- Cheap consumer-grade cameras (under $300) typically use small detectors with low native resolution, limited temperature range, and no meaningful accuracy spec. They're fine for finding a draft around a window, but not for professional diagnostics or reportable measurements.
- The TK5 is a professional instrument: genuine 320×240 resolution (not interpolated), ±2°C accuracy you can put in a report, radiometric image files for post-analysis, IP54 durability, and a removable battery that can be swapped in the field. It also includes AnalyzIR® PC software at no extra cost — a tool that many competitors charge a subscription for.
If you're being paid to find problems and your reputation depends on getting it right, the TK5 pays for itself in the first few jobs you don't have to redo.
