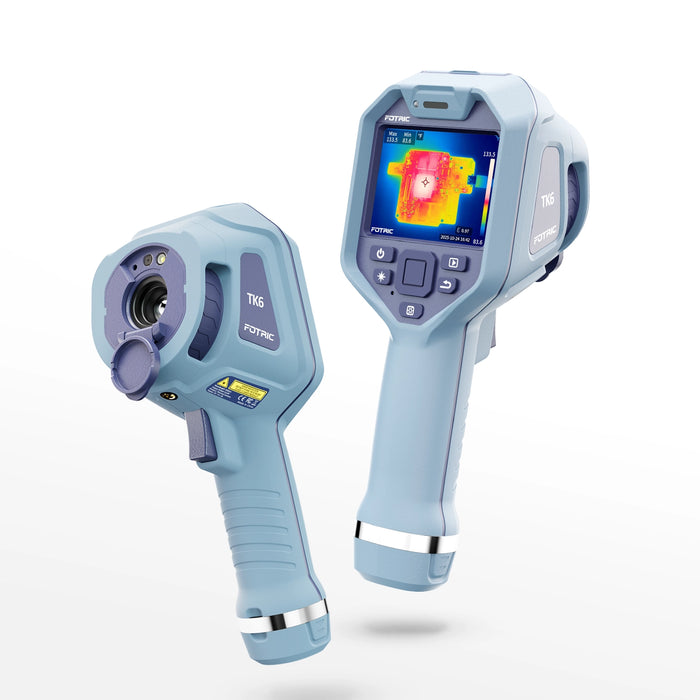

The FOTRIC TK6 is a professional handheld thermal camera designed to help inspectors, technicians, and advanced DIY users quickly locate electrical faults, equipment overheating, building energy loss, and other hidden temperature-related problems.

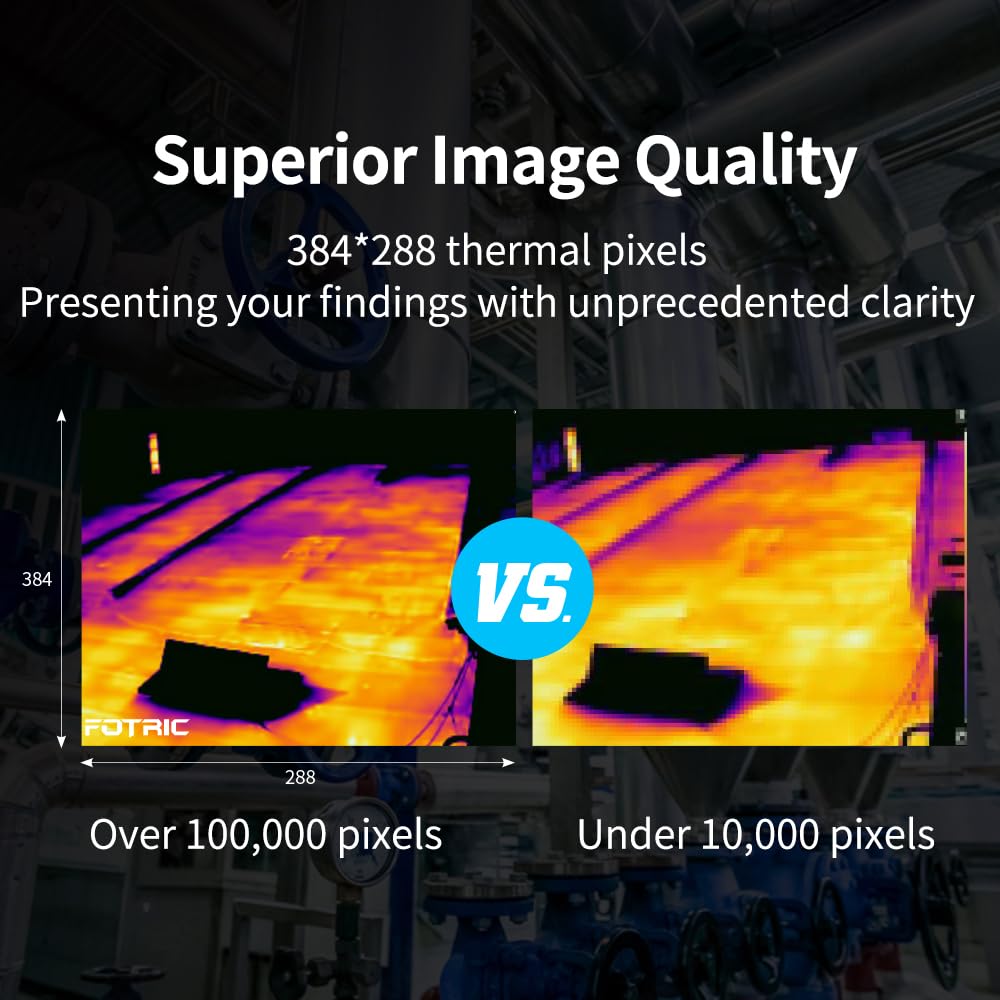

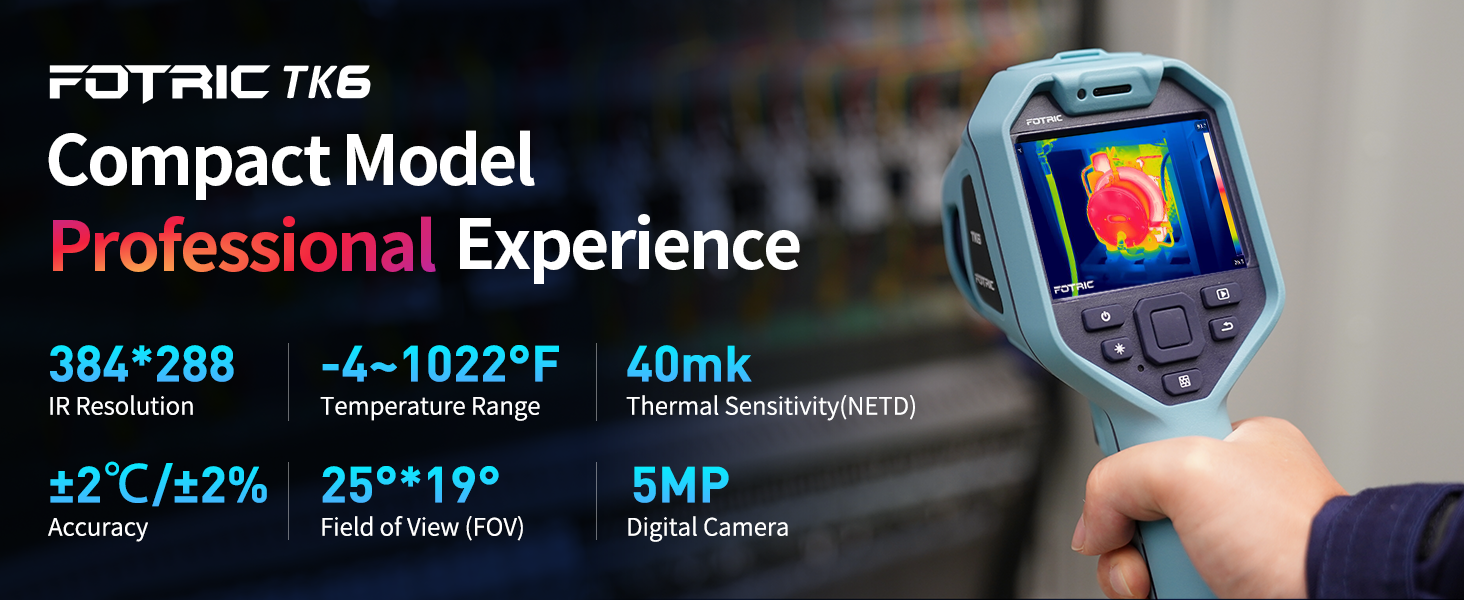

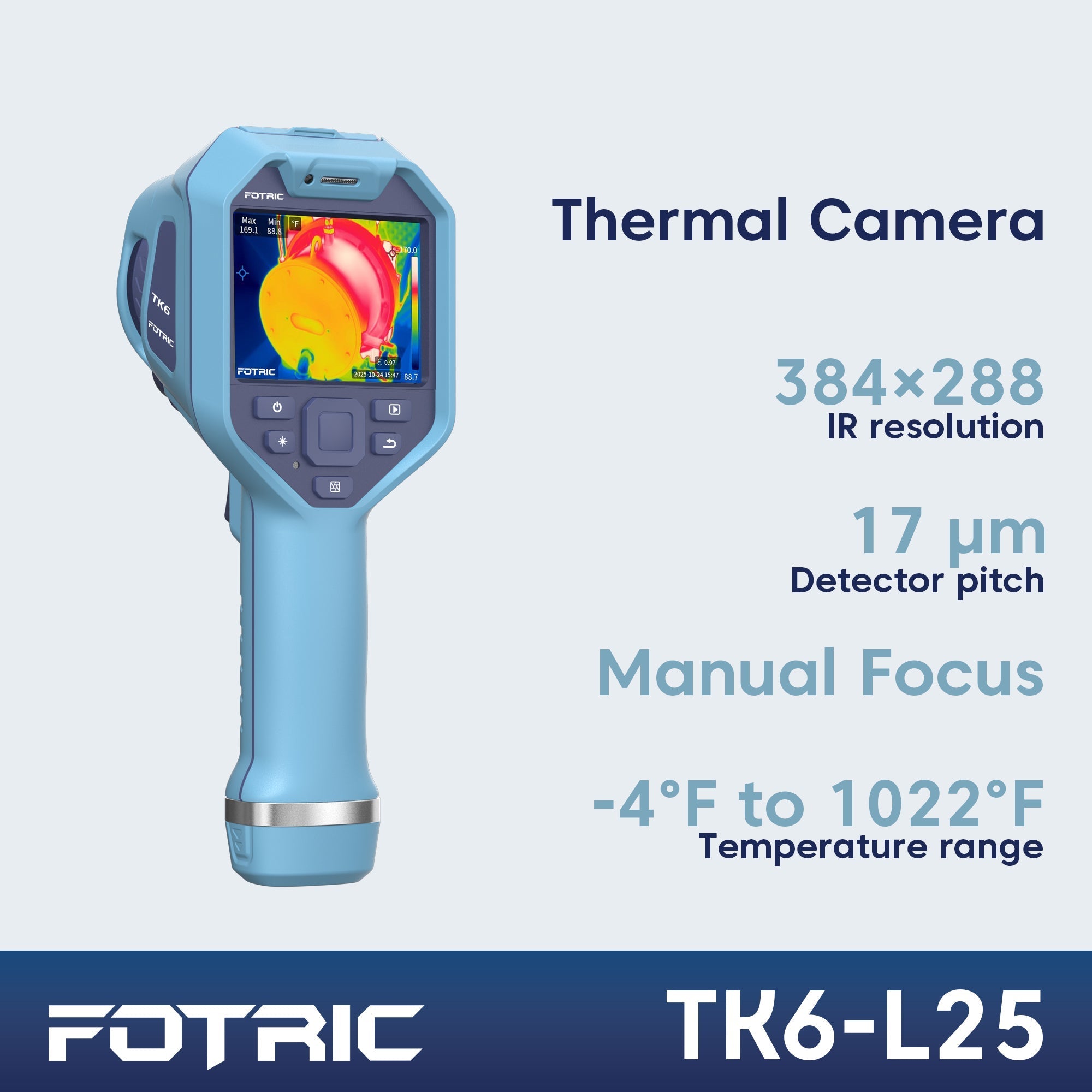

• True 384 × 288 Thermal Imaging with 40mK Sensitivity

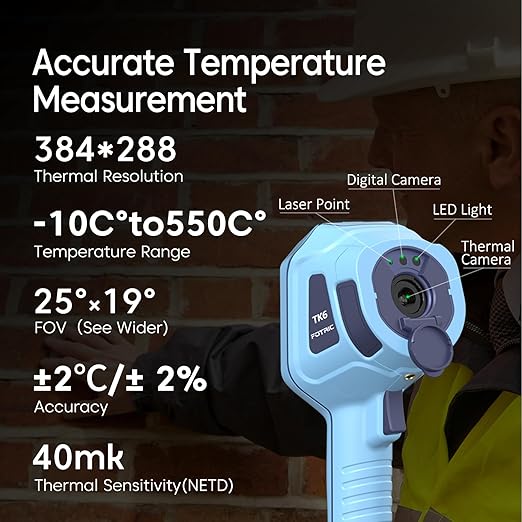

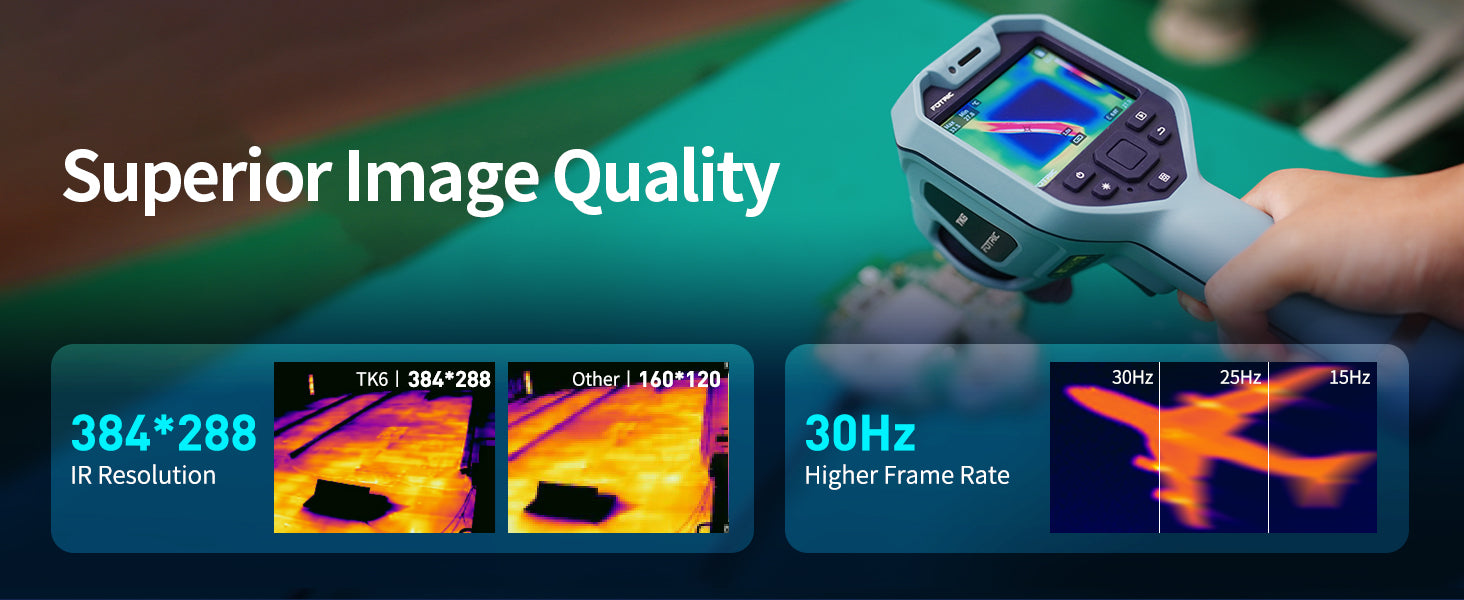

  The FOTRIC TK6 captures sharp thermal images with 110,592 native infrared pixels. Its 40mK thermal sensitivity reveals temperature differences as small as 0.04°C, while the 25° × 19° field of view and 1.14 mrad spatial resolution provide an effective balance of coverage and detail. A 30Hz frame rate ensures smooth real-time inspection.

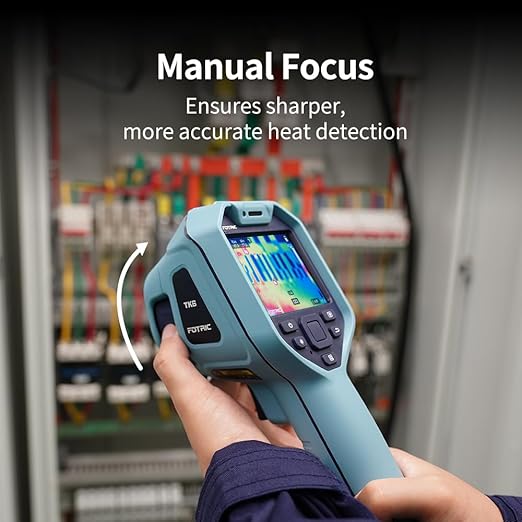

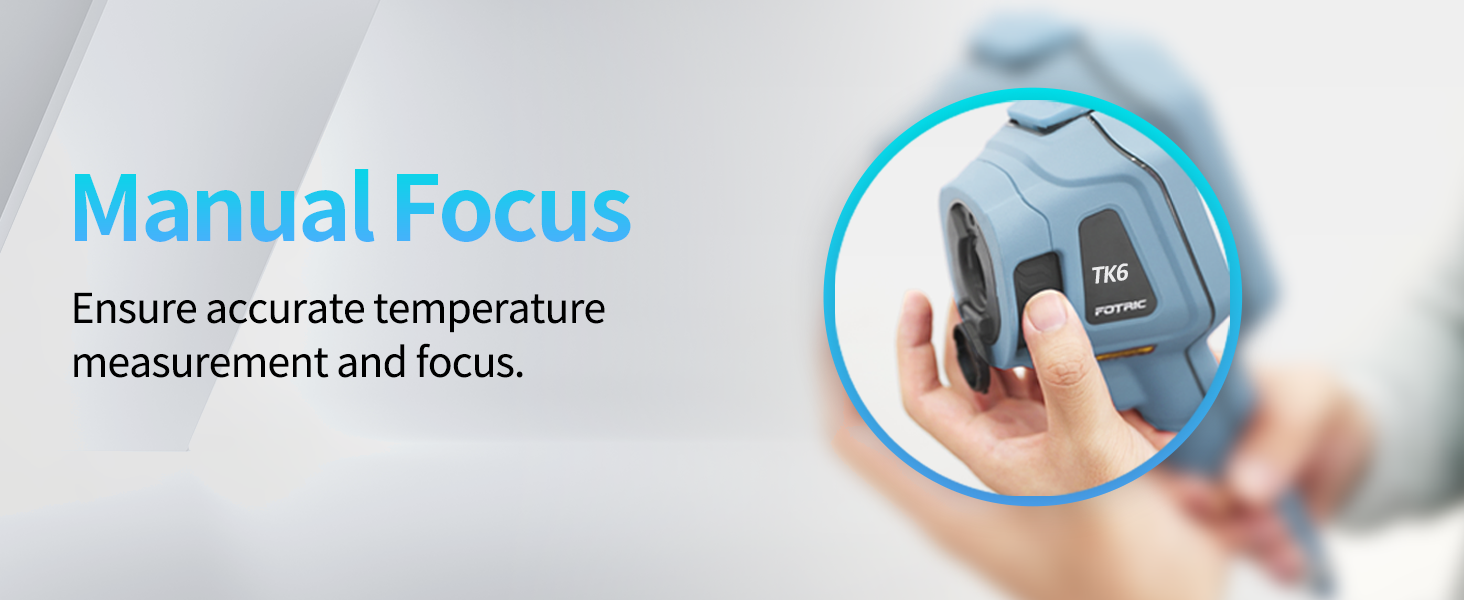

• Precise Manual Focus from 0.15 m
  The manually adjustable lens delivers clear thermal images across different working distances. With a minimum focus distance of 0.15 m, the TK6 is suitable for close-up inspection of SMD components and circuit boards, as well as electrical panels, mechanical equipment, building systems, and other larger targets.

• Built for Electrical, HVAC, Building, Solar, and Industrial Inspections

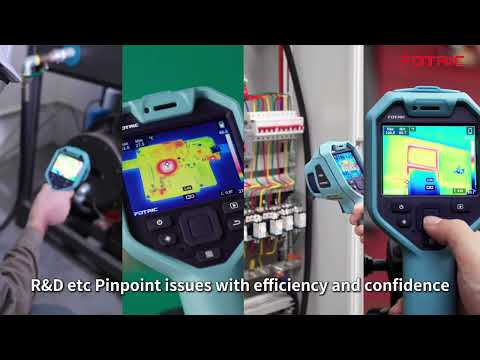

  Locate abnormal heat patterns in electrical panels, wiring, connections, motors, bearings, and other operating equipment. Inspect HVAC performance, insulation gaps, moisture-related thermal patterns, and areas of energy loss. The TK6 can also help identify temperature irregularities in photovoltaic modules, PCBs, and industrial machinery before they develop into costly failures.

• Advanced On-Device Measurement and Analysis
  Perform detailed analysis directly on the camera using up to 20 spot, 10 line, and 10 area measurements. Adjustable emissivity, ambient temperature, reflected temperature, and IR-window transmission settings help improve measurement reliability across different materials and inspection environments.

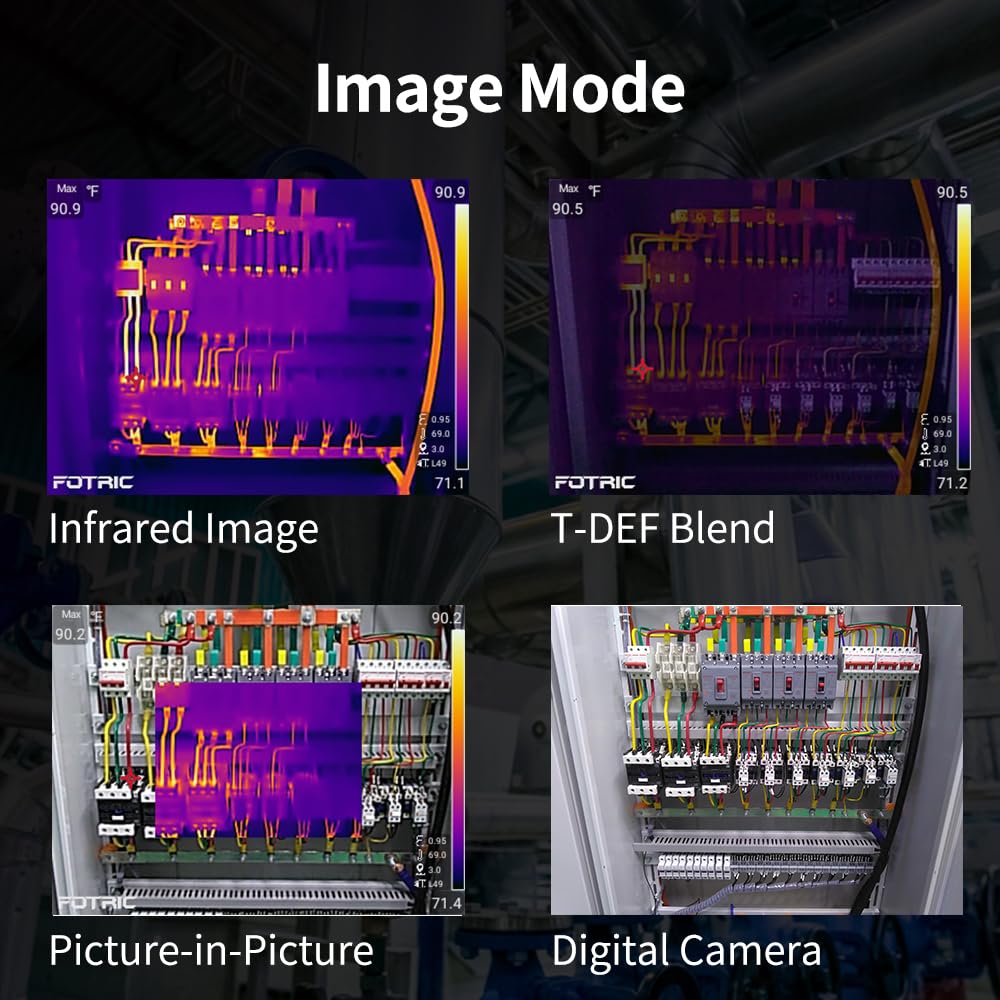

• T-DEF Fusion and T-TWB for Faster Problem Location

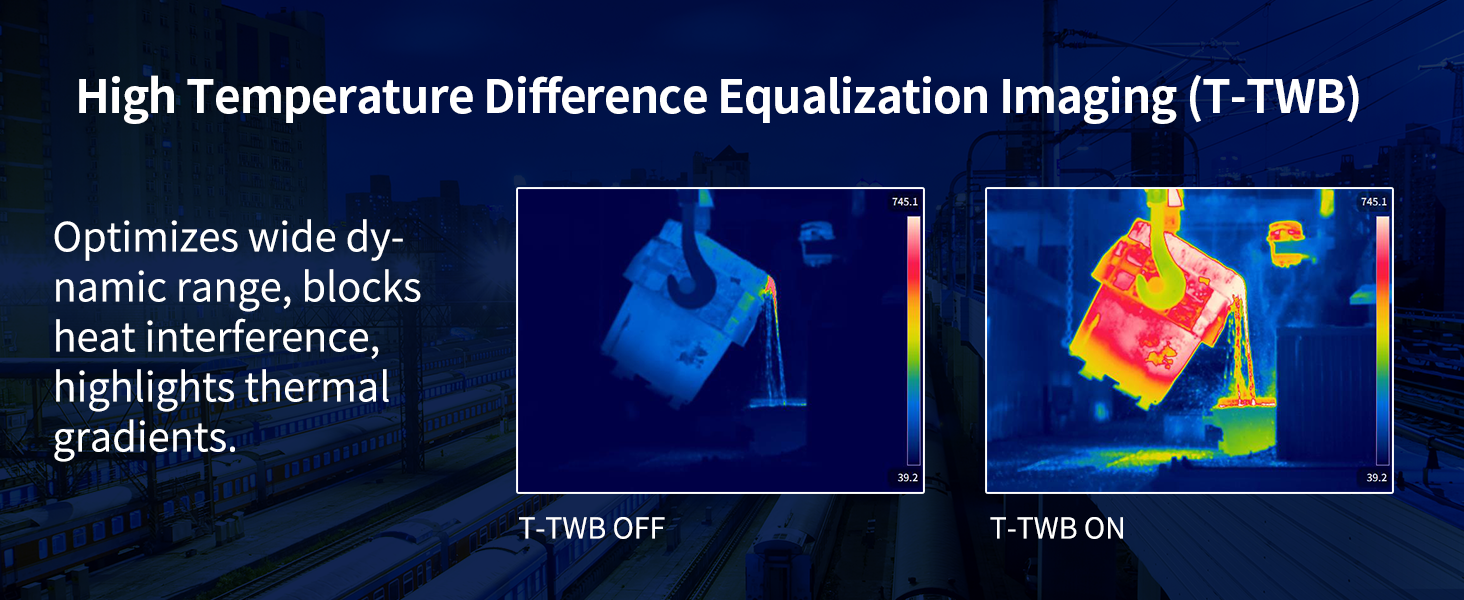

  T-DEF Fusion combines the 5MP visible image with the thermal image and allows transparency adjustment from 0% to 100%, making it easier to match thermal abnormalities with the correct physical component. T-TWB automatically optimizes the thermal color scale based on the scene’s temperature distribution for clearer, more intuitive interpretation.

• Rugged and Portable for Field Inspections

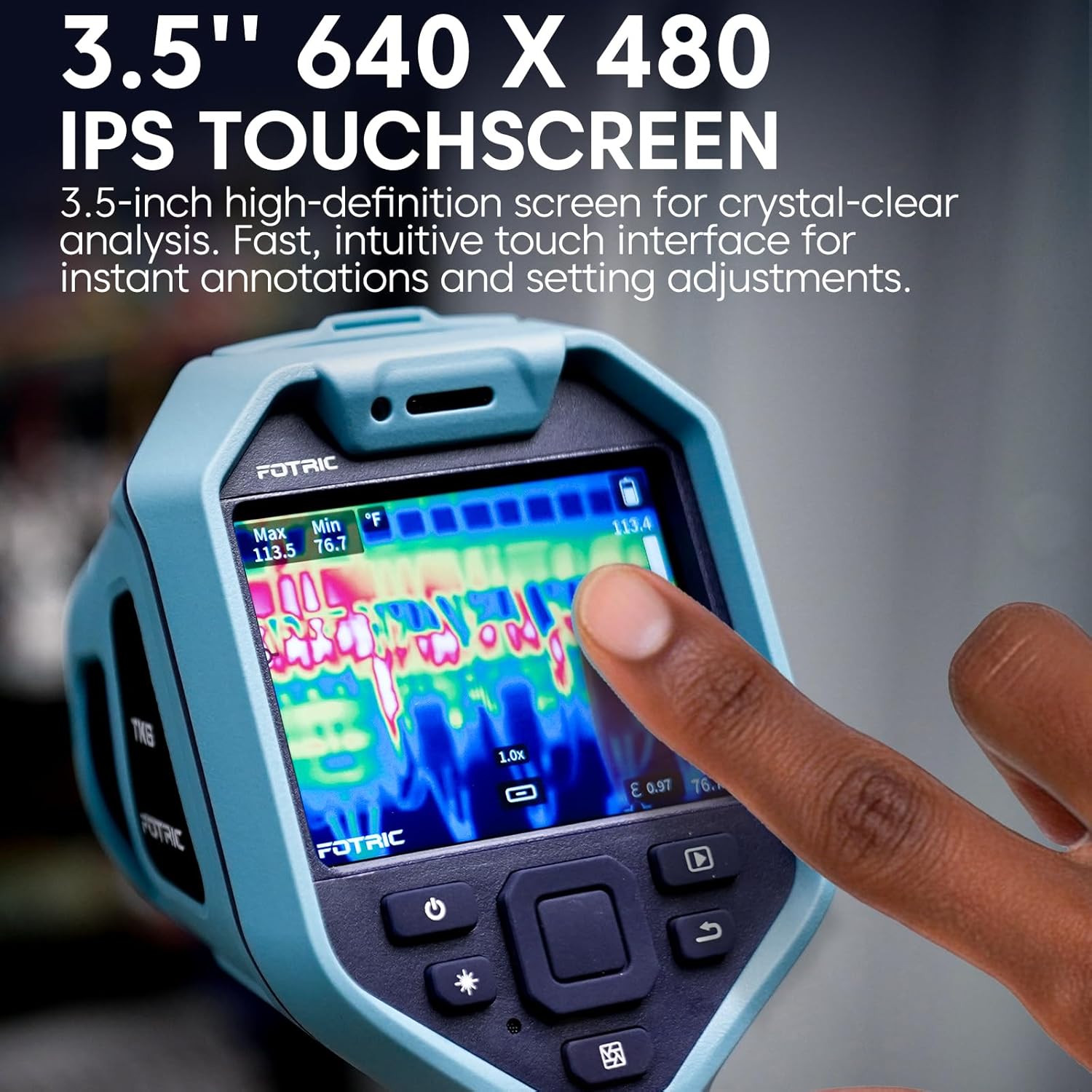

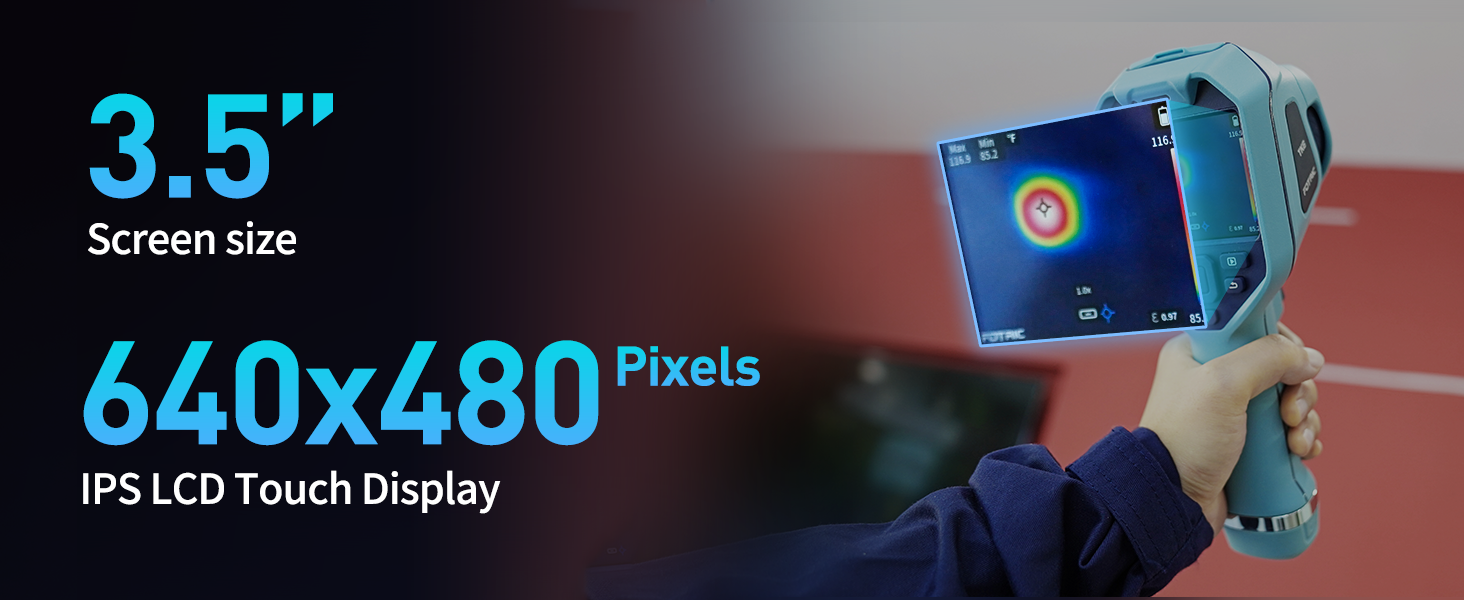

  Built for demanding work environments, the TK6 features IP54 protection and 2-meter drop resistance tested to IEC 60068-2-32. Its 3.5-inch Gorilla Glass touchscreen remains easy to operate in the field. Weighing only 0.72 kg (1.59 lb), it is compact enough for everyday maintenance and inspection work.

• Replaceable Battery and Professional Reporting

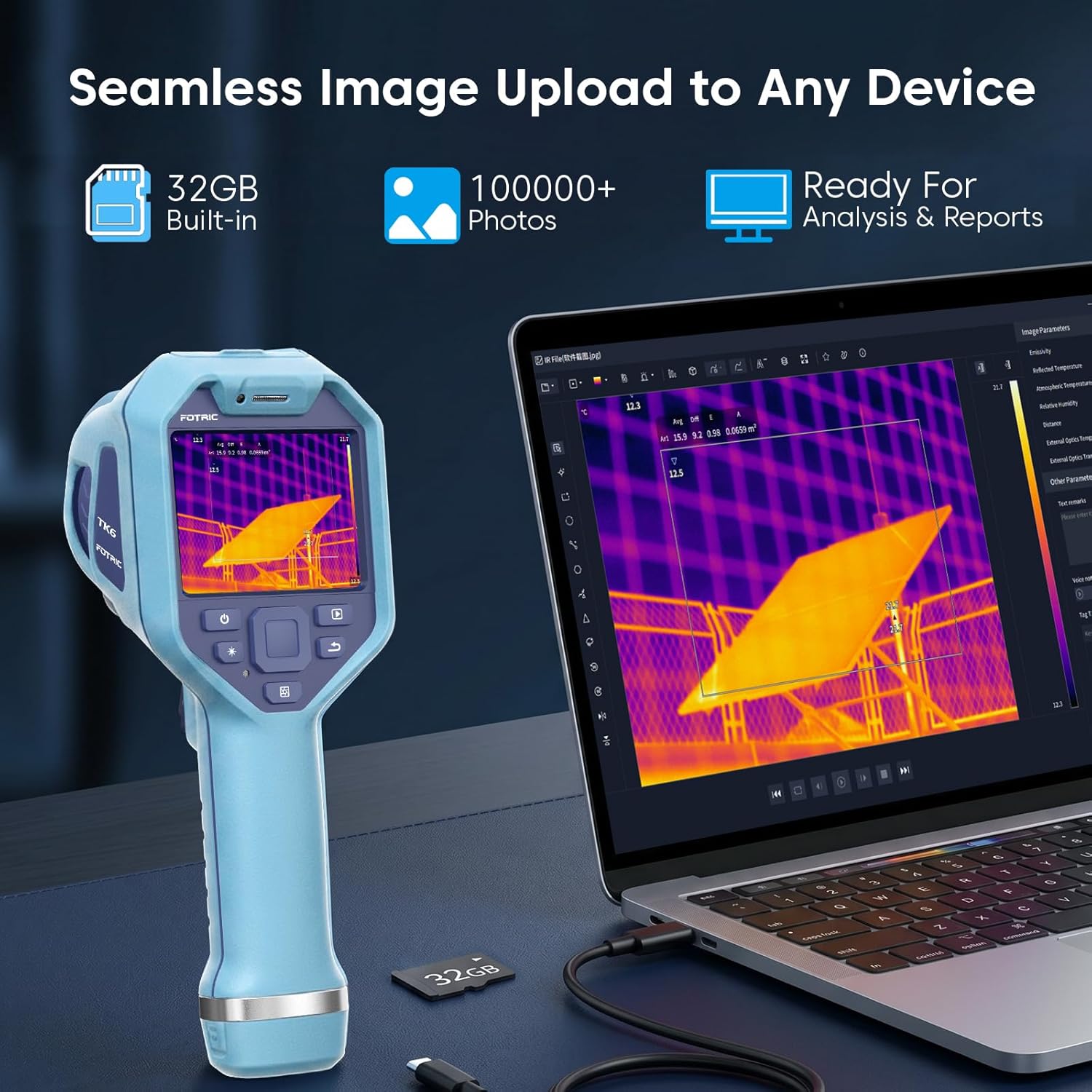

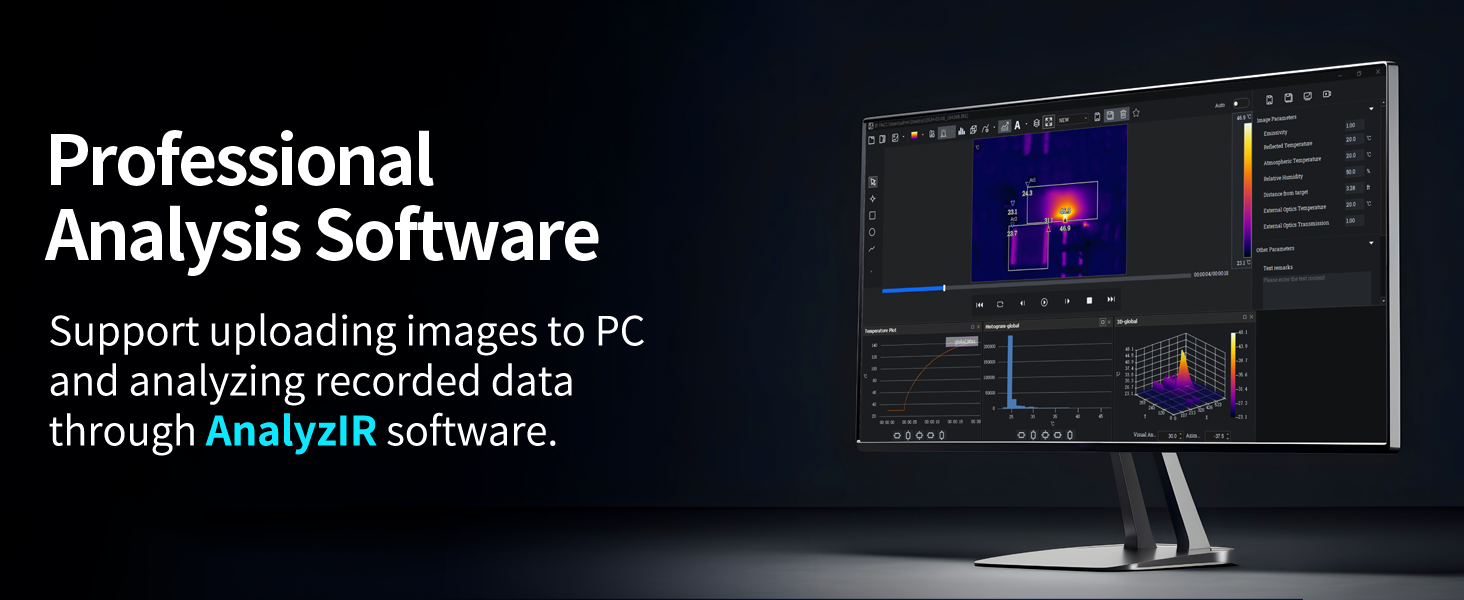

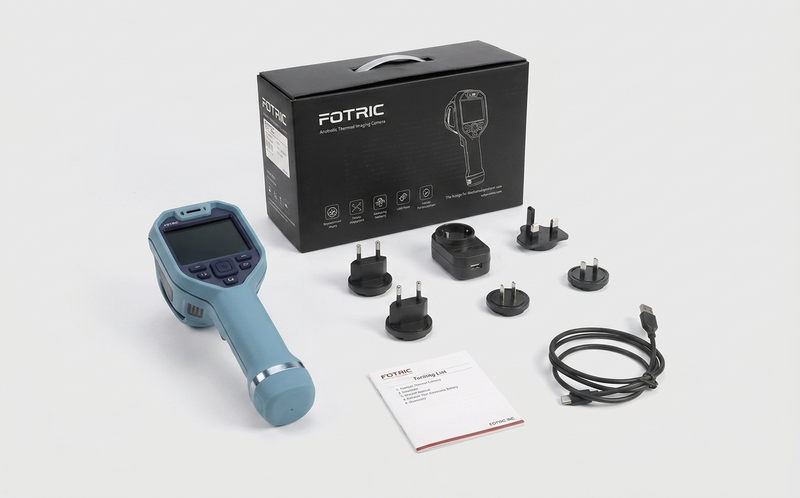

  The removable 5000mAh lithium-ion battery provides more than 4 hours of continuous operation and supports USB-C charging, reaching a full charge in approximately 2.5 hours. Save thermal images to the included 32GB TF card and use FOTRIC AnalyzIR software for advanced analysis, documentation, and professional report generation.
