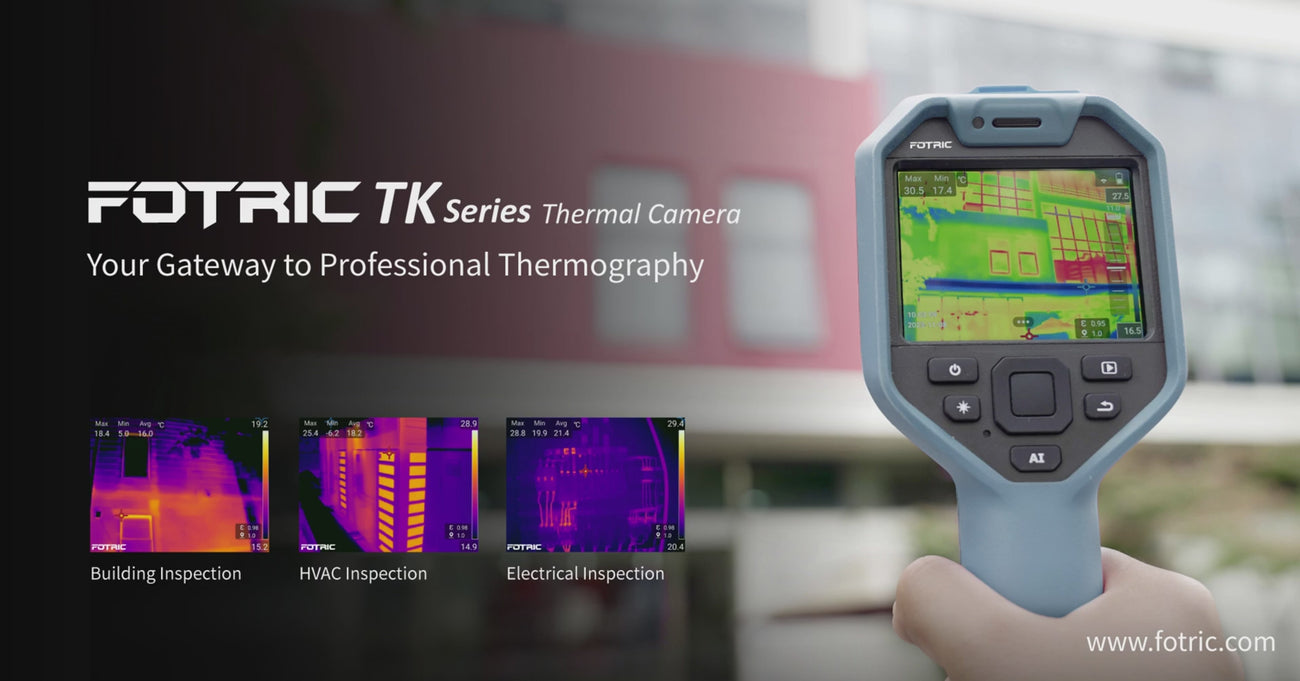

FOTRIC TK7 Thermal Imaging Camera
€1.499,00
FOTRIC TK7 Thermal Imaging Camera
FotricFOTRIC TK7 Thermal Imaging Camera, 384 x 288 IR Resolution , 49°*37° FOV, Focus free Thermal Imager with 8MP Visual Camera for Building, Electrical Inspections, -4°F to 1022°F, 3.5" Touch Screen
- Regular price
- €1.499,00
- Sale price
- €1.499,00
- Regular price
-
Tax included.
Shipping calculated at checkout.
-

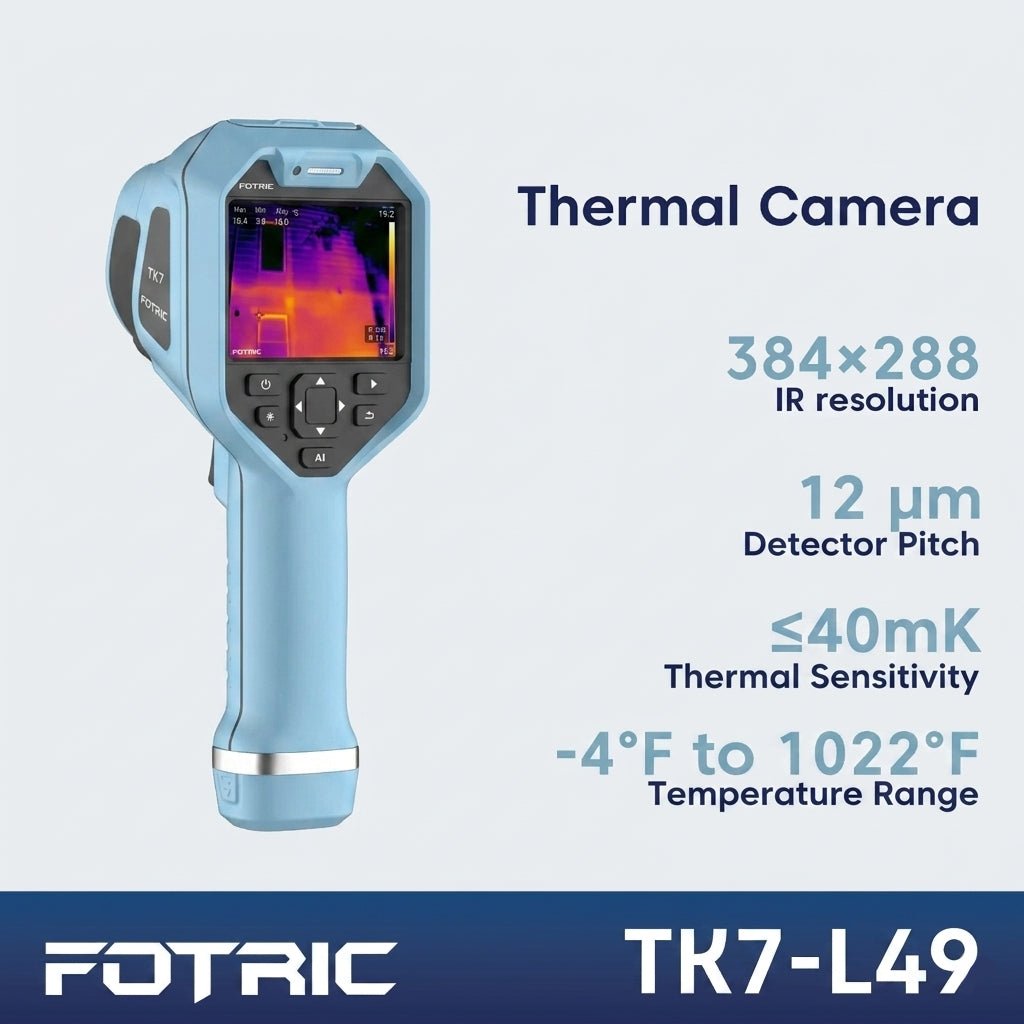

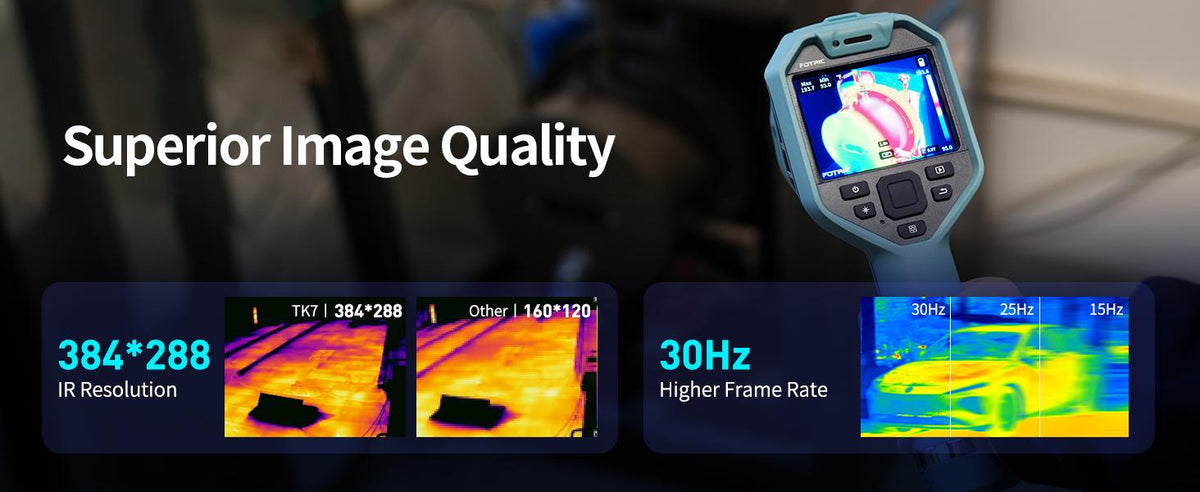

Clear Thermal Imaging with True 384 × 288 Resolution
Equipped with a true 384 × 288 infrared detector and a wide 49° × 37° field of view, TK7 delivers clear thermal images for fast scanning and general inspection tasks. The focus-free design allows users to capture thermal images instantly without manual adjustment. -
Ideal for Everyday Inspection Applications
Designed for routine electrical, mechanical, HVAC, and building inspections, TK7 helps quickly identify overheating components, insulation issues, and abnormal temperature patterns—enabling efficient, non-contact fault detection. -

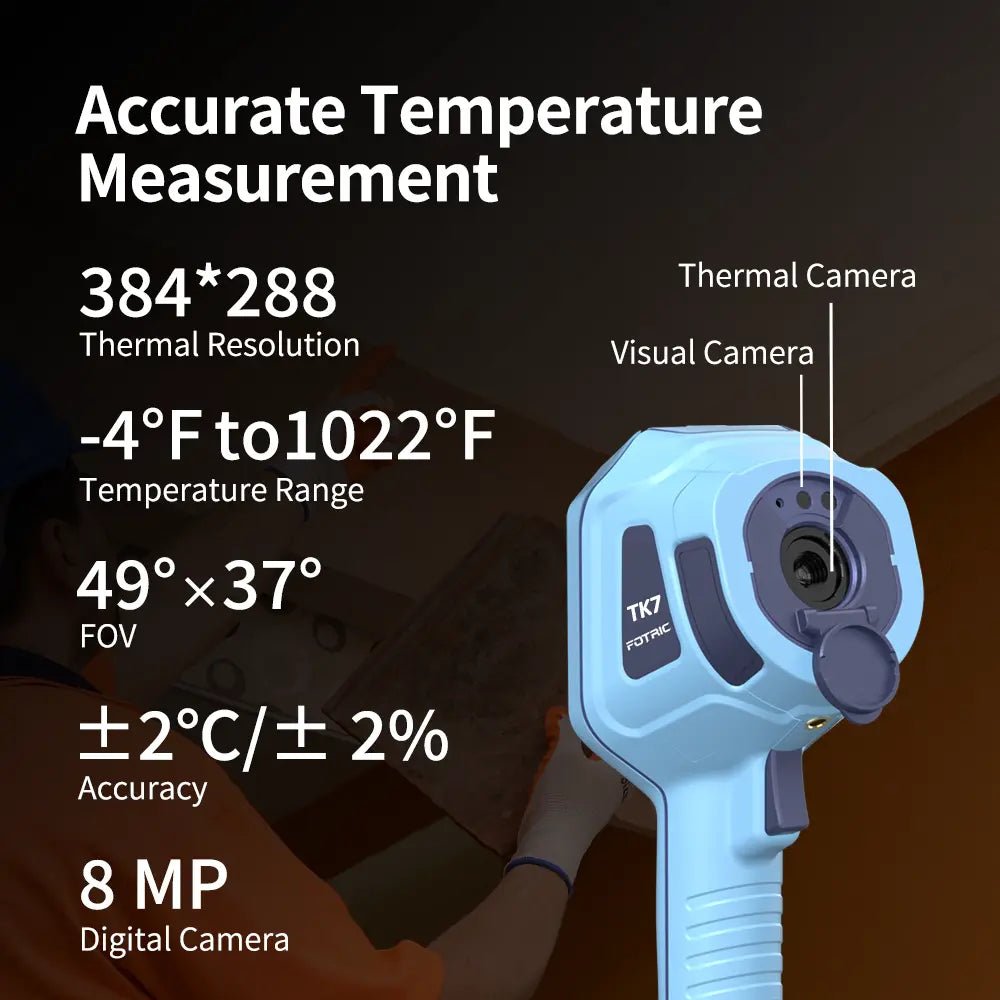

Wide Temperature Measurement Range
Covers a broad temperature range from −4 °F to 1022 °F (−20 °C to 550 °C), making it suitable for a variety of industrial and maintenance scenarios, from low-temperature environments to high-heat equipment checks. -
Thermal & Visual Image Fusion
Features an 8-megapixel visual camera that works alongside thermal imaging, providing clear visual references to improve inspection accuracy and reporting clarity. -
Touchscreen Operation in a Compact Design
The 3.5" touchscreen offers intuitive operation and clear visualization of thermal data, while the lightweight, handheld form factor makes TK7 easy to carry and use for daily inspections.

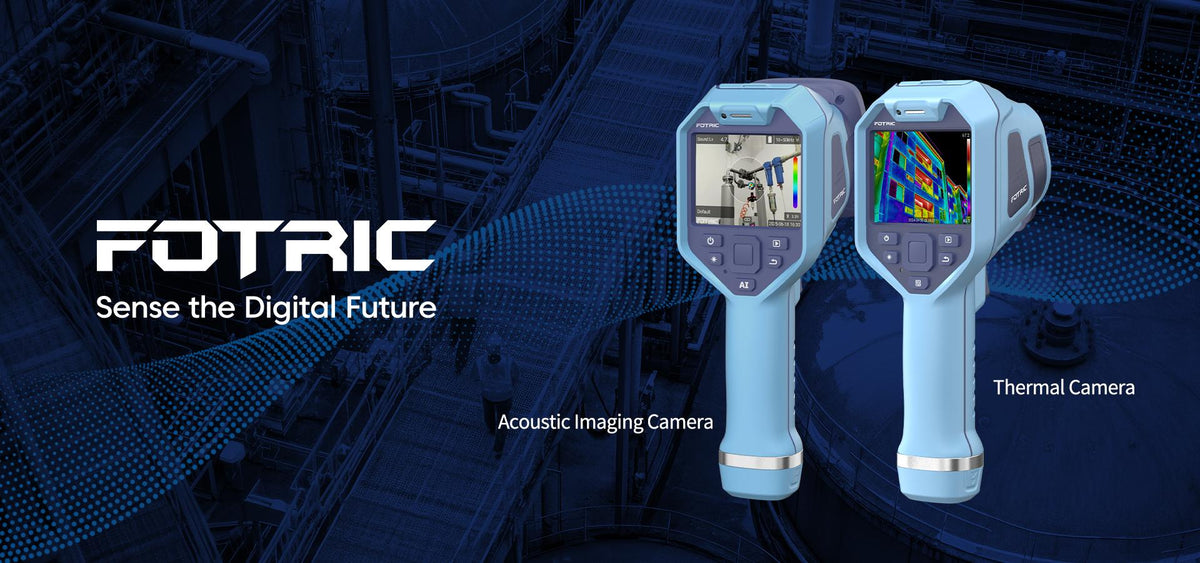

FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.

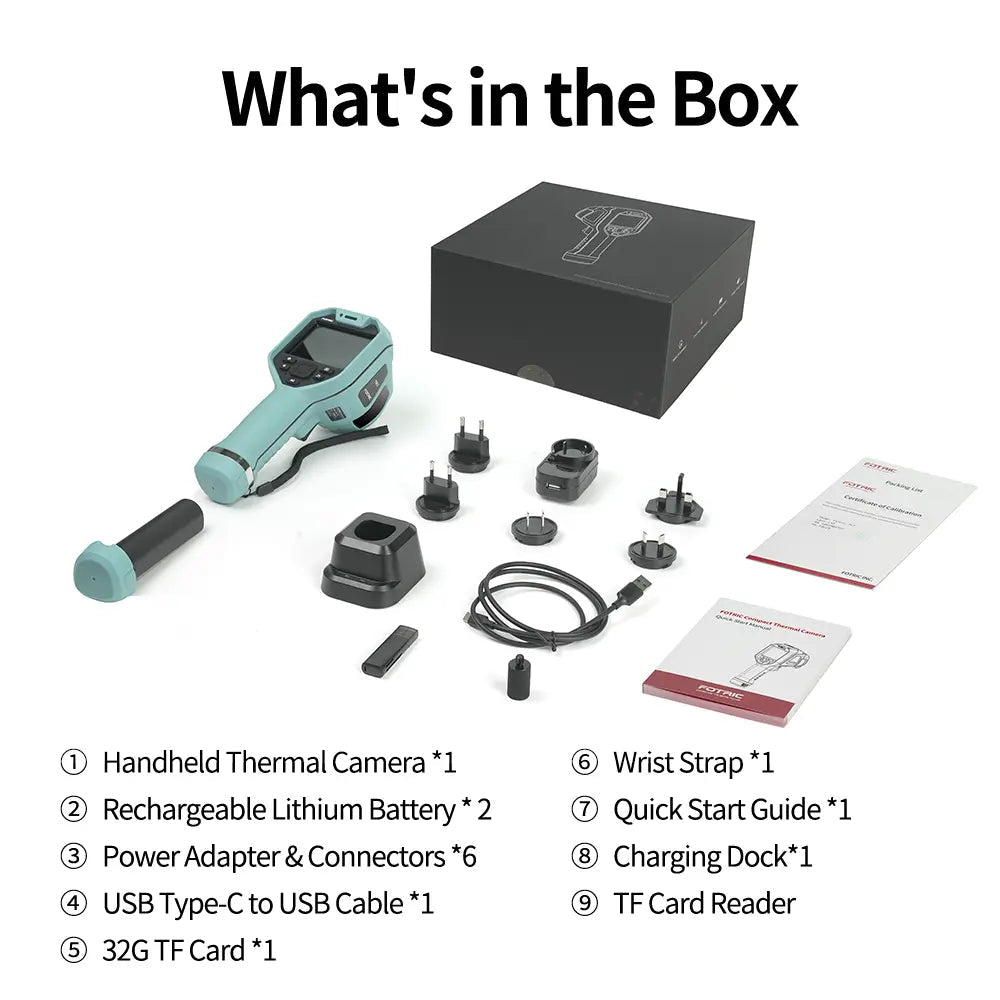

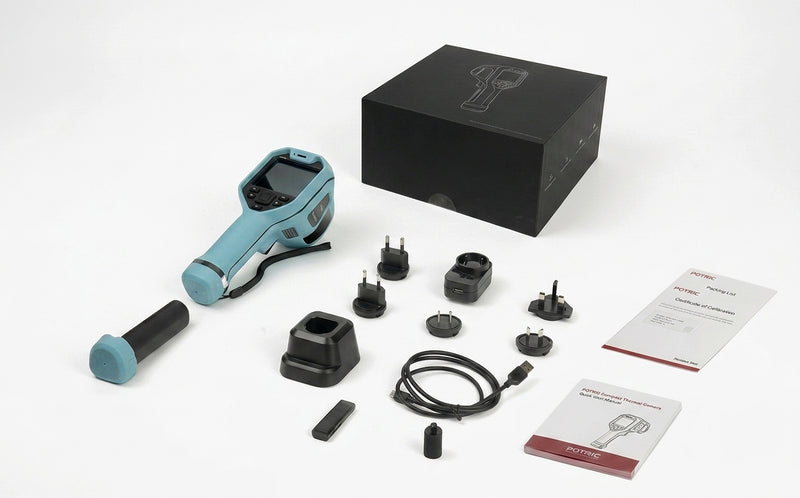

Everything You Need, Right Out of the Box
What's Included
- TK7 Handheld Thermal Camera
- Rechargeable Lithium Battery (2x)
- Power Adapter & Connectors (6 types)
- Charging Dock
- USB Type-C to USB Cable
- 32 GB TF Card
- TF Card Reader
- Wrist Strap
- Quick Start Guide

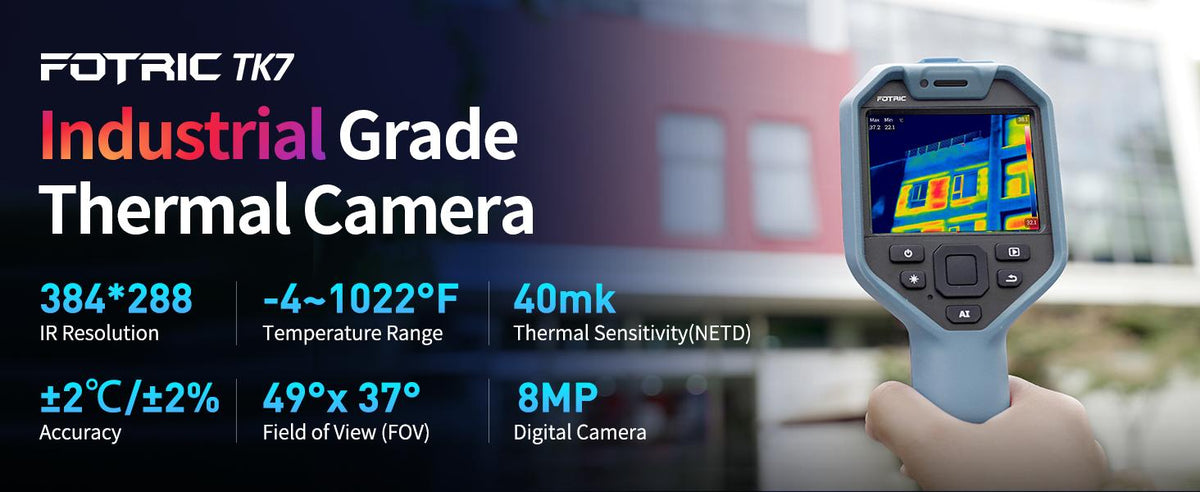

Technical Specifications
IR Resolution
384 × 288
Thermal Sensitivity (NETD)
40 mK @ 30°C
Field of View (FOV)
49° × 37°
Focus Mode
Focus free
Image Frame Rate
40 Hz
Digital Camera
8 MP

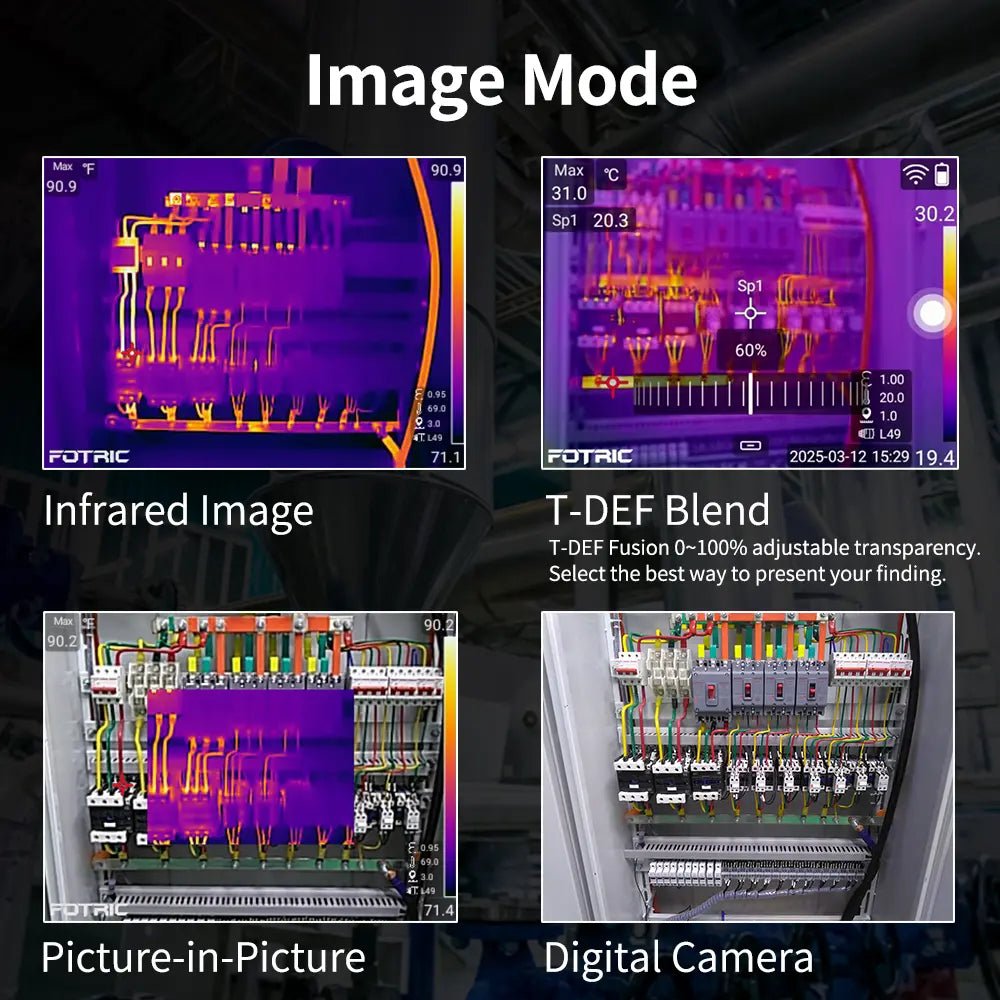

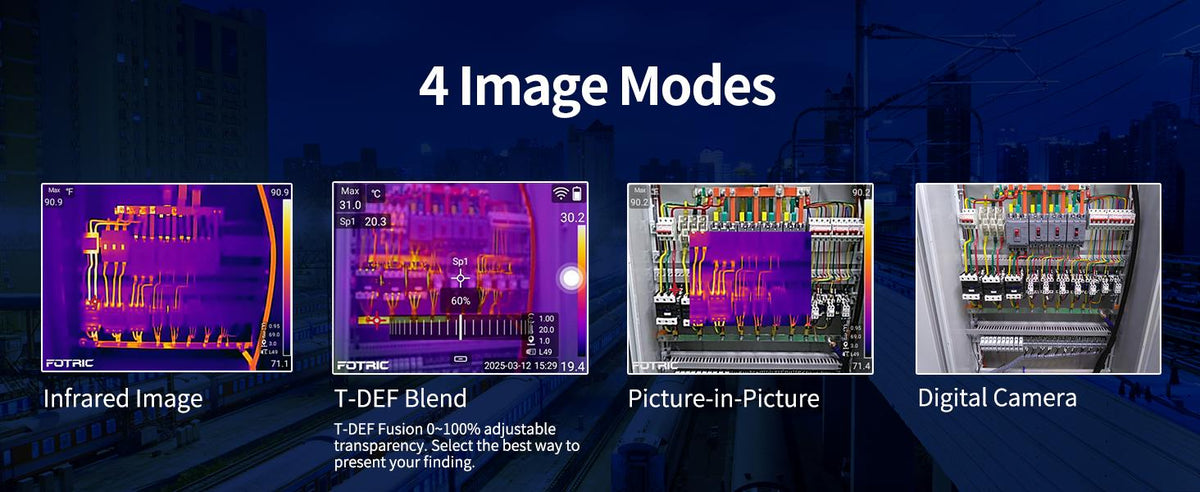

Image Modes
Thermal, Visible, PIP, T-DEF® Fusion
Temperature Rang
-20°C – 550°C
Accuracy
±2°C or ±2%
Display
3.5" touchscreen
Battery
5000 mAh Li-ion, ≥ 4 hours
Storage
32 GB TF card, expandable to 128 GB
Remote Display
WiFi to smartphone / tablet
Weight
800 g
Protection
IP54, 2 m drop
FAQ
FAQ
Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.
View All Support ResourcesWhat makes the 384×288 detector different from entry-level cameras?
110,592 genuine measurement pixels — about 40% more than 320×240 — each a direct sensor reading. Combined with a 17 μm ceramic-packaged detector and 40 mK thermal sensitivity, the TK6 captures finer thermal detail with lower noise, especially in low-contrast scenes where budget sensors struggle.
How does focus-free at 384×288 compare to manual focus?

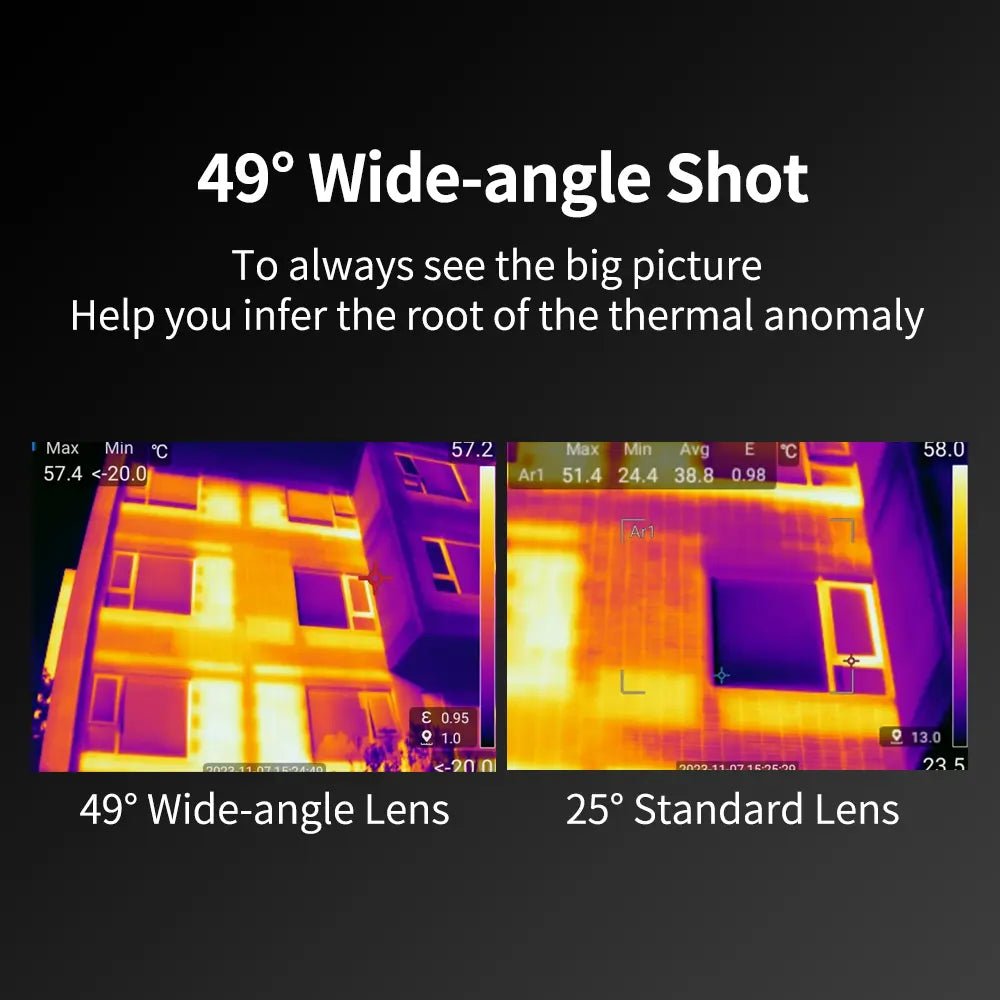

The TK7 pairs professional-grade 384×288 resolution with a focus-free 49°×37° wide-angle lens. You sweep large areas without touching a focus ring, and the resolution is high enough to catch anomalies that lower-res cameras miss. If your day is about coverage and speed moving between panels, ducts, and building envelopes — the TK7 workflow is faster without sacrificing image quality. For extreme close-up PCB work, the TK6's manual focus is the better fit.
What connectivity and remote control options does it have?
- Dual-band WiFi — stream live thermal images to a phone, tablet, or PC
- GPS geotagging — automatically tag each image with location data for route documentation
- EasyIR mobile app — remote control and image transfer from your phone
- IRExplorer web interface — control the camera from any browser, no software install needed

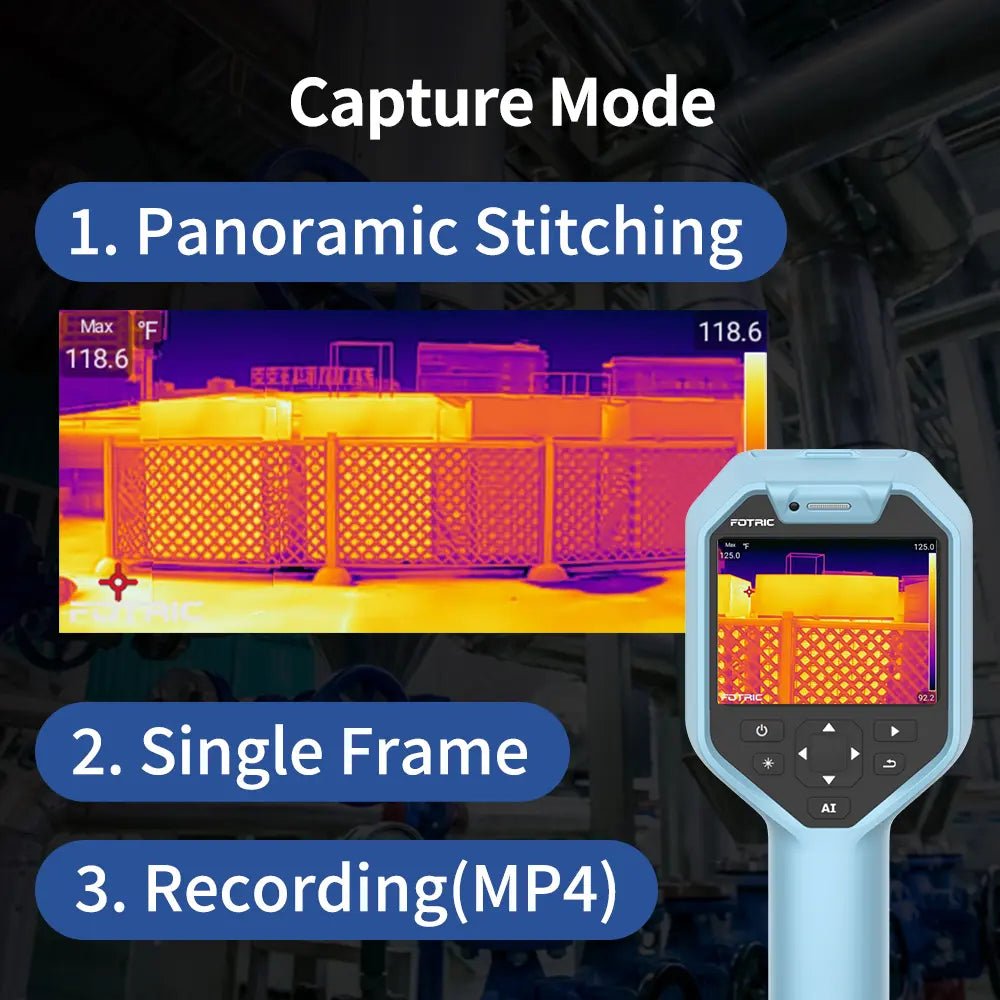

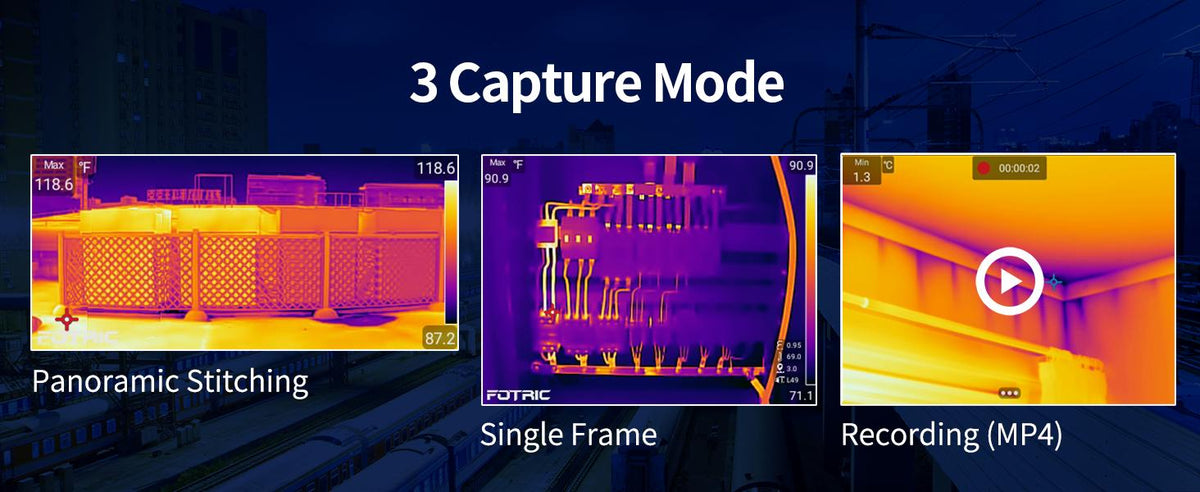

- Panoramic Stitching — scan large areas and stitch multiple frames into one wide thermal image
Can it record video, not just still images?
Yes — and this is a major differentiator. In addition to standard MP4, the TK7 records Radiometric Video in IRS/IRSX format, where every pixel in every frame stores full temperature data. Review any moment of the recording in AnalyzIR® Professional software — re-measure, adjust emissivity, or export frame-by-frame. This is essential for transient fault analysis: a breaker that trips for half a second, a bearing that spikes under load.
What battery setup does it come with?
The standard TK7 package includes TWO 5000 mAh field-replaceable lithium batteries — each providing 4+ hours of continuous operation. With both charged, you have a full workday covered without reaching for a power bank. Hot-swap in seconds on-site.
What advanced imaging technologies are built in?
Powered by an Android-based platform, the TK7 includes FOTRIC's full imaging stack:

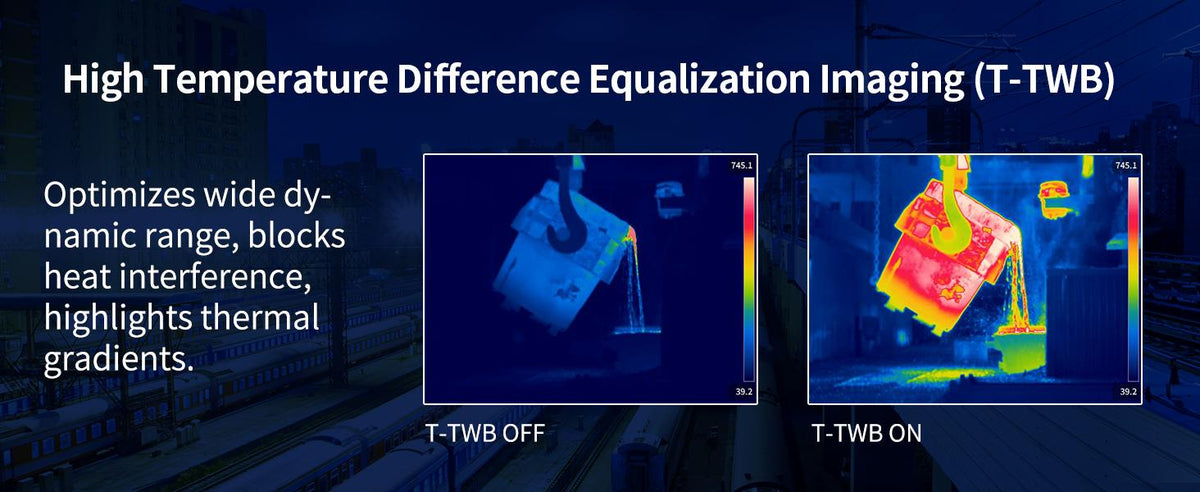

- T-TWB® — adaptive color mapping for scenes with large temperature differences
- IREdge — contour sharpening for clearer object definition
- T-DEF® Blend — thermal and 8 MP visual fusion, 0%–100% adjustable
- Super Resolution — software enhancement for even finer detail beyond native 384×288
